Micsig RCP Series Quick Manual

Operation steps Operation steps
1) Connect to the oscilloscope: Set the oscilloscope input impedance to 1MΩ,
connectthe probe BNC end to oscilloscope (make sure the oscilloscope is properly
grounded);
2) Power the probe: Use standard adapter to power the probe. Indicator light turns
greenafter power on;
3) Connect the DUT: make sure that the coil plug is inserted in place and the wire or
pin under test passes through the appropriate position of the coil.
4) Power up the DUT.
5) After test, disconnect the circuit first, then unplug the coil.
6) Disconnect probe power.
Warranty Warranty
1) Micsig warrants the main body of this current probe for 1 year. During the warranty
period, Micsig will be responsible for free maintenance for anyfailure caused by the
quality of the product under normal use.
2) Under the following circumstances, Micsig will refuse to provide maintenance
servicesor charge for a fee:
a.No packaging or anti-counterfeiting label.
b.Anti-counterfeit label has been altered or blurred beyond recognition.
c.Unauthorized disassembly, such as: changing wires, dismantling internal
components, etc.
d. No sales voucher or the content of sales voucher does not match the product.
Safety Precautions Safety Precautions
※ Please use within safe voltage range.
※ The equipment connected to the probe must be reliably grounded.
※ The outer skin of the Rogowski coil should be inspected before use. If it is
damaged,stop using it.
※ Before connecting the probe to the circuit under test, make sure the circuit
undertest is turned off.
※ Please use the adapter that comes standard with the probe.
Shenzhen Micsig Technology Co., Ltd.
Tel: +86-755-88600880 Email: sales@micsig.com
Add: A106, Huafeng Robot Industrial Park, Hangcheng Rd, Bao'an, Shenzhen,
Guangdong, China, 518126
Rogowski AC Current Probe -- RCP series Rogowski AC Current Probe -- RCP series
Quick Guide Quick Guide
Overview Overview

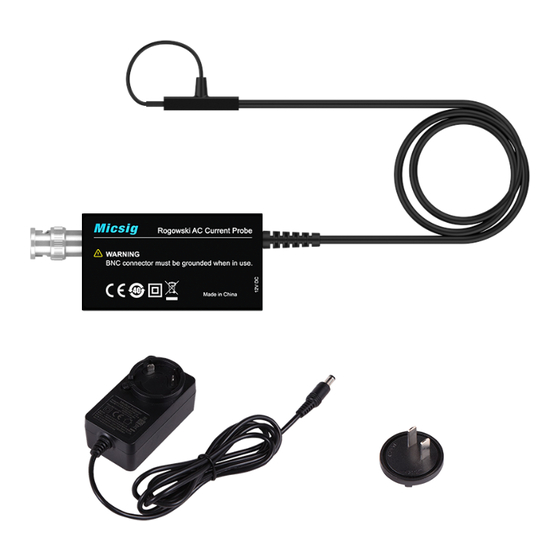

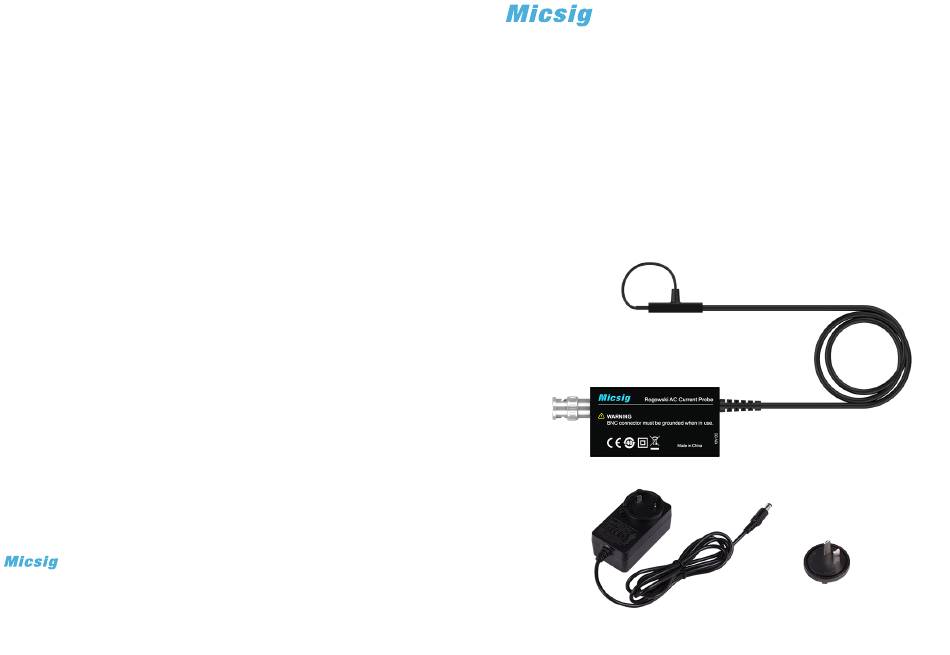

The RCP series Rogowski current probe measures AC currents up to
3000Apk, max. bandwidth up to 30 MHz, delivers 1% typical accuracy, able to
measure high-frequency, large current signals easily and accurately.
A 1.6mm thin, flexible, clip-around Rogowski coil allow user to conduct
measurements without damaging the conductor and have no interference to
the DUT.
