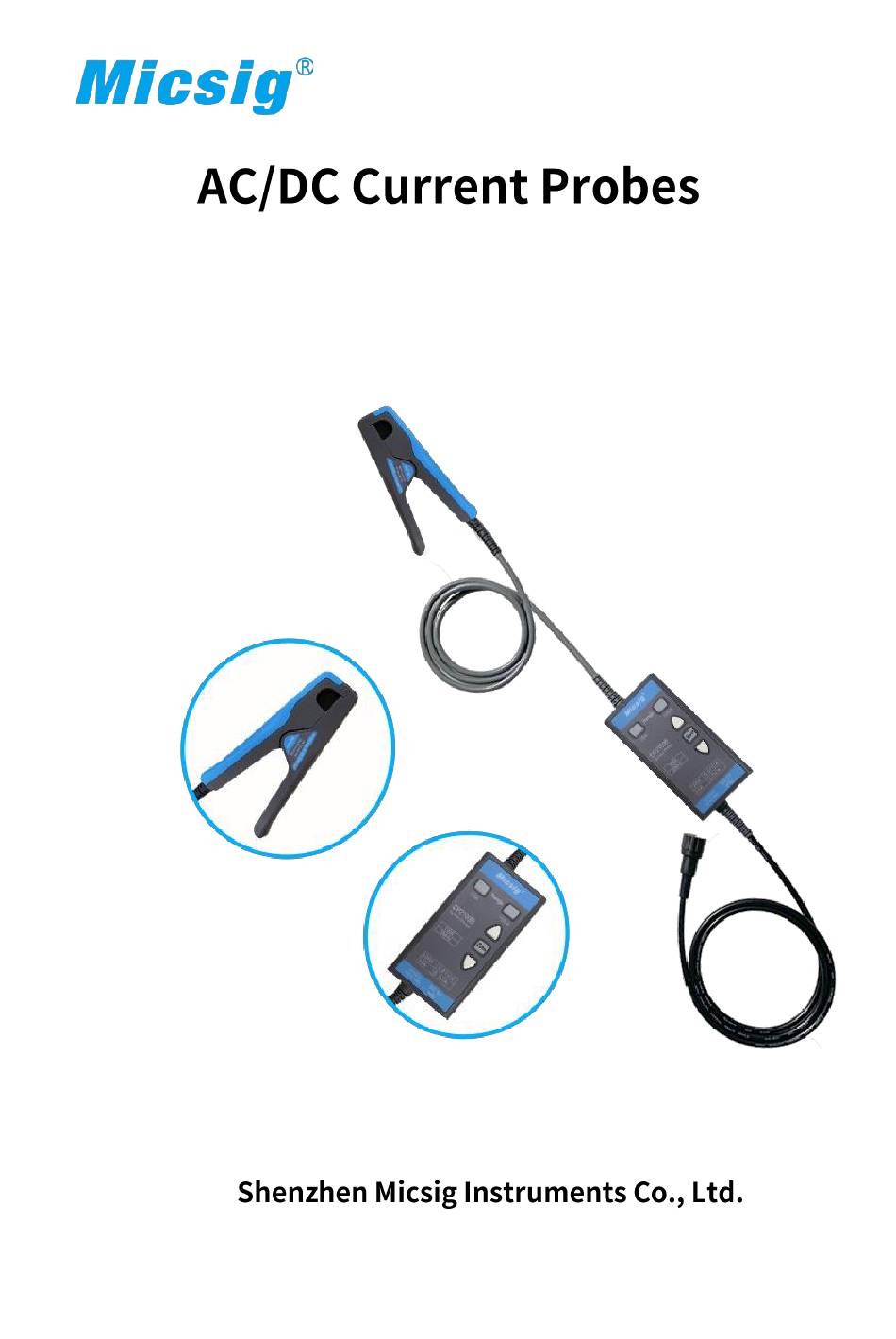

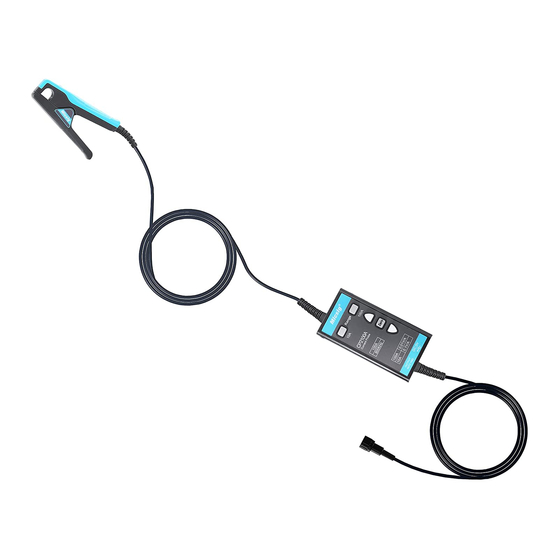

- Page 1 CP2100A/CP2100B...
- Page 2 The information provided in this document is provided "as is" and is subject to change in future versions without notice. In addition, to the maximum extent permitted by applicable laws, Micsig does not provide any express or implied guarantees for this manual and any information contained in it, including but not limited to implied guarantees for merchantability and suitability for specific purposes.
-
Page 3: Table Of Contents
Product Introduction ......................5 Appearance ..........................5 Specifications ........................6 Instructions ..........................9 Maintenance .......................... 9 3 / 10... - Page 4 Safety Precautions ➢ The measurable circuit should be CAT II 600V or below ➢ Do not measure bare conductors ➢ Do not touch the measured conductor and sensor head during measurement ➢ Do not use in a humid environment ➢ Do not touch the instrument or the measured object with wet hands ➢...
-
Page 5: Product Introduction
It uses a standard BNC interface and is suitable for oscilloscopes. It can also be used for multimeters via connector. The maximum current can be measured to 100Apk (70Arms); it has 2 models: CP2100A and CP2100B, CP2100A can measure bandwidth to DC 800KHz, CP2100B can measure bandwidth to DC 2MHz;... -
Page 6: Specifications
3. Specifications Model CP2100A CP2100B Bandwidth DC~800KHz DC~2MHz ≤437.5ns ≤140ns Rise time Range 10A/100A Output sensitivity 0.1V/A（10A） 0.01V/A（100A） DC accuracy (typical) 3%±50mA（10A） 4%±50mA（100A，500mA~40Apk） 15%（100A，40Apk~100Apk） ＜150ns（10A） Signal delay ＜200ns（100A） DC linearity (typical) typical on page 6 Measuring range 50mA~10Apk（10A） 1A~100Apk（100A） Maximum measuring current 100Apk，70.7Arms（DC+ACpk）... - Page 7 Maximum current VS Frequency curve Amplitude-frequency characteristic curve-CP2100A 7 / 10...
- Page 8 Amplitude-frequency characteristic curve-CP2100B DC signal linearity (0.01V/A) 8 / 10...
-
Page 9: Instructions
Micsig permission. Please keep the product dry, clean and tidy. If there is dirt, use a soft cloth or sponge with alcohol to wipe off the dirt. - Page 10 Shenzhen Micsig Instruments Co., Ltd. Tel: +86-755-88600880 Email:sales@micsig.com http://www.micsig.com 10 / 10...
