Micsig CP2100 Series User Manual

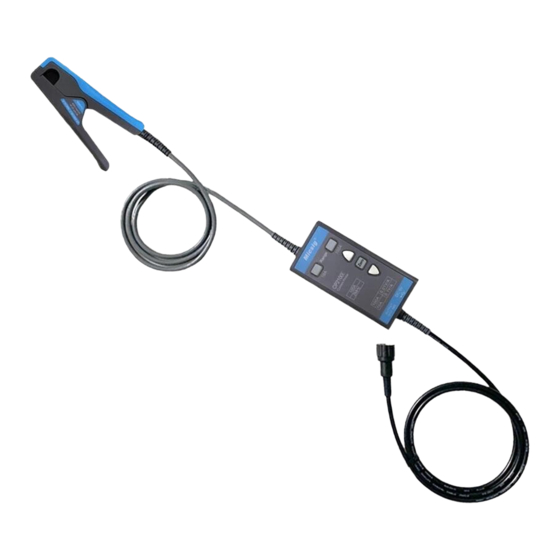

CP2100 Series AC/DC Current Probe

Product Introduction

The CP2100 series current probe is a BNC type that can measure both DC and AC. With split design and compact look,
it also can be connected to multimeters via connector. Automatic and manual zero adjustment, powered by USB, no
need additional power supply, making measurement more convenient, often used in motor drives, industrial frequency,
inverters, power supplies, avionics and other fields.

Safety Precautions

➢
The measurable circuit should be CAT II 600V or below
➢
Do not measure bare conductors
➢
Do not touch the measured conductor and sensor head during measurement
➢
Do not use in a humid environment
➢
Do not touch the instrument or the measured object with wet hands
➢
Please ground this product through the USB power cord
➢
Please use this product as required
User Manual

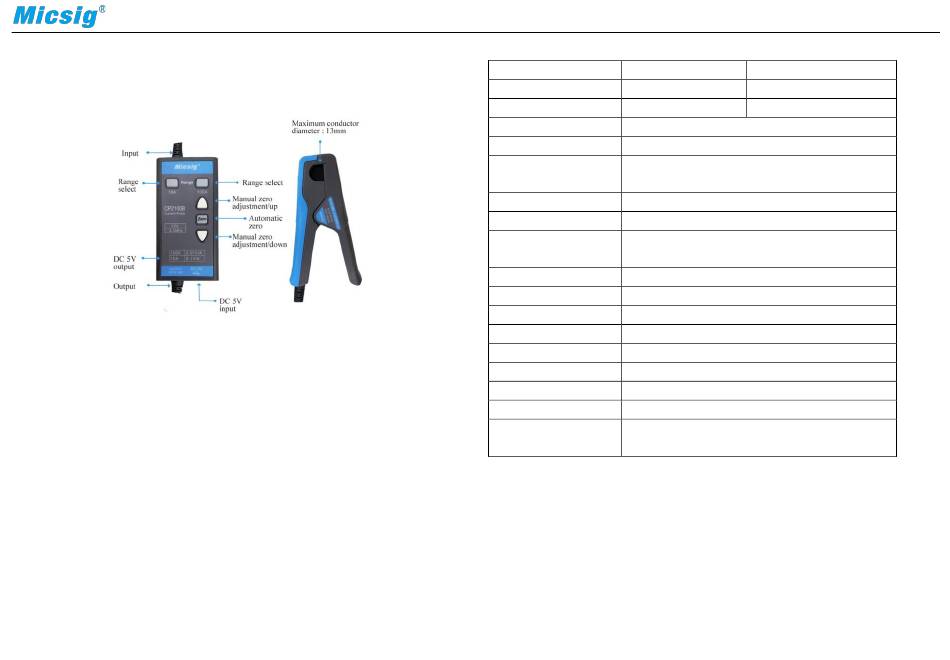

Specifications

Model CP2100A
Bandwidth DC~800KHz
Rise time ≤437.5ns
Range 10A/100A
Output sensitivity 0.1V/A（10A）;
DC accuracy (typical)
3%±50mA（10A）;
15%（100A，40Apk~100Apk）
＜150ns（10A）; ＜200ns（100A）
Signal delay
Measuring range 50mA~10Apk（10A）; 1A~100Apk（100A）
Max measurable current 100Apk，70.7Arms（DC+AC pk）
200Apk-pk，70.7Arms（AC）
Max working voltage CAT III 300V CAT II 600V
Max float voltage CAT III 300V CAT II 600V
Max conductor diameter 13mm
Overload indication The buzzer beeps and button light flashes
Supplied power DC 5V
Net weight 290g
Package weight 1000g
Operating temperature 0~40°C
Operating humidity 5%~95% (0~40℃, No condensation)
5%~65% (40℃~50℃, No condensation)

Operation Instructions

1. Connect BNC interface to the oscilloscope (or other instruments), then plug the USB cable to power the probe;
2. Select appropriate range according to current range, the corresponding button light will turn Green;
3. Adjust the oscilloscope settings: Input impedance 1MΩ; select probe to Current or display as A; Set attenuation
ratio on corresponding channel, 100A（0.01V/A）to 100X, range 10A（0.1V/A）to 10X；
4. Press Zero button to do zero calibration, after success, the buzzer will "beep" one time; if "beep" three times，
meaning zero calibration has failed; can also go Manual to adjustment. The external magnetic field may have
slight influence on the DC zero position, do not move it in a large range after zero adjustment is completed;
5. Clamp the conductor under test according to the direction indicated by the jaws. Note: If the measured current
USER MANUAL
CP2100B
DC~2.5MHz
≤140ns
0.01V/A（100A）
4%±50mA（100A，500mA~40Apk）
