Summary of Contents for EZ DUPE CFast Pantera

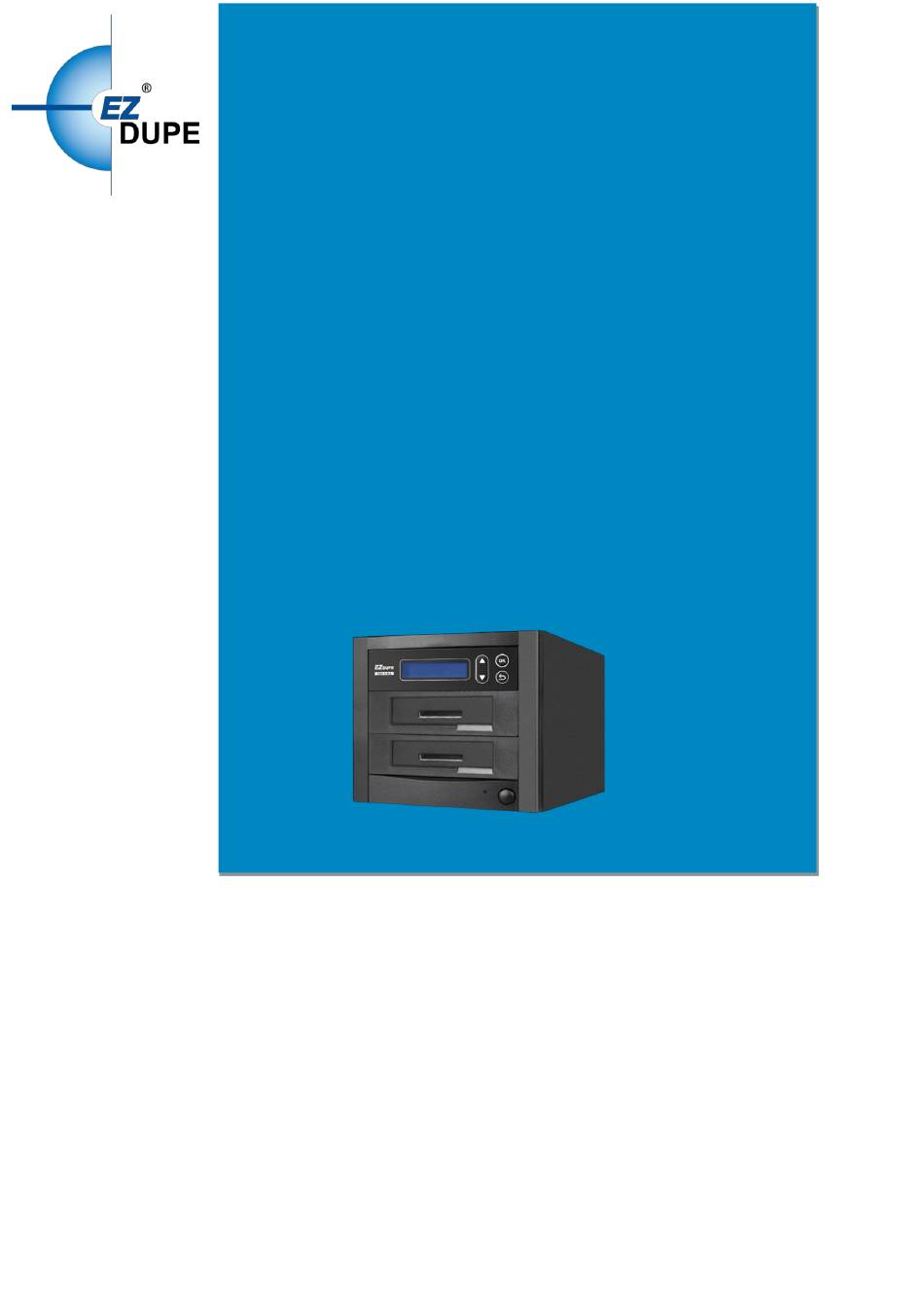

- Page 1 CFast Pantera User Manual Copyright © 2021. All rights reserved...
- Page 2 (deleting) of data. It has nothing to do with EZ Dupe if there is any mistake in correcting (deleting) the data by user. In addition, EZ Dupe is not responsible for the risks and data losses incurred as a result of duplication.
- Page 3 Before Use 1. Please read this manual carefully before operation to avoid any misconduct. 2. Make sure that the storage device you want to use is of good quality and can be used normally. 3. The capacity of target storage device must be greater than or equal to the capacity of source storage device to avoid incomplete data backup.
-
Page 4: Table Of Contents
INTRODUCTION ......................5 1. Features .........................5 2. Duplicator Introduction ....................6 3. Control Panel Overview....................7 4. Specifications .......................8 II. WARNING ........................8 III. OPERATION OVERVIEW ..................... 9 IV. MENU OVERVIEW ...................... 10 1. Copy ..........................10 2. Compare ........................10 3. Copy + Compare ......................10 4. - Page 5 5.14 System Update...................... 15 6. Setup ..........................16 Copy Area ......................16 Smaller Target ....................... 17 Unknown Format ....................17 Check Before Copy ....................17 HPA Set (Leopardo Only) ..................17 Set Slow Out Threshold ..................18 Set Format Type ....................18 Set Capacity Threshold ..................
-
Page 6: Introduction
I. Introduction This duplicator system is designed and developed based on the FPGA from the world famous semiconductor company XILINX. Every processing channel is parallel to each other with its own control unit, therefore the duplicator will not sacrifice speed for the increasing number of targets loaded - always remain the same and fast copy speed. -
Page 7: Duplicator Introduction
2. Duplicator Introduction The following picture shows the 1-24 HDD Duplicator as an example. The source HDD port is at the upper left corner for master disk, and the rest are the ports for target disks. It is the same for all other duplicators with various number of ports. The appearance of the duplicator may be changed without notice. -
Page 8: Control Panel Overview
3. Control Panel Overview ▲Button OK Button Back Button LCD Screen ▼Button ▲Button: Up, Backward: To navigate backward in the menu. ▼Button: Down, Forward: To navigate forward in the menu. OK Button: Enter, OK: Execute the function. Back Button: Escape, Cancel: Go back to the previous level in the menu. -
Page 9: Specifications
4. Specifications Operation Standalone (No PC or Software is required) 3, 7, 11, 13, 16, 24 Target Transfer Speed 150MB/s (Pantera) or 300MB/S (Leopard) Copy Mode Synchronous Copy Area File and System, Percentage, All Partition, and Whole Media, Supported SATA 1, 2, 3 HDD Media Windows：FAT16/32, exFAT, NTFS Supported File... -
Page 10: Operation Overview
III. Operation Overview The duplicator will start to execute a task after the source and target devices have been inserted and the OK button is pressed. The task will begin and end at the same time for all target devices. Any other target device plugged in during the process of a task will not be executed with the task. -
Page 11: Menu Overview
IV. Menu Overview 1. Copy To copy from source device to target device(s), please go to 6.1 Copy Area to select the setting first before this step. Copy：7 7.8G 1. Copy 1. Copy Source not ready Ready device: 7 10:15 (03) No source device Source and target devices inserted Display copy progress... -
Page 12: Capacity Check
4. Capacity Check This command allows to verify the device capacity. It can detect the actual capacity of devices within 3 seconds. 4. Capacity Check Check：8 Result: Ready device: 8 00:00 (00) Wait Pass：8 Fail：0 Source and target devices inserted Display progress status Final result 5. -
Page 13: Capacity Check + Format
5.3 Capacity Check + Format It will format the target devices to the file format according to the system Setup (please refer to 6.7 Set Format Type), then sort out target devices based on the capacity threshold (please refer to 6.8 Set Capacity Threshold). Duplicator will display the target device which is not in the capacity range and its red LED will flash. -
Page 14: Full Erase
5.6 Full Erase This option completely erases the content of target device. It takes longer time to erase and the content will not be retrieved by software. F_Erase：7 [Utility] Sure to erase? 6. Full Erase 00:10 (02) Use ▲or ▼ to select option Display progress status Result: 10:20 Pass：7... -
Page 15: Secure Erase (Leopardo Only)
5.9 Secure Erase (Leopardo Only) The Secure Erase is dedicated to erasing SSD. It resets all its storage cells as empty - restoring the SSD to factory default settings and write performance. Secure Erase is recognized by the US National Institute for Standards and Technology (NIST), as an effective and secure way to meet legal requirements data sanitization attacks against up to laboratory level. -
Page 16: Device Model
[Utility] [# 0] Port # Total 60.0G Capacity 11. Media Information FAT32 File Format Data Use ▲or ▼ to select device 5.12 Device Model This option displays the model information of selected device, such as device model, serial information and firmware version. [# 1] P: 1 [Utility]... -
Page 17: Setup
6. Setup 6.1 Copy Area This option allows to select the area on the source device to copy onto the target devices. You may select System and Files to skip all the unoccupied area on the source device or Percentage、All Partition、Whole Media. -
Page 18: Smaller Target
6.2 Smaller Target If the capacity of the target device is smaller than the source device, the duplicator will partly copy or cannot copy. Cannot Copy is the default setting. [Smaller Target] [Setup] 2. Smaller Target Cannot Copy Use ▲or ▼ to select 6.3 Unknown Format This option allows you to Copy or Skip unknown format. -
Page 19: Set Slow Out Threshold
Skip (default) Copy data from source to target except data stored in HPA and keep the target HPA setting during Copy. Clear Target HPA without Copy Copy data from source to target and remove the target HPA setting during Copy Set Target HPA without Copy Copy data from source to target and set the target HDD the same HPA setting as the source HDD during Copy. -
Page 20: Set Capacity Threshold
Command 5.3 Capacity Check + Format under the main menu. The options are FAT32, exFAT, and Depends on Size. The default setting is Depends on Size. [Setup] [Set Format Type] 6.Setup 7. Set Format Type Depends on Size [Set Format Type] FAT32 Set Capacity Threshold This function allows to set up the capacity threshold for Command 5.3 Capacity Check+... -
Page 21: Start-Up Menu
devices with highest copy speed and lowest copy speed and their copy progress respectively. [Setup] [Display Mode] 9. Display Mode Basic Use ▲or ▼ to select Copy：1 number of target 2.5G：data to be copied Copy：1 2.5G P：number of passed copies P：0 F：0 F：number of failed copies Basic Mode... -
Page 22: Show Result Time
[Setup] [Button Beep] 11. Button Beep Button & Warning Use ▲or ▼ to select 6.12 Show Result Time This option allows to enable or disable the display of copy time after finishing the copy process. The default setting is Enable. [Show Result Time] [Setup] 12. -
Page 23: Clear Setup
[Setup] [Language] 15. Language Englis Use ▲or ▼ to select 6.16 Clear Setup This option resets the duplicator back to factory default settings. Clear parameter to default? Clear parameter to default? [Setup] All Parameters were cleared! 16. Clear Setup Use ▲or ▼ to select 6.17 Performance This option allows to set up the performance for Copy function based on the following modes: Speed, Balance, and Compatibility. -
Page 24: Troubleshooting
When the duplicator malfunctions or you have questions about using the duplicator, you can first check the following related problems and eliminate them. If you still have problems, you can contact the EZ Dupe technical support department. The contact information is listed at www.ezdupe.com. - Page 25 The copy speed depends on the writing speed of the media device. When the writing speed of the media device is slow, the copy speed becomes slow. 2. There may be a slower media device in the batch of media. Remove it (press the up and down keys at the same time to remove the slowest media device during copy process) to speed up.
