Summary of Contents for EZ DUPE Mini USB Pro

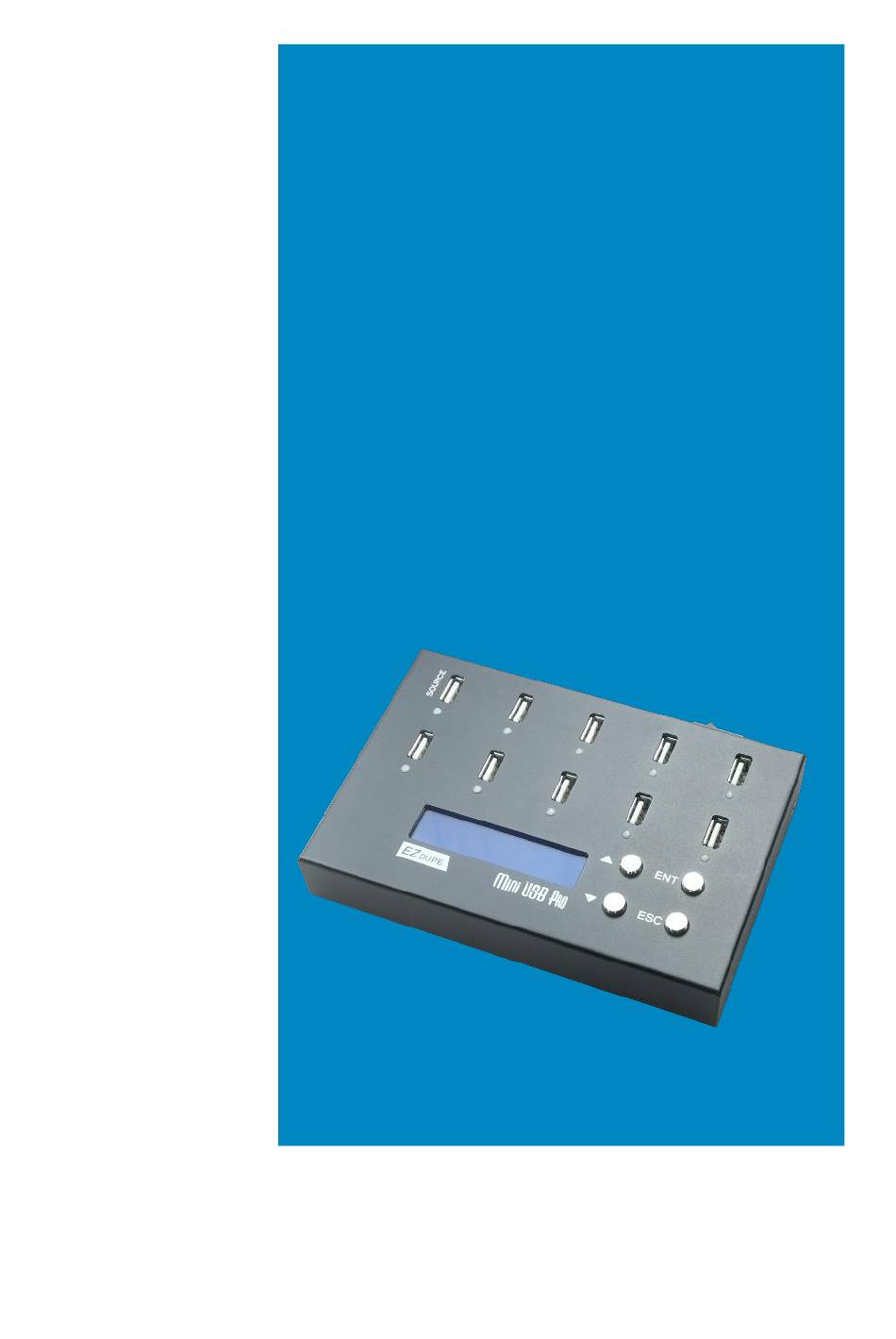

- Page 1 Copyright © 2019. All right reserved. Mini USB P Duplicator User Manual Content...
-
Page 2: Table Of Contents
I. Introduction ........................Features ............................2 ControlPanelOverview ....................... 3 Specifications ..........................4 II. Warning .......................... III. Asynchronous Operation .................... IV. Menu Overview ......................Copy ............................. 6 Compare ............................6 Utility ............................7 3.1 FormatFAT32 ..........................7 3.2 Format exFAT ..........................7 3.3 QuickErase .......................... -
Page 3: Introduction
I. Introduction This duplicator system is designed and developed based on the FPGA from the world famous semiconductor company XILINX. Every processing port is parallel to each other with its own control unit, therefore the duplicator will not sacrifice speed for the increasing number of targets loaded - always remain the same and fast copy speed. -
Page 4: Controlpaneloverview
2. Control Panel Overview ▲ Button ENT Button ESC Button ▼ Button 2-linebacklitLCD creen Button ▲ Button: Up, Backward ▼ Button: Down, Forward ENT Button: Enter, OK ESC Button: Escape, Cancel... -
Page 5: Specifications
Specifications Operation Standalone (No PC or Software is required) Target 35 MB/S Copy Speed Copy Mode Asynchronous Copy Area System and Files (Intelligent Copy) USB Flash Drive 1.1/ 2.0/ 3.0/ 3.1 Supported Media Display 2-line Backlit Monochrome LCD Supported Format FAT16,FAT32,exFAT,NTFS,ext2/3/4(Linux),HFS/HFS+(Mac) System Memory 128 MB DDR3... -
Page 6: Asynchronous Operation
III. Asynchronous Operation Asynchronous Operation is designed for the duplicator. It means that the duplicator will read the data from source device into system memory buffer and start to execute a task immediately when target device(s) inserted. Duplicator does not have to wait for all target device(s) inserted in order to start the execution of the task at the same time. -
Page 7: Menu Overview
IV. Menu Overview 1. Copy To copy from source device to target device(s) bit by bit and only copy available data area. When the source device reads fail, all target devices stop copying. When one of the target devices writes fail, it will stop copying. 1. -
Page 8: Utility
3. Utility 3.1 Format FAT32 This option allows to format the target device to FAT32 file format. It will not format the source device, avoiding accidently erasing the original data content. [Utility] Sure to format? Format：0 1. Format FAT32 00:00 Wait Wait for target devices Result:... -
Page 9: Full Erase
3.4 Full Erase This option completely erases the content of target device. [Utility] Sure to erase? F_Erase：0 4. Full Erase 00:00 Wait Wait for target devices Result: F_Erase：0 Pass：4 Fail：0 01:00 100% 3.5 Media Information This option displays the information of selected device media, such as total capacity, file format and the size of data content. -
Page 10: Systemupdate
3.8 System Update This option allows user to update the firmware of duplicator when necessary. Please obtain the proper firmware file from manufacturer, and save the unzipped file under home folder on the flash device (DO NOT save the file under sub folder). Insert the flash device containing the firmware into the source port of duplicator and press ENT.
