EZ DUPE hdmini User Manual

Hard disk drive duplicator
Hide thumbs Also See for hdmini:
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright
2016. All right reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the hdmini and is the answer not in the manual?

Questions and answers

Related Manuals for EZ DUPE hdmini

Summary of Contents for EZ DUPE hdmini

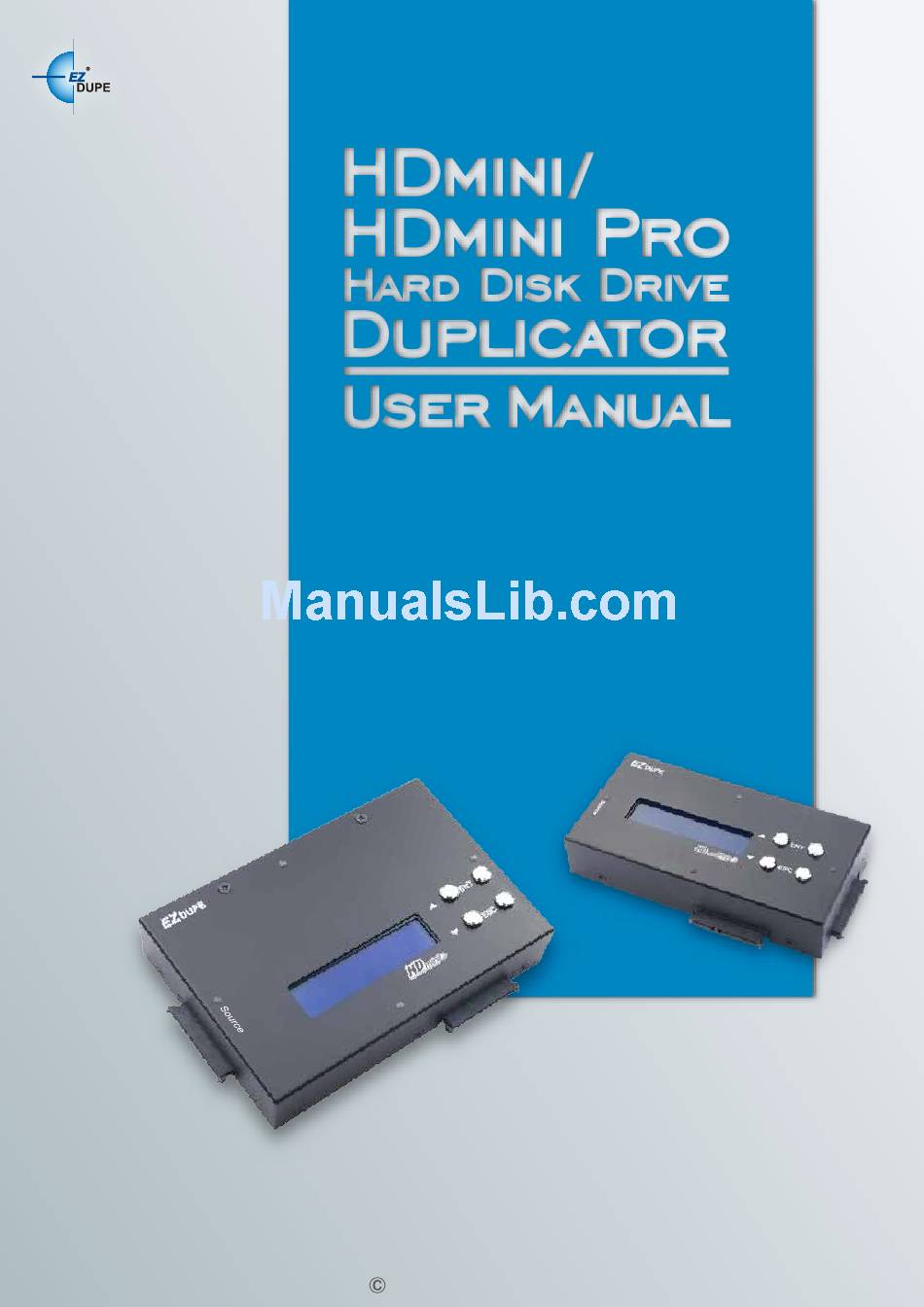

  • Page 1 Copyright 2016. All right reserved...

  • Page 2: Table Of Contents

    INTRODUCTION......................3 1. Features ................................3 2. Control Panel Overview ..........................4 3. Specifications ............................... 5 II. WARNING ........................5 III. MENU OVERVIEW ......................6 1. Copy ................................6 2. Compare ................................. 6 3. Copy + Compare ............................6 4. Capacity Check ............................. 7 5.
  • Page 3 6.2. Smaller Target ..............................12 6.3. Unknown Format ............................12 6.4. Check Before Copy ............................12 6.5. Display Mode ..............................13 6.6. Start-up Menu ..............................13 6.7. Button Beep ..............................14 6.8. Show Result Time ............................14 6.9. Boot Password .............................. 14 Setup Password ............................

  • Page 4: Introduction

    I. Introduction This duplicator system is designed and developed based on the FPGA from the world famous semiconductor company XILINX. Every processing channel is parallel to each other with its own control unit, therefore the duplicator will not sacrifice speed for the increasing number of targets loaded - always remain the same and intelligent copy speed.

  • Page 5: Control Panel Overview

    m. With over-voltage protection the duplicator system shuts down power supply automatically to protect hard disk drive from damage when the power supply is unstable. 2. Control Panel Overview ▲Button ENT Button ESC Button ▼Button LCD Screen ▲Button: Up, Backward: To navigate backward in the menu. ▼Button: Down, Forward: To navigate forward in the menu.

  • Page 6: Specifications

    3. Specifications Operation Standalone (No PC or Software is required) Target 1, 2, 3 Copy Speed 150 or 300 MB/s, depends on model Copy Area Whole Media, System and Files (Intelligent Copy) Supported 2.5” and 3.5” SATA HDD/SSD Media Windows：FAT16/32, exFAT, NTFS Supported File Systems Linux：ext2/3/4...

  • Page 7: Menu Overview

    It is strongly recommended that the capacities of the source and target media are equal or similar. III. Menu Overview 1. Copy To copy from source device to target device(s), please go to 6.1 Copy Area to select the setting first before this step. 1.

  • Page 8: Capacity Check

    4. Capacity Check This command allows to verify the device capacity. It can detect the actual capacity of devices within 3 seconds. 4. Capacity Check Check：8 Result: P：0 F：0 Ready device: 8 Pass：8 Fail：0 Source and target devices inserted Display progress status Final result 5.

  • Page 9: Measure Speed

    5.3. Measure Speed This option allows to measure the actual Read and Write speed of the target device. This option will NOT alter or erase existing data on the target device. [Utility] [# 0] Read 120M [# 1] Read 121M 3.

  • Page 10: Dod Erase

    5.6. DoD Erase This is to comply with the U.S.A. Department of Defense (DoD 5220) standard to fully erase the media by rewriting bit by bit three times to guarantee the data to be permanently deleted. It takes the longest time to erase, and the content will not be retrieved by software.

  • Page 11: Device Model

    5.9. Device Model This option displays the model information of selected device, such as device model, serial information and firmware version. [Utility] [# 0] P: 0 [# 1] P: 1 9. Device Model Model information Model information 5.10. System Information This option displays general information of the duplicator, including controller model, system memory size, firmware version and number of targets [Utility]...

  • Page 12: Setup

    6. Setup 6.1. Copy Area This option allows to select the area on the source device to copy onto the target devices. You may select either “System and Files” to skip all the unoccupied area on the source device or “Whole Media”. By default, the copy area is set up as System and Files.

  • Page 13: Smaller Target

    6.2. Smaller Target If the capacity of the target device is smaller than the source device, the duplicator will partly copy or cannot copy. Cannot Copy is the default setting. [Smaller Target] [Setup] 3. Smaller Target Partly Copy Use ▲or ▼ to select 6.3.

  • Page 14: Display Mode

    6.5. Display Mode There are three display modes: Basic, Show Timer, and Expert. Basic Mode shows the copy progress in general; Show Timer Mode displays the time used for the task; Expert Mode shows the devices with highest copy speed and lowest copy speed and their copy progress respectively.

  • Page 15: Button Beep

    6.7. Button Beep This option allows to set up button sound from the following options: Button & Warning, OFF, Warning only. The default setting is Button & Warning. [Setup] [Button Beep] 8. Button Beep Button & Warning Use ▲or ▼ to select 6.8.

  • Page 16: Language

    6.11. Language This option allows to choose the language for display: English, Spanish, Portuguese, and Japanese. English is the default language. [Setup] [Language] 12. Language Englis Use ▲or ▼ to select 6.12. Clear Setup This option resets the duplicator back to factory default settings. Clear Parameter To Default? Clear Parameter To Default? [Setup]...

This manual is also suitable for:

Hdmini pro
