Summary of Contents for EZ DUPE Media Maven

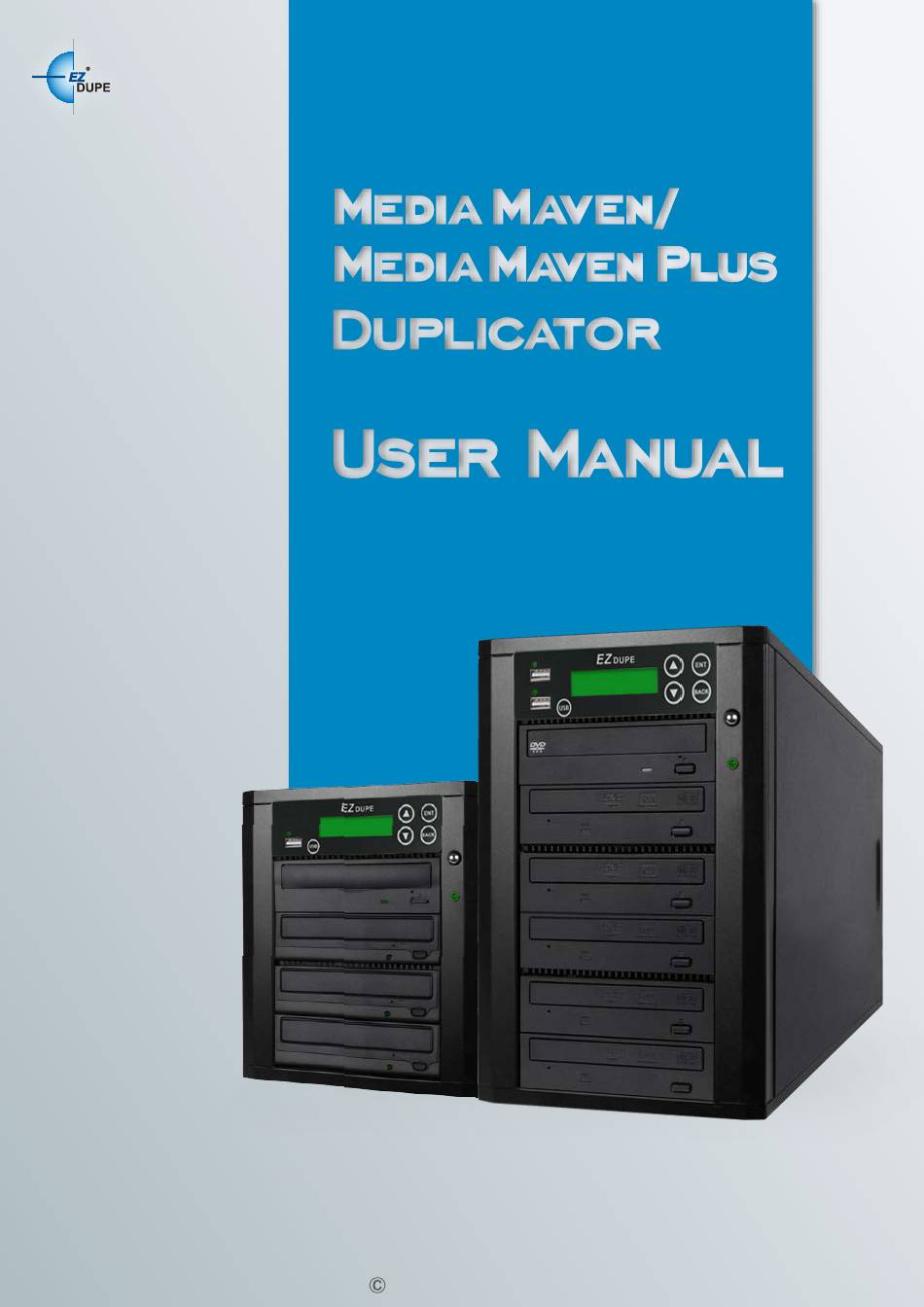

- Page 1 Copyright 2015. All right reserved...
-
Page 2: Table Of Contents
INTRODUCTION ..................3 Features ..........................3 LCD Front Panel Overview....................3 II. WARNING ....................6 III. MENU OVERVIEW ................... 6 Copy ............................6 Disc to Disc .......................... 6 USB to Disc .......................... 7 Disc to USB .......................... 7 USB to USB .......................... 8 Test ............................ - Page 3 Reader Speed ........................16 11.6 Compare Speed ........................ 16 11.7 Skip Read Error ........................ 16 11.8 Language ..........................17 11.9 Clear Setup ........................17 11.10 Advance Setup ......................17 11.11 HDD Manager ......................... 21 Select Image ........................21 12.1 Disc => Image ........................21 12.2 Image Information ......................
-
Page 4: Introduction

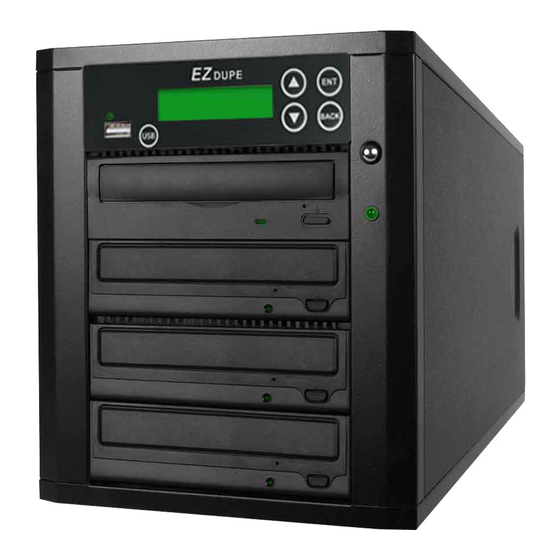

USB shortcut button, the Media Maven/Media Maven Plus Duplicator provides a fast and reliable solution for CD, DVD and Blu-ray duplication up to 11 targets (10 targets for Media Maven Plus) from one single source disc or USB flash drive. - Page 5 Media Maven Plus: ▼Button: Down, Forward: To navigate forward in the menu. ▲Button: Up, Backward: To navigate backward in the menu. ENT Button: Enter, OK: Execute the function. ESC Button: Escape, Cancel: Go back to the previous level in the menu.
- Page 6 Specifications Model Media Maven or Media Maven PLUS Media Maven：up to 11 target Media Maven PLUS：up to 10 Target (USB port excluded) Standalone(No PC or Software is required) Operation DVD ROM, DVD-R, DVD-RW, DVD+R, Supported Format DVD+RW, CD-DA, CD ROM, CD-R, CD-RW,...
-
Page 7: Warning
III. Menu Overview 1. Copy There are four (4) copy modes: 1. Disc to Disc; 2. USB to Disc; 3. Disc to USB; 4. USB to USB (3 and 4 only available on Media Maven Plus model). 1. Copy [ Copy ] [ Copy ] # 0 : No Disc =>... -
Page 8: Usb To Disc
306M: data copied to the present disc so far 1.3 Disc to USB This function is only available on the Media Maven Plus model. It will copy from the source Blu-ray/DVD/CD disc to a USB drive. Supported file system formats are FAT16, FAT32 and exFAT. The original data content in the USB drive will not be erased. -
Page 9: Usb To Usb
Mac HFS/HFS+. Note: 1. This function is only available on the Media Maven Plus model. 2. The original data content of target USB drive will be erased after the copy process. Please make sure the data can be erased before copy. -
Page 10: Copy + Compare
Note: The verification process uses a Disc Readability Check to individually check the presence of data on each copy. This process does not compare the contents of duplicated discs against that of the source. It only verifies that the duplicated discs are readable. 4. -
Page 11: Set Burn Speed
7. Set Burn Speed This command allows to set the burn speed for various types of disc: CDs (data and VCDs), audio CDs, DVDs, dual-layer DVDs (DVD DL), and Blu-ray (BD-R SL, BD-R DL, BD-RE SL, and BD-RE DL). Selectable burn speeds: CD: 1, 2, 4, 8, 10, 12, 16, 20, 24, 32, 36, (default), 44, 48, 50, 52, 56, MAX. -
Page 12: Close Disc
[ + ] tracks selected [ + ] C : D Length + E/12 Length A：present track C：total number of tracks selected B：total tracks D：list of tracks selected E：the present track selected [ Track Edit ] [ + ] none [ + ] 1 : 1 1. -
Page 13: Utility
10. Utility 10.1 PreScan It will pre-scan the source disc and verify the integrity and quality of the source disc. Execute this function before the copy process starts, it will ensure the source disc can be copied in the duplicator if the result is passed. [ Utility ] PreScan 512M... -
Page 14: Drive Information
[Utility ] [ 1 ] [ 2 ] 4Tracks 5. Disc Information FAT32 3523M Audio CD 114M Press ▲▼ to select the disc 10.6 Drive Information Checks the make, model, and firmware of the drive(s) that are built in and connected to the duplicator controller ports. -
Page 15: Copy Counter
10.9 Copy Counter It keeps track of the numbers of successful and failed copies made by the duplicator for CDs and DVDs. There are three options: Show Count (to display current copy counter), Enable Counter (to turn the counter on or off) and Clear Counter (to clear counter). -
Page 16: Auto Start
11.2 Auto Start It sets the amount of time before the duplicator automatically start the selected command, ranging from (no auto start) to 120 seconds. [ Setup ] [ Auto Start ] 11. Setup 2. Auto Start Time : OFF Press ▲▼... -
Page 17: Reader Speed
Eject Targets Only: Duplicator will only eject target drive trays. Eject Source Only: Duplicator will only eject source drive trays. [ Setup ] 11. Setup [ Power on Eject ] 5. Power on Eject Eject All Discs Press ▲▼ to select option 11.6 Reader Speed Sets the reader speed for the duplicator to read the source disc(s). -
Page 18: Language
11.9 Language Selects the language for the display. Available languages are: English (default), Spanish, Portuguese, and Japanese. [ Setup ] [ Language ] 11. Setup 9. Language English Press ▲▼ to select language 11.10 Clear Setup Resets the duplicator back to factory default settings. [ Setup ] Clear Parameter To Default? Clear Parameter To Default? - Page 19 duplicator system. If Disable is selected, no password will be set and the display will go back to the Setup sub-menu. If Enable is selected, a password must be entered using the following guide lines: use ▲▼ to select the character desired.
- Page 20 11.11.6 Copy UPC/ISRC Allows to copy the UPC/ISRC on the source disc to the target disc(s). [ Advance Setup ] [ Setup ] [ Copy UPC/ISRC ] 6. Copy UPC/ISRC Disable 11. Advance Setup Press ▲▼ to select setting 11.11.7 Copy CD+G Allows to copy CD+G files on the source disc to the target disc(s).
- Page 21 Optimization: Duplicator will automatically generate an optimized place and burn the break point. [ Advance Setup ] [ Setup ] [ L0 Break Point ] 10. L0 Break Point By Source 11. Advance Setup Press ▲▼ to select setting 11.11.11 Show Result Time Allows to show the total result time on display.
-
Page 22: Hdd Manager
12. HDD Manager This command is for the management of the hard disk drive (HDD) installed in the duplicator. Note: This feature is only available on duplicators with a HDD installed. If there is no HDD present in the duplicator, this feature will NOT show in the menu of commands. -
Page 23: Rename Image
12.4 Rename Image Renames the image instead of using default file names (such as IMG_0001, IMG_0002, etc.). Up to 8 characters. [ HDD Manager ] [Rename Image ] [IMG_0001 ] 4. Rename Image 1. IMG_0001> 702M ==> I Press▲▼to change character, press ENT to select [IMG_0001 ] Rename Image is finished... -
Page 24: Hdd Setup
12.8 HDD Setup 12.8.1 Load and Copy There are three (3) options in this function: OFF, Synchronous, and Load First. OFF: Disables the load and copy function. No temporary image is loaded to the HDD during the copy process. Load First: Completes loading of the image to the HDD then automatically starts the copy process from the image stored on the HDD to all target disc(s). -
Page 25: Iv.basic Troubleshooting
IV. Basic Troubleshooting Follow these simple steps for quick and proper troubleshooting. 1: Power does not turn on or unit receives no power. a. Check power cord and outlet to make sure power connections are secured. b. Check voltage switch on the back of the duplicator to make sure power supply is set for correct outlet rating. - Page 26 a. The duplicator may be busy. Buttons pressed while the duplicator is processing will not perform functions unless otherwise specified. b. Possible faulty button. Contact our technical support department for further information. 6: One of the drives does not open and/or LED does not light up a.
