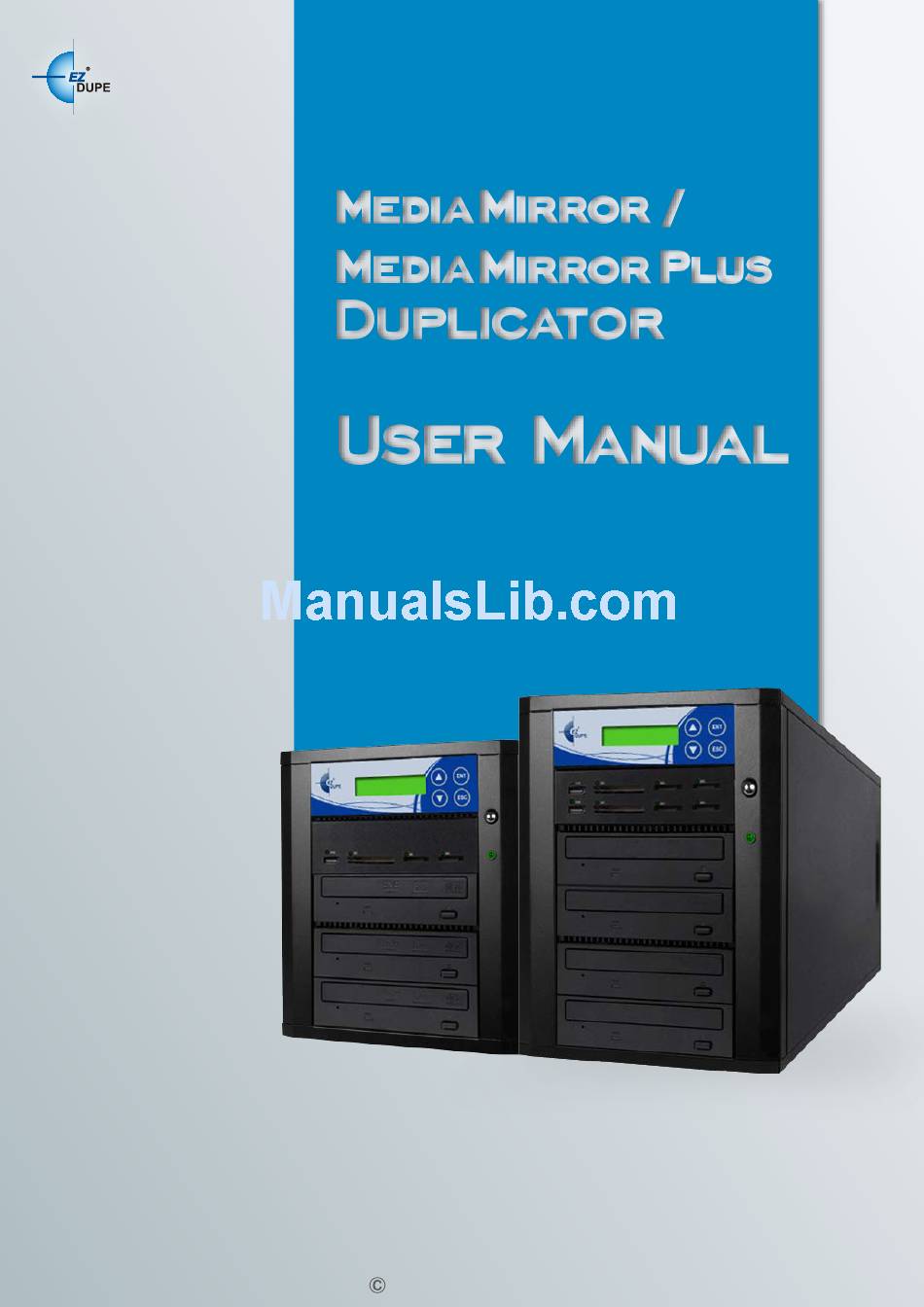

- Page 1 Copyright 2015. All right reserved...
-
Page 2: Table Of Contents
INTRODUCTION ..................2 Features ..........................2 LCD and Front Panel Overview ................... 2 Specifications ........................4 WARNING ..................... 5 III. MENU ....................5 Disc to Disc ..........................5 Copy ............................5 Copy + Compare ......................... 5 Source Select ........................6 Flash to Disc........................... -
Page 3: Introduction

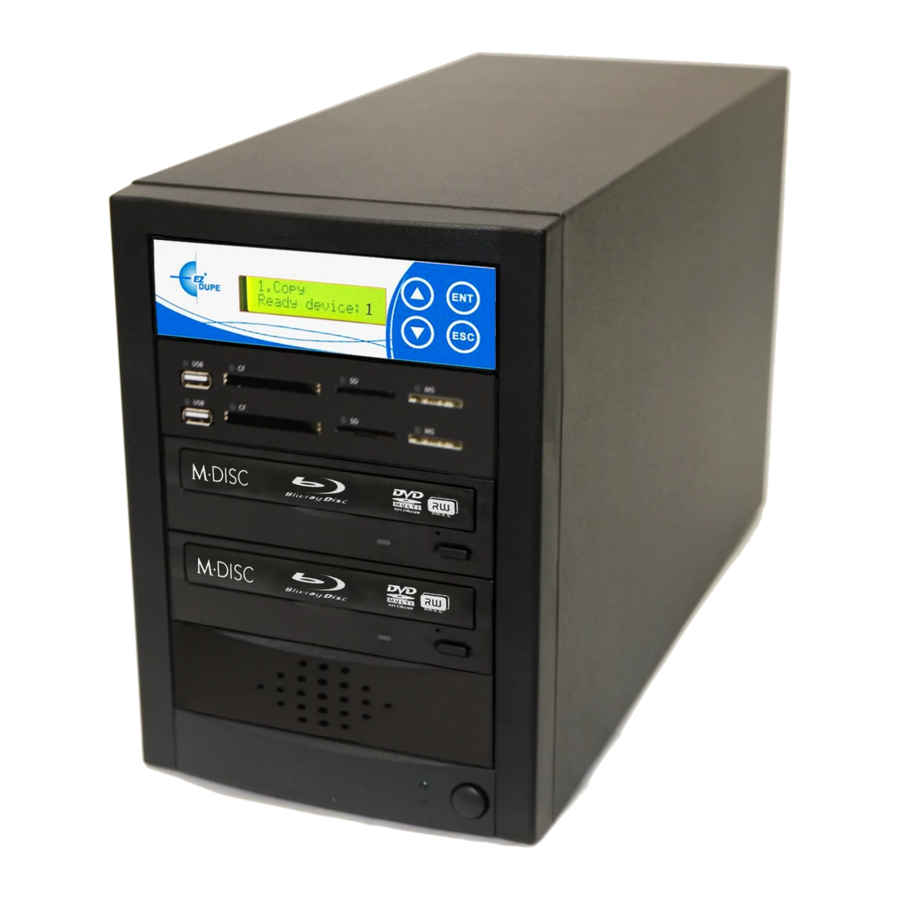

I. Introduction The Media-Mirror/Media-Mirror-Plus Backup System is a multiple-purpose duplicator which can copy from CD/DVD/Blu-ray disc to CD/DVD/Blu-ray disc, multiple USB/memory cards to one CD/DVD/Blu-ray disc, and backup one larger size USB/Memory card into proper number of CD/DVD/Blu-ray discs. Furthermore, Media-Mirror-Plus series include additional USB/Memory card slots that allow you to copy directly from one USB/Memory card to the other USB/Memory card, featuring “Data Appending”... - Page 4 Front panel with USB/Memory card interface is illustrated below. Media-Mirror Duplicator: Use only one of the USB, CF, SD or MS slots as the source for duplication. Do not plug in 2 or more USB and memory cards as source at the same time. Media-Mirror-Plus Duplicator: Use only one of the USB, CF, SD or MS slots on the top row as the source and one of the slots at the 2nd row below as target for duplication.
-
Page 5: Specifications
Specifications Media-Mirror/Media-Mirror-Plus Duplicator Model SATA (Serial ATA) Internal Interface Standalone (No PC or Software is required) Operation MS Slot: MS, MS-Duo, MS Pro, MS Pro Duo, MS MagicGate, MS Pro MagicGate, MS-Duo MagicGate, MS Pro Duo MagicGate CF Slot: CF I, CFII, Micro Drive SD Slot: SD, SD Pro, Mini SD*, Mini SD Pro*, Micro SD*, SD HS,WI-FI SD, Super HS SD SDXC SDHC (*Adapter Required) -
Page 6: Warning
II. Warning The Green LED flashes during the execution process of task. After the task is done, the Green LED will stay solid if the process is successful, otherwise the Red LED will be on if the process is failed. DO NOT turn off the duplicator machine when the task is under process. -
Page 7: Source Select
1.3 Source Select This function allows user to change the source drive to any drive including the Hard Disk Drive (HDD) if it is installed. Selectable source: First Drive (default): Choose the first device plugged as source. HDD: Choose the Hard Disk Drive as source if installed. [D# 1] Port: 1: Choose port #1 or any other port as source. -
Page 8: Multi Session
put in another blank CD disc and close the tray, then press “ENT” key to continue the copy process. 2. Flash to Disc [Flash to Disc ] Need CD Disc 1. Copy 376M =>D1 Continue Press ENT to confirm Write 1/3 376M Write 1/3 376M... -
Page 9: Set Span Mode
Press ▲▼ to select option Press ENT to confirm 3. Disc to Flash This function is only available on the Media Mirror Plus model. It will copy from CD/DVD/BD disc to a USB drive or flash memory card. 3. Disc to Flash... -
Page 10: Copy Disk Data
Original contents will be erased from the target. b. Support all file system formats. 5. Utility (If it is the Media Mirror model, this section will be under “3.Utility”) 5.1 Disc Information Display the information of the disc, such as disc format, and content size. -
Page 11: Drive Information
5.2 Drive Information This function shows the drive info that is connected to each internal port of the controller. Information includes the port number that each drive is assigned to, brand name and model of each drive and drive firmware version. [Utility] 5. -
Page 12: Hdd Manager
[Utility] 5. Utility [Update BIOS] 4. Update BIOS Reading..[Update BIOS] Complete! Reboot! Note: a. Please insert the disc with firmware to the source port. b. DO NOT put the firmware files in a folder. 5.5 HDD Manager This command is for the management of the hard disk drive (HDD) installed in the duplicator. - Page 13 [Utility] 5. Utility [HDD Manager] 5. HDD Manager 3. Image Information Press ENT to confirm 1.[ IMG_0001.dup ] 2.[ IMG_0002.dup ] [IMG_0002.dup]: image’s name and format 1Trk 702MB 1Trk 697MB CD: type of image Press ▲▼ to switch 1Trk: the number of image’s track 697MB: image’s capacity 5.5.4...
- Page 14 5.5.7 Format HDD Allows user to format the HDD. Warning: any previously stored images will be lost. [Utility] [HDD Manager] 5. Utility 5. HDD Manager 7. Format HDD Press ENT to confirm Sure to format? Sure to format? Complete! Press ▲▼ to switch choice 5.5.8 HDD Setup 5.5.8.1...
-
Page 15: Setup
Press ▲▼ to switch choice Press ENT to confirm 6. Setup If it is the Media Mirror model, this section will be under “4.Setup” 6.1 Set Burn Speed Allows user to set the burn speed for duplication needs. Note: Due to the varying quality of media, a median burn speed is recommended. -
Page 16: Auto Start
[Setup] 6. Setup [Start Up Menu] 2. Start Up Menu Disc to Disc Press ▲▼ to select option Press ENT to confirm 6.3 Auto Start This allows user choose how much time needed for duplicator to start automatically copying after the last disc is inserted. The time ranges from “OFF”... -
Page 17: Clear Setup
6.7 Clear Setup This function will set the duplicator back to factory default. Warning: Do not use this function unless instructed by an authorized technician. [Setup] 6. Setup Clear Parameter To Default? 7. Clear Setup Press ▲▼ to select option Press ENT to confirm Clear Parameter to default? All Parameters were clear! - Page 18 [Setup] 6. Setup [Advanced Setup] 8. Advanced Setup 3. Setup Password Press ENT to confirm [Setup Password] [Setup Password] [Setup Password] Enable ==> _ ==> _ _ _ _ _ _ Press ENT to confirm Press ▲▼ to select option Press ▲▼...
-
Page 19: Basic Troubleshooting
IV. Basic Troubleshooting Follow these simple steps for quick and proper troubleshooting. 1: Duplicator does not turn on or unit receives no power. a. Check power cord and power outlet to make sure power connections are secured. b. Check voltage switch on the back of the duplicator to make sure power supply is set to the correct outlet rating. - Page 20 a. Test the blank disc in another writer drive. A faulty writer drive will not recognize blank discs. b. Change the blank disc to another disc. A defective blank disc will not be recognized by the writer drive. Copyright © 2015. All rights reserved...
