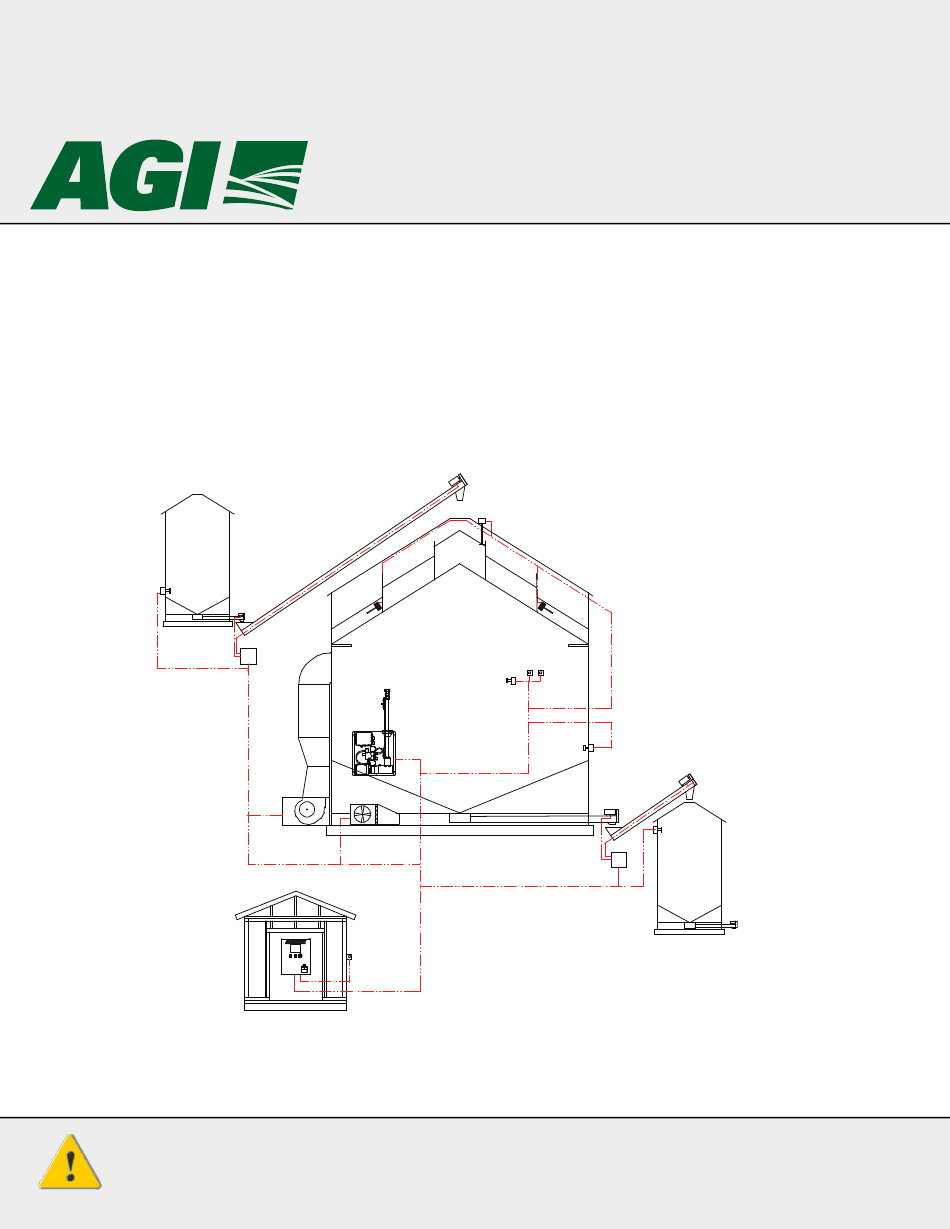

EasyDry®
EasyDry® Apex Controls
Installation Manual
STGI-0908
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
Part Number: 250053 R5
Revised: March 31, 2022
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyDry and is the answer not in the manual?

Questions and answers

Related Manuals for AGI EasyDry

Summary of Contents for AGI EasyDry

  • Page 1 EasyDry® EasyDry® Apex Controls Installation Manual STGI-0908 Read this manual before using product. Failure to Part Number: 250053 R5 follow instructions and safety precautions can Revised: March 31, 2022 result in serious injury, death, or property Original Instructions damage. Keep manual for future reference.
  • Page 2 This product has been designed and manufactured to meet general engineering standards. Other local regulations may apply and must be followed by the operator. All personnel must be trained in the correct operational and safety procedures for this product. Use the sign-off sheet below to record initial and periodic reviews of this manual with all personnel.
  • Page 3 New in this Manual The following changes have been made in this revision of the manual: Description Section Updates were made Manual cover, Contents (Table of Contents) Sections: Text corrections were made. General Assembly Instructions, Sensors and Controls Locations and Identifications, Install the Drying Chamber Top Fill Switch, Drying Chamber Top Fill Rotary Switch Wiring, Full Storage Sensor Rotary Switch Wiring, Dry Bin Full Sensor Rotary Switch...
  • Page 4 EASYDRY® – EASYDRY® APEX CONTROLS 250053 R5...

  • Page 5: Table Of Contents

    EASYDRY® – EASYDRY® APEX CONTROLS CONTENTS 1. Introduction ............................7 2. Intended Use............................7 3. Safety............................... 8 3.1 Safety Alert Symbol and Signal Words..................8 3.2 General Safety Information....................... 8 3.3 Electrical Equipment Safety ...................... 9 3.4 Safety Decals ..........................9 3.5 Decal Installation/Replacement ....................
  • Page 6 EASYDRY® – EASYDRY® APEX CONTROLS 5.13.1 Mounting the VFD ....................58 5.13.2 VFD Power Wiring ....................60 5.13.3 VFD Control Wiring ....................61 5.13.4 VFD Setup ....................... 64 6. Operation .............................. 67 6.1 Operation Safety ........................67 6.2 HMI Buttons, Icons, and Features Identification ..............68 7.

  • Page 7: Introduction

    If any information in this manual is not understood or if you need additional information, please contact AGI or your representative for assistance. This manual should be regarded as part of the equipment.

  • Page 8: Safety

    3. SAFETY EASYDRY® – EASYDRY® APEX CONTROLS 3. Safety 3.1. Safety Alert Symbol and Signal Words This safety alert symbol indicates important safety messages in this manual. When you see this symbol, be alert to the possibility of injury or death, carefully read the message that follows, and inform others.

  • Page 9: Electrical Equipment Safety

    3. SAFETY EASYDRY® – EASYDRY® APEX CONTROLS 3.3. Electrical Equipment Safety Power Source • Electrical equipment and controls shall be installed and serviced by a qualified electrician and must meet all local codes and standards. • Locate main power disconnect switch within reach from ground level to permit ready access in case of an emergency.

  • Page 10: Safety Decal Locations And Details

    3. SAFETY EASYDRY® – EASYDRY® APEX CONTROLS 3.6. Safety Decal Locations and Details Replicas of the safety decals that are attached to the bin dryer controls and their messages are shown in the figure(s) that follow. Safe operation and use of the bin dryer controls requires that you familiarize yourself with the various safety decals and the areas or particular functions that the decals apply to, as well as the safety precautions that must be taken to avoid serious injury, death, or damage.
  • Page 11 3. SAFETY EASYDRY® – EASYDRY® APEX CONTROLS Table 1 Safety Decals (continued) Part Number Description 8110-00216 WARNING SHOCK AND ARC FLASH HAZARD To prevent death or serious injury: • Disconnect and lockout power before inspecting or servicing unit. • Do not service electrical components unless you are a qualified electrician.

  • Page 12: Preparation

    Report missing or damaged parts immediately to ensure that proper credit is received from AGI or your representative, and to ensure that any missing parts can be shipped quickly to avoid holding up the assembly process.

  • Page 13: Installation

    The following portion of this manual along with the accompanying Non-Original Equipment Manufacturer (OEM) assemblies instructions give the necessary assembly details and drawings to enable you to successfully complete the construction of this EasyDry® Control System. 1. Determine the main power disconnect location.

  • Page 14: Sensors And Controls Components Locations And Identification

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.2. Sensors and Controls Components Locations and Identification Figure 1. bin dryer controls Bin Dryer Sensors And Controls Components Identification and Layout Drawing (drawing not to scale) TRANSPORT 2 GRAIN TEMPERATURE TOP FILL...

  • Page 15: Main Power Disconnect

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.3. Main Power Disconnect Determine the main power disconnect location. Note 120 V – 10 Amp 60 Hz service is required for this installation. Figure 2. Main Power Disconnect Location — Example 250053 R5...

  • Page 16: Install The Plc/Hmi

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.4. Install the PLC/HMI The PLC/HMI can be ordered with an optional internal heater and thermostat to allow operation in frigid temperatures. 1. Choose the locations for the PLC (Programmable Logic Controller) / HMI (Human Machine Interface) panel.

  • Page 17: General Wiring Instructions

    The power must remain locked out and tagged out until all wires and equipment installations to the PLC/HMI are complete. Important Follow the EasyDry® EasyDry® Apex Controls Wiring Instructions (Part Number 009370–2) for all required field connections. 1. PLC/HMI wire connections.
  • Page 18 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 5. HMI Assembly USB Flash Drive STGI-0916 Figure 6. PLC/HMI — Interior View STGI-0915 250053 R5...

  • Page 19: Optional Alarm Output Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.5.1 Optional Alarm Output Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2) 2. Use 16AWG MTW wire. 3. Alarm output can be used for strobe/flashing lights or horns on outside of controls shed or bin to help signal a controller alarm.

  • Page 20: Optional Panel Heater Installation And Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.6. Optional Panel Heater Installation And Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Place the heater on the top rail to the right side of the cabinet. See Figure 4 on page 3.

  • Page 21: Rotary Level Indicator Switches

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.7. Rotary Level Indicator Switches Important Read all Bin Master® Switch instructions for wiring and further installation instructions. Figure 9. Bin Master® Switches General Installation (Rotary Level Indicator) TOP MOUNT ROTARY BIN WALL 1 1/4”...

  • Page 22: Install The Drying Chamber Top Fill Switch

    2. Set a jumper inside the switch so it will send signals to the system properly. See the Maxima Plus Switch note in the EasyDry® Apex Controls Wiring instructions (Part Number 009370–2). 3. At the selected EasyDry® bin roof sheet, measure 30” (762 mm) from the top of the sheet and drill a 2” (51 mm) hole. (See Figure 10.)
  • Page 23 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 11. Install the Top Fill Switch MAXIMA+ AC ROTARY LEVEL POWER PAC 90100958 18” X 1/4” [457 mm x 6 mm] GALVANIZED 5/16”” X 1” GRADE 8.2 ROTARY SHAFT BIN BOLT WITH...

  • Page 24: Drying Chamber Top Fill Rotary Switch Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.7.2 Drying Chamber Top Fill Rotary Switch Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Run (4) 16AWG MTW wires from the PLC/HMI to the rotary switch. 3. Use (3) Red wires and (1) white wire.

  • Page 25: Install The Wet / Dry / Low / Full Storage Sensors

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.7.3 Install the Wet / Dry / Low / Full Storage Sensors Full Storage Sensor Install the full storage sensor (Bin Master®Maxima+) at a minimum distance of 32” [813 mm] below the fan(s) entrance level.
  • Page 26 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 13. Example — Wet / Dry / Low / Full Storage Sensors Installation GRP-2 TRIPLE BLADED ROLL PIN PADDLE, 5” [127 mm] COUPLER DIAMETER 90100519 / 299-0004 90100521 / B-416-0152 SIDE MOUNT PLATE (locate bolt holes on outer sidewall sheet “hills”)
  • Page 27 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 14. Low Grain Sensor Location LOW GRAIN SENSOR 250053 R5...

  • Page 28: Full Storage Sensor Rotary Switch Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.7.4 Full Storage Sensor Rotary Switch Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Run (4) 16AWG MTW wires from the PLC/HMI to the rotary switch. 3. Use (3) Red wires and (1) white wire.

  • Page 29: Wet Supply Bin Rotary Switch Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.7.5 Wet Supply Bin Rotary Switch Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Run (3) 16AWG MTW wires from PLC/HMI to the rotary switch. 3. Use (2) Red wires and (1) White wire.

  • Page 30: Dry Bin Full Sensor Rotary Switch Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.7.6 Dry Bin Full Sensor Rotary Switch Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Run (3) 16AWG MTW wires from the PLC/HMI to the rotary switch. 3. Use (2) Red wires and (1) White wire.

  • Page 31: Storage Low Grain Rotary Switch Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.7.7 Storage Low Grain Rotary Switch Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Run (3) 16AWG MTW wires from the PLC/HMI to the rotary switch. 3. Use (2) Red wires and (1) White wire.

  • Page 32: Temperature, Humidity And Static Pressure Sensors

    Part Number® I2-46062) for the cable gland. Install the cable gland and secure with inner plastic nut. Note Refer to EasyDry® Apex Controls Wiring Instructions (Part Number 009370–2) to correctly complete the temperature probe cable wiring installation for the temperature probes.
  • Page 33 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 4. Install the temperature brackets to the grain bands using 5/16” x 1” bin bolts and 5/16” flanged hex nuts. Locate the probe approximately 8” — 9” (203 mm — 229 mm) above the plenum sheet for continuous flow units and 16”...
  • Page 34 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5. Run the probe cable towards the PLC. a. Run the cable up the back side of the grain band post angle and along to the top of the uppermost grain band. b. Run the cable along the top of the grain band until the point is reached under the roof rib near to the PLC.
  • Page 35 6. Span the cable from the top of the grain band to the under-side of roof rib above the exit location. Secure the cable to the roof rib bolts using cable bolt clips (not supplied by AGI). 7. Exit the cable from the grain bin at the roof rib bird stop location.

  • Page 36: Install The Plenum Temperature Sensor

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.8.2 Install the Plenum Temperature Sensor This sensor signals the heater when to turn on and off. 1. Position the plenum temperature sensor (Dwyer®I2 Series Temperature Probe, Part Number®I2–46062) to the side of the one or two fans.

  • Page 37: Grain And Plenum Temperature Probes/Sensor Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.8.3 Grain and Plenum Temperature Probes/Sensor Wiring 1. Always refer to the APEX Controls Wiring Instructions (Part Number 009370–2). 2. Temperature probes must be wired to cables. 3. Use 18AWG Shielded Cable (2 or 3 wire). Attach shielding wire to the ground terminal in the PLC/HMI.

  • Page 38: Install The Plenum Static Pressure Sensor

    • where the temperature will remain between 20 °F to 122 °F (-6 °C to 50 °C) 2. AGI recommends to place the sensor enclosure near the ladder or reachable from the spiral stairs. The sensor should be placed in a vertical orientation only, with pressure connections pointing down.
  • Page 39 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5. Pull back the label and set the output voltage range to 0 — 10 VDC as shown in the following figure. Figure 27. Plenum Static Pressure Sensor Dip Switch Settings Lift the tab to...

  • Page 40: Plenum Static Pressure Sensor Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.8.5 Plenum Static Pressure Sensor Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Use 18AWG Shielded Cable (3 or 4 wire). 3. Attach the shielding wire to the ground terminal in the PLC/HMI.

  • Page 41: Install The Outside Humidity And Temperature Sensor (Optional)

    Note AGI recommends installing this sensor near/close to the PLC/HMI outside of direct sunlight for more accurate readings. 2. Mount with the sensor pointing downward to prevent water collection in the housing.

  • Page 42: Outside Humidity And Temperature Sensor Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.8.7 Outside Humidity and Temperature Sensor Wiring 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Use 18AWG Shielded Cable (5 or 6 wire). 3. Attach the shielding wire to the ground terminal in the PLC/HMI.

  • Page 43: Wire The Wet And Dry Transport Panels To The Plc/Hmi

    EASYDRY® – EASYDRY® APEX CONTROLS 5.9. Wire the Wet and Dry Transport Panels to the PLC/HMI Run wires from the wet and dry transport panels back to the PLC. See the EasyDry® EasyDry® Apex Controls Wiring Instructions (Part Number 009370–2).
  • Page 44 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 4. Run high voltage wire from the fused disconnect to the motor starter. Size the wire appropriately for the motor size and voltage. Note Transport motor starters are not provided. Use 120VAC coil motor staters. An Example motor starter is shown.

  • Page 45: Wet Transport 2 Motor Starter Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.9.2 Wet Transport 2 Motor Starter Wiring Note When only one wet transport is controlled by the PLC/HMI, the transport should be wired as Wet Transport 2. 1. Always refer to the APEX Controls Wiring Instructions (Part Number 009370–2).
  • Page 46 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 32. Wiring the Wet Transport 2 Motor Starter to the PLC/HMI WET 2 TRANSPORT MOTOR STARTER HIGH VOLTAGE FROM FUSED DISCONNECT L1 3 L2 5 NO 61 NC 71 NC 83 NO...

  • Page 47: Dry Transport 1 Motor Starter Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.9.3 Dry Transport 1 Motor Starter Wiring Note When only one dry transport is controlled by the PLC/HMI, the transport should be wired as Dry Transport 2. 1. Always refer to the APEX Controls Wiring Instructions (Part Number 009370–2).
  • Page 48 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 33. Wiring the Dry Transport 1 Motor Starter to the PLC/HMI DRY 1 TRANSPORT MOTOR STARTER HIGH VOLTAGE FROM FUSED DISCONNECT L1 3 L2 5 NO 61 NC 71 NC 83 NO...

  • Page 49: Dry Transport 2 Motor Starter Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.9.4 Dry Transport 2 Motor Starter Wiring Note When only one dry transport is controlled by the PLC/HMI, the transport should be wired as Dry Transport 2. 1. Always refer to the APEX Controls Wiring Instructions (Part Number 009370–2).
  • Page 50 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 34. Wiring the Dry Transport 2 Motor Starter to the PLC/HMI DRY 2 TRANSPORT MOTOR STARTER HIGH VOLTAGE FROM FUSED DISCONNECT L1 3 L2 5 NO 61 NC 71 NC 83 NO...

  • Page 51: Wire The Fans And Heaters To The Plc/Hmi

    1. Run all wires to fans and heaters from the PLC/HMI. The system will include either: a. one fan and one heater; or, b. two fans and two heaters. 2. Install the wiring as indicated in the EasyDry® Apex Controls Wiring Instructions (Part Number 009370–2). 5.10.1 Wire the Fan 1 and Burner 1 Fan 1 1.
  • Page 52 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 35. Installing the Wiring to the Fan 1 Starter Box and Burner 1 Control Box FAN 1 BURNER 1 STARTER BOX CONTROL BOX HIGH VOLTAGE FROM FUSED DISCONNECT HAND AUTO L1 3...

  • Page 53: Wire The Fan 2 And Burner 2

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.10.2 Wire the Fan 2 and Burner 2 Fan 2 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Run (6) 16AWG MTW wires from the PLC/HMI to the Fan 2 starter box.
  • Page 54 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 36. Installing the Wiring to the Fan 2 Starter Box and Burner 2 Control Box FAN 2 BURNER 2 STARTER BOX CONTROL BOX HIGH VOLTAGE FROM FUSED DISCONNECT HAND AUTO L1 3...

  • Page 55: Wire The Hpu Dump Relay Box To The Plc/Hmi

    EASYDRY® – EASYDRY® APEX CONTROLS 5.11. Wire the HPU Dump Relay Box to the PLC/HMI Run wires from the Hydraulic Pump Unit (HPU) Dump relay box to the PLC. See the EasyDry® Apex Controls Wiring Instructions (Part Number 009370–2). 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2).

  • Page 56: Wire The Aeration Fan To The Plc/Hmi

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.12. Wire the Aeration Fan to the PLC/HMI Important Use motor starters with 120 VAC coils. 1. Always refer to APEX Controls Wiring Instructions (Part Number 009370–2). 2. Run (6) 16AWG MTW wires from the PLC/HMI to the rotary switch.

  • Page 57: Vfd Installation For The 230Vac Single-Phase Fan

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.13. VFD Installation for the 230VAC Single-Phase Fan 1. Fan and heaters for 230VAC single-phase power come with a 20hp three-phase motor and variable frequency drive (VFD). The VFD converts 230VAC single-phase power to 230V three-phase power to run the 20hp motor.

  • Page 58: Mounting The Vfd

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.13.1 Mounting the VFD 1. The VFD must be installed in the controls shed or enclosure large enough to provide the proper amount of space and air flow around the VFD. 2. Measure the mounting space so that it allows the minimum space surrounding the VFD and ensures that the minimum airflow requirements for the VFD are met.
  • Page 59 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 41. Open Drives FR5 DANGER 5 MIN STGI-0921 Table 3. Mounting drive dimensions Approximate dimensions in inches (mm) Frame Weight Ø Size lb (kg) 13.41 34.98 29.65 27.83 11.34 11.10 8.66 8.66 0.35...

  • Page 60: Vfd Power Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.13.2 VFD Power Wiring 1. Disconnects, fuses, breakers, and wire must be sized according to the following table for 230VAC single-phase input power. Table 4. Cable and Fuse/Breaker Sizes — Without External Capacitors...

  • Page 61: Vfd Control Wiring

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 12. Strip input power and motor wires as indicated in the following figure. Figure 43. Input Power and Motor Cable Stripping Lengths STGI-0922 Table 6. Input Power and Motor Cable Stripping and Wire Lengths...
  • Page 62 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS PLC/HMI to VFD Wiring Diagrams Figure 44. PLC/HMI TO FAN 1 VFD Wiring Diagram STGI-0926 FAN 1 VFD +10V AI1+ 24Vo AI1- AI2+ A01+ AI2- A02+ 24Vi DIN5 DIN1 DIN6 DIN2 DIN7 DIN3...
  • Page 63 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS Figure 45. PLC/HMI TO FAN 2 VFD Wiring Diagram STGI-0927 FAN 2 VFD +10V AI1+ 24Vo AI1- AI2+ A01+ AI2- A02+ 24Vi DIN5 DIN1 DIN6 DIN2 DIN7 DIN3 DIN8 DIN4 24Vo 5 B...

  • Page 64: Vfd Setup

    5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 5.13.4 VFD Setup 1. Several parameters must be setup on the VFD for it to work properly with the fan motor. 2. Refer to the Eaton PowerXL DH1 Series VFD Quick Start Guide for more detailed information.
  • Page 65 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 6. After the Setup Wizard is complete, several other parameters must be entered and confirmed. See the following tables for required parameter inputs. Table 9. Basic Parameters — P1 Description Item Selection Min Frequency P1.1...
  • Page 66 5. INSTALLATION EASYDRY® – EASYDRY® APEX CONTROLS 7. Drive parameter P6.2.6 (Input Phase Fault) must be set to “No Action” for the VFD to run with single phase input power. 8. Once all the parameters are set, the VFD must be restarted to clear any faults.

  • Page 67: Operation

    6. OPERATION EASYDRY® – EASYDRY® APEX CONTROLS 6. Operation Before continuing, ensure you have completely read and understood this manual’s Safety section, in addition to the safety information in the section(s) below. 6.1. Operation Safety • Ensure appropriate safety accessories are installed. Selection and use of safety accessories for the specific installation is the responsibility of the customer.

  • Page 68: Hmi Buttons, Icons, And Features Identification

    6. OPERATION EASYDRY® – EASYDRY® APEX CONTROLS 6.2. HMI Buttons, Icons, and Features Identification Note In every case, buttons appear BLUE when turned On and appear BLACK when turned Off. Inactive Buttons, Switches, or Sensors Active Buttons, Switches, or Sensors...

  • Page 69: Maintenance

    “windmilling.” Always block the impeller/blade before working on any moving parts. • After maintenance is complete, replace all guards, service doors, and/or covers. • Use only genuine AGI replacement parts or equivalent. Use of unauthorized parts will void warranty. If in doubt, contact AGI or your local dealer.

  • Page 70: Appendix

    ALWAYS TIGHTEN THE NUT, NOT THE BOLT. Avoid bin assembly at temperatures below -10°C (14°F) if possible. Erection in low temperatures does not ensure strong, well sealed connections. Do not substitute bolts in place of those supplied by AGI. 250053 R5...

  • Page 71: Warranty

    9. WARRANTY EASYDRY® – EASYDRY® APEX CONTROLS 9. Warranty AGI (the Company) makes the following warranty to the initial retail purchaser of its products (the Customer). Materials and Workmanship The Company warrants products manufactured by it to be free from defects in materials and workmanship in normal use and service for a period of one (1) year after date of delivery to the Customer.
  • Page 72 Factory use only 2928 E. Hwy 30, Grand Island, Nebraska, USA 68801 2928 East Highway 30, Grand Island, NE 68801, USA 2928 E. Hwy 30, Grand Island, Nebraska. USA 68801 P 308.384.9320 | F 308.382.6954 | E sales@aggrowth.com 250053...
