  • Page 1 User 2x2 DP Dual Monitor KVM Switch Manual DKS202 Master 24 DKS202 Master 24 English...
  • Page 3 English...
  • Page 5 The ownership of the trade names and brand names adopted in this user manual belongs to their companies. Product Information For more information about TESmart products and how they can help you to enjoy your job, please visit the following TESmart website or contact an TESmart Authorized Reseller. www.tesmart.com...

  • Page 6: Table Of Contents

    Contents 1. Safety Tips and Warnings ··································01 9.4 EDID Emulator 2. Battery Description···········································02 9.5 Mouse Wheel Switching 3. Warranty Information········································03 10. Operation Method··········································24 4. Preface··························································04 10.1 Front Panel Button Switching Method 5. Features·························································05 10.2 IR Remote Control 6. Packing List·····················································06 10.3 Keyboard Hot Keys 7.

  • Page 7: Safety Tips And Warnings

    1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for dual monitor KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water.

  • Page 8: Battery Description

    2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire.

  • Page 9: Warranty Information

    3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications.

  • Page 10: Preface

    KM compatibility. Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com.

  • Page 11: Features

    5. Features Using 2 monitors, 1 set of keyboard and mouse to control 2 computers Ÿ Support resolution up to 8K(4320p)@60Hz and is backward compatible with Ÿ 4K(2160p)@60Hz/120Hz/144Hz DisplayPort 1.4 compliant Ÿ Support 2 display modes Ÿ Support Unix/Windows/ Debian/ Ubuntu/Fedora/ MacOS X/ Raspbian/ Ubuntu for Raspberry Ÿ...

  • Page 12: Packing List

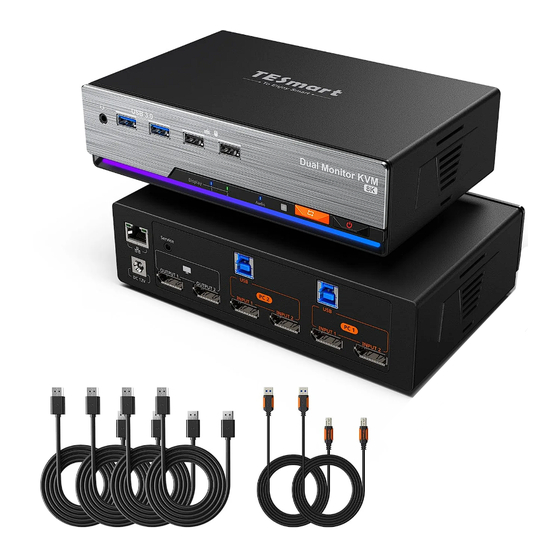

    6. Packing List 1 * 2x2 DP Dual Monitor KVM Switch Ÿ 2 * USB 3.0 Cables Ÿ 4 * DP Cables Ÿ 1 * IR Remote Control Ÿ 1 * DC 12V Power Adapter Ÿ 1 * User Manual Ÿ...

  • Page 13: Panel Description

    7. Panel Description Name Function 3.5mm audio/mic Integrated microphone and L/R audio output. USB 3.2 Gen 1 ports Connect to USB 3.0 device. Keyboard and mouse input For USB keyboard and mouse input. Display status indicators Display the current output status of each monitor.
  • Page 14 Name Function Audio and USB 3.0 indicator Indicate the current path of audio and USB 3.0. Input selection button Press to switch input sources. Power switch Press for about 2 seconds to turn on or turn off power supply. Features 4 lighting modes to match your atmosphere Please refer to RGB LED strip page 31 for how to switch different modes.
  • Page 15 Name Function DC 12V 12V DC power supply. Insert the network cable into this port to let the 2 input PCs to connect LAN port to the local network area. IR extension in Connect IR extension cable to this port to receive remote IR signal.
  • Page 16 Name Function DP outputs Connect to 2 DP displays for video output. 2 PCs can be connected to the KVM at the same time. KVM input ports group Each group contains 2 DP ports(marked as Input 1/2) and a USB port. Connect the ports to corresponding input devices for signal input.

  • Page 17: Connection Description

    8. Connection Description 8.1 Connection Diagram Keyboard Mouse Monitor 2 Monitor 1 USB Type-A to B Cable Router DP Cable Hard disk Headset drive Driver Ethernet Switch PC 2 PC 1...

  • Page 18: Connection Preparation

    8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ...

  • Page 19: Connection Steps

    8.3 Connection Steps 1. Connect PC1 with 1 USB-A to B cable and and 2 DP cable, connect PC1 to the DP ports group on the KVM, use USB-A end to connect each PC and USB-B end to connect the KVM. Connect PC2 in the same way.
  • Page 20 3. Connect external mouse and keyboard to KVM's keyboard and mouse input port. Tips: For the normal service of hotkeys, we recommend you use the full-key external keyboard with a separate [Scroll Lock] key (as shown above 4. Connect USB 3.0 devices to KVM's standard USB 3.0 ports.
  • Page 21 5. Connect external audio device to KVM's L/R out port. 6. Use 1 network cable, one end is connected to the RJ45 port, the other end is connected to a switch or a router.
  • Page 22 7. Connect the power cable to KVM's DC 12V port and plug it to a power socket. 8. By now, the connection has been completed. Turn on the power supply and the KVM Switch will begin to work. Tips: By default, the network cable is not included in the package.

  • Page 23: Kvm Workbench

    8.4 KVM Workbench A workbench with 2x2 DP Dual Monitor KVM Switch successfully connected is shown as below:...

  • Page 24: Function Description

    9. Function Description 9.1 Display Mode Description The 2x2 DP dual monitor KVM Switch support 2 display modes. You can choose to implement 2-screen extended display or duplicate display or display different PCs on 2 monitors. Display Mode 1: Display the same PC Duplicate displays Extend displays Display A...
  • Page 25 Display Mode 2: Display the different PCs Display A Display B PC 1 PC 2 In this mode, you can show one PC on any two monitors connected to the KVM and the other PC on the remaining monitor. Use the front panel, hotkeys, or IR control to switch between PCs and monitors.

  • Page 26: Keyboard And Mouse Emulation Mode

    9.2 Keyboard and Mouse Emulation Mode We provide two keyboard and mouse modes: Pass Through Mode and Legacy Emulation Mode. Pass Through mode supports most keyboard and mouse drivers and multifunction keyboards and mice. Legacy Emulation Mode ensures the normal functioning of the keyboard, mouse, and hotkey features.

  • Page 27: Built-In Network Switch

    9.3 Built-in Network Switch The 2x2 KVM Switch have a built-in USB Ethernet Adapter, which adds a standard RJ45 port to all the PC that is connected to the KVM and allows you to connect your computers to a router or network switch for gigabit wired network connection. Full 1000Mbps Ethernet for fast, stable data transfer, more reliable than most wireless connections.

  • Page 28: Edid Emulator

    9.4 EDID Emulator Our 2x2 DP KVM Switch with EDID emulators in each input port, keeping PCs always having correct display information. And the KVM will maintain EDID before and after switching, ensure that the window you open stays in the fixed place. Use the hot key command can enable or disable EDID emulators.

  • Page 29: Mouse Wheel Switching

    9.5 Mouse Wheel Switching Mouse wheel switching method can quickly switch input sources by mouse operation, double-click the mouse wheel to switch to the next input port. Mouse wheel switching mode is off by default. You can use keyboard hotkey command to turn on mouse wheel switching mode.

  • Page 30: Operation Method

    10. Operation Method 10.1 Front Panel Button Switching Method The 2x2 DP dual monitor KVM Switch can switch to any input devices at any time with front panel keypad, IR remote control and keyboard hot keys. You can choose your favorite switching method according to your personal needs and habits.

  • Page 31: Ir Remote Control

    10.2 IR Remote Control Switch images on the Display A Switch images on the Display B Switch both monitor to display PC 1 Switch both monitor to display PC 2 Turn off/on buzzer sound Tips: Unspecified buttons at above are non-functional.

  • Page 32: Keyboard Hot Keys

    10.3 Keyboard Hot Keys Use external keyboard hot keys to switch the input source or set up some other functions.. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. After press [Right-Ctrl] key twice within 2 seconds then please enter the commands within 3 seconds and the KVM will execute the corresponding commands.
  • Page 33 Switch PCs on different monitors separately(i.e. display mode 2): Monitor 1：[Right-Ctrl] → [Right-Ctrl] → [←] Right Right ← Ctrl Ctrl Monitor 2：[Right-Ctrl] → [Right-Ctrl] → [→] Right Right → Ctrl Ctrl Switch keyboard and mouse focus in display mode 2: [Right-Alt] →...
  • Page 34 Disable/enable follow mode: Tips: "Follow Mode" refers to whether the audio devices and USB 3.0 devices connected to the front panel will switch synchronously with the keyboard and mouse focus when switching. [Right-Ctrl] →[Right-Ctrl] →[~] Right Right Ctrl Ctrl Tips: The default setting of follow mode is enabled. When you disable it, the buzzer will emit only 1 short beep;...
  • Page 35 Disable/enable built-in network card: Right Right Ctrl Ctrl [Right-Ctrl] →[Right-Ctrl] →[F4] Tips: The built-in network card is enabled by default. Enable it will trigger the buzzer to beep twice and disable it will trigger the buzzer to beep once. Disable/enable EDID emulator: Right Right Ctrl...
  • Page 36 Disable or enable buzzer sound: Right Right Ctrl Ctrl [Right-Ctrl] →[Right-Ctrl] →[F11] Tips: The default setting of buzzer sound is enabled. Repeat this step to disable or enable buzzer sound.
  • Page 37 Switch lighting modes: Turn off lighting: [Right-Ctrl] → [Right-Ctrl] → [L] → [0] Right Right Ctrl Ctrl Light effects vary with KVM indicators: [Right-Ctrl] → [Right-Ctrl] → [L] → [1] Right Right Ctrl Ctrl Marquee lighting effect: [Right-Ctrl] → [Right-Ctrl] → [L] → [2] Right Right Ctrl...

  • Page 38: Change Hot Key Combination

    11. Change Hot Key Combinations For your convenience, we have built-in a custom hotkey function. By setting, you can use any key on the keyboard connected to the KVM as the trigger key for the hot key command. The default hotkey trigger key is the [Right-CTRL]. The custom hotkey function can be set in the following ways: Method 1: After powering on the KVM, press and keep holding the [...
  • Page 39 V001...
  • Page 40 To Enjoy Smart DKS202 Master 24 Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
