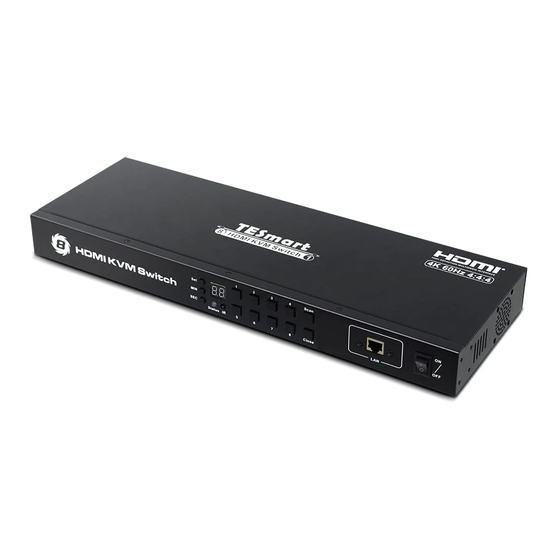

8x1 HDMI KVM Switch
This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform
computer equipment easily. It makes you available to switch easily and reliably between any
HDMI computers using one HDMI compliant display.
The 8x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using
USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or
other USB devices to the KVM. Switching can be controlled through variable methods, such
as the front panel source selector buttons, RS232 commands, IP commands, IR signals and
hot keys on keyboard.
With EDID emulators in each input port, keep PCs always having correct display information,
prevent display settings from changing while switching input ports.
Features
 Using one USB console controls 8 HDMI computers
 Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for
Raspberry Pi and other Linux based systems
 With EDID emulators in each input port, keep PCs always having correct display
information
 Support hot plug, connect or disconnect devices to the KVM switch at any time without
turning off devices
 Support auto switching to monitor computers in a specified time interval
 Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or
IP commands to control KVM switch
Available to use keyboard without any delay after switching input sources.
 Support resolution up to 3840*2160@30H
 With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB
hard drive or other USB devices to KVM just as you have plug these devices directly to
computer
 Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Packing list
1 * 8x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
1
# HKS0801A30
www.tesmart.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the HKS0801A30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TESmart HKS0801A30

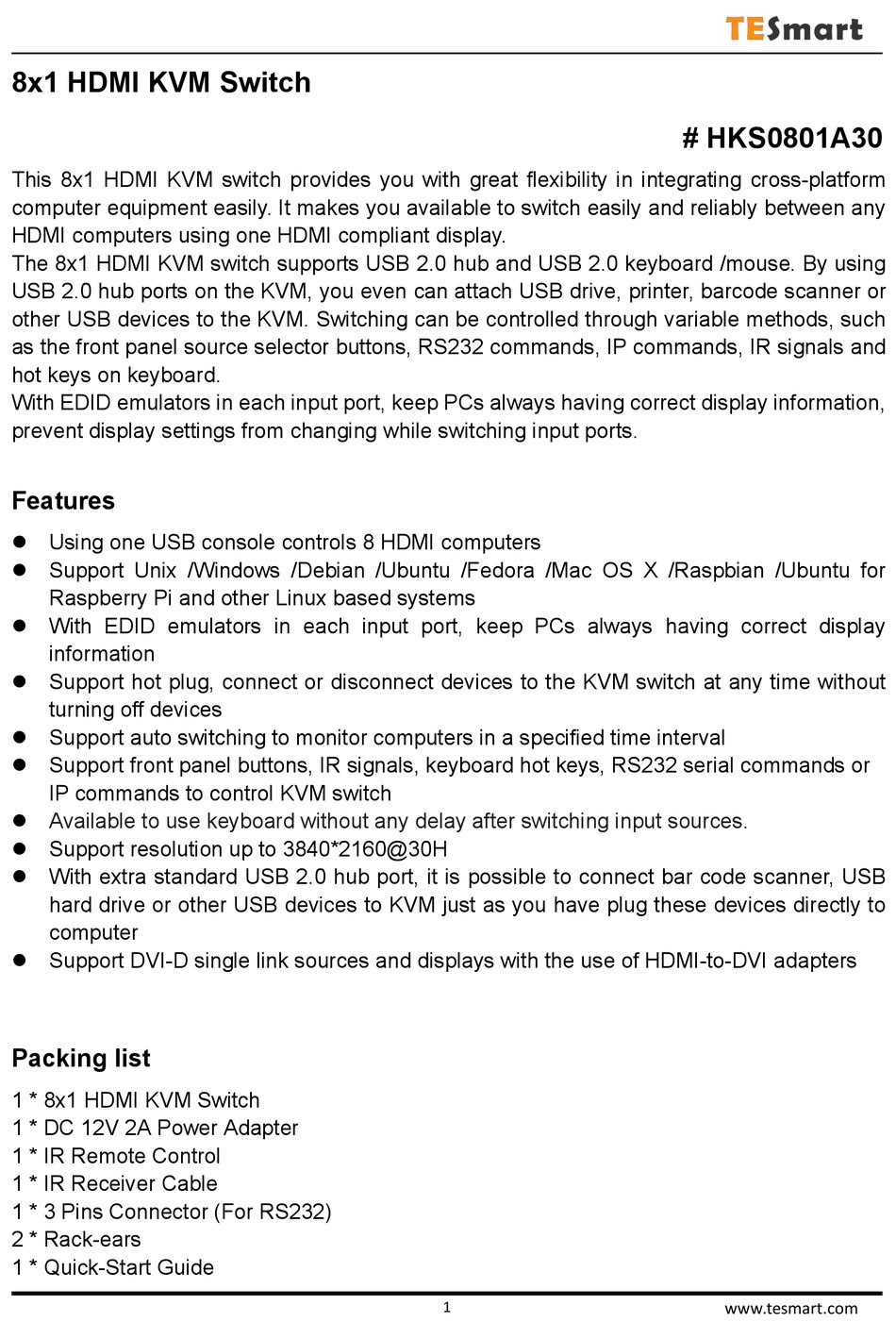

  • Page 1 8x1 HDMI KVM Switch # HKS0801A30 This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
  • Page 2: Panel Descriptions

    [Set]: After setting minutes and seconds, press button [Set] to settings enter final scan time interval setting Red: Turn off auto scanning mode Status LED Green: Turn on auto scanning mode IR receiver Receive IR signal LED display Display current selected input port www.tesmart.com...
  • Page 3 By connecting to the LAN through this port, you can use the LAN port terminal device in the same LAN to send TCP/IP commands to control the switching of input port Power switch Turn on or off power supply www.tesmart.com...
  • Page 4: Connection Diagram

    Connection diagram www.tesmart.com...
  • Page 5: Specification

    Specification HKS0801A30 8x1 HDMI KVM Switch Functionality: Auto Scan Front panel buttons Keyboard hotkeys Port selection IR remote control Console commands RS232 / IP Technical: Max. Resolution 3840x2160@30Hz Auto to get EDID Data rate 10.2 Gbps Auto scan interval 5~3600 Seconds...
