Page 5
If you have any questions, comments or suggestions, you can contact us via the following email: tech@tesmart.com. Copyright Notice The user manual, compiled by Tesla Elec Technology, shall not be duplicated or translated by any person or organizations without written permission.
1. Safety Tips and Warnings Tips: Read the safety tips and warnings for HDMI Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water.
2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install CR2025 cell before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire.
3. Warranty Information We warrant that this product will be free of defects in material and workmanship for a period of one (1) year from the date of shipment. If within the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that the product has not been subjected to mechanical and electrical damage, or other abuse or modifications.
EDID emulators in each input port, it can keep source devices always having correct display information. Tips: If you need to control more devices or conduct more complex and professional switching, you can also choose other products of our company. For more details, you can visit our official website: www.tesmart.com.
5. Features With 8/16 HDMI inputs and 1 HDMI output Ÿ Support resolution up to 3840*2160@60Hz 4:4:4 Ÿ HDCP 2.2 compliant Ÿ With EDID emulators in each port, keep HDMI sources always have correct display Ÿ information Support front panel buttons, IR signals, RS232 serial commands or IP commands to Ÿ...

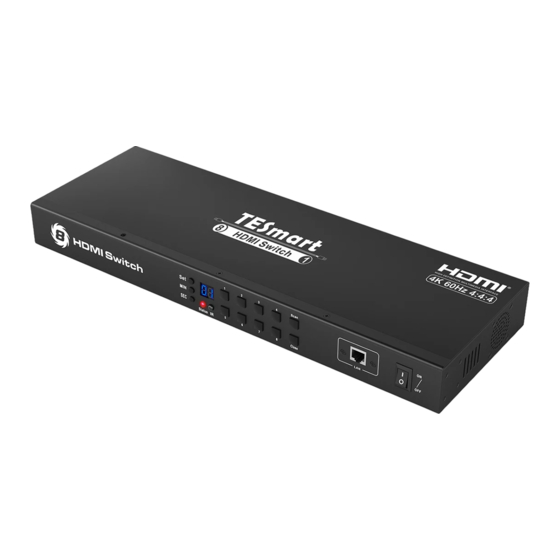

7. Panel Description (8x1 HDMI Switch) Name Description Name Description Power Turn on or off power supply of the switch. Display current selected input source number. switch display Connect this port to local area network LAN port with network cable. Use TCP/IP commands Receive IR signal.
Page 14
Name Description Connect IR receive cable to this port to receive IR signal even the switch is IR extension in installed in a rack. DC 12V DC 12V power supply. Connect this port to control terminal. Use RS232 commands to select input RS232 port source.
8. Panel Description (16x1 HDMI Switch) Name Description Name Description Power Turn on or off power supply of the switch. Display current selected input source number. switch display Connect this port to local area network LAN port with network cable. Use TCP/IP commands Receive IR signal.
Page 16
Name Description Connect IR receive cable to this port to receive IR signal even the switch is IR extension in installed in a rack. DC 12V DC 12V power supply. Connect this port to control terminal. Use RS232 commands to select input RS232 port source.
9. Connection Description 9.1 Connection Diagram (8x1 HDMI Switch) Game Console Tips: Please refer to Chapter 10.6 for how to use the RS232 port and LAN port. Control Terminal...
9.2 Connection Diagram (16x1 HDMI Switch) Game Console Tips: Please refer to Chapter 10.6 for how to use the RS232 port and LAN port. Control Terminal...
9.3 Connection Steps 1. Connect the input device to the input ports using 8 or 16 HDMI cables. 2. Connect the output port to the display device using 1 HDMI cable. 3. Connect DC 12V power supply to the HDMI Switch. 4.
10.4 Auto Scan mode The Auto Scan feature automatically toggles the HDMI Switch focus between the connected powered on input units at regular intervals. As a result, any input devices connected to each can be monitored without user intervention. Auto scan mode is off by default. Turn on/off...
10.5 Auto Detection mode The HDMI Switch will automatically select the input source when: 1.When attaching a new input device to the switch, the HDMI switch will switch to this just plugged in source automatically. 2.When removing a connected input source, the HDMI switch will switch to the first valid input source automatically.
10.6 RS232 port and LAN port control A. Connect RS232 port Follow below diagram to connect the standard 9 pin RS232 port to the 3 pins connector which is included in package, then plug the connector to the HDMI switch ‘ ’...
Page 25
C. Communication protocol RS232 port configuration: LAN port configuration: Baud rate: 9600 bps IP address: 192.168.1.10 Stop bit: 1 bit Port: 5000 Data length: 8 bits Gate way: 192.168.1.1 Mask address: 255.255.255.0 Commands (HEX Format): Switch input source: Switch to PC : 0xAA 0xBB 0x03 0x 0xEE ( : 1~8 for 8x1 HDMI Switch;...
Page 26
Based on the communication protocol in Section C, we provide a controller on the windows OS. you can visit our official website to download it: www.tesmart.com. You can also develop dedicated controllers for each platform by referring to the control protocol in Section C.
Page 28
RS232 port usage Step 1: Use RS232 cable connect PC to HDMI Switch. Step 2: Running the HDMI Switch Controller. Select page ‘General’ and click ‘Serial control’. Step 3: Select the serial communication port number which connected to the HDMI Switch. Step 4: Click ‘Connect’...
Page 29
LAN port usage Step 1: Use Network cable connect PC or to HDMI Switch. Please make sure the PC and the HDMI Switch both to the same Local area network. Step 2: Running the HDMI Switch Controller. Select page ‘General’ and click ‘Network control’. Step 3: Setup IP address of the network adapter on the PC which running this software, make sure the IP address is between 192.168.1.2~192.168.1.254 but should not be 192.168.1.10.
Page 31
LAN port usage (LAN Port connect successful)
Page 32
System settings: 1) Mute buzzer: Turn off the buzzer, the buzzer on HDMI switch will not beep when press buttons. Unmute buzzer: Turn on the buzzer, the buzzer on HDMI switch will beep when press buttons. 2) Auto input detect off / Auto input detect on: Turn off...
Page 33
Change IP address of the HDMI switch Step 1: Use RS232 cable connect PC to HDMI Switch. Step 2: Running the HDMI Switch Controller. Select page ‘General’ and click ‘Serial control’. Step 3: Select the serial communication port number which connected to the HDMI Switch. Step 4: Click ‘Connect’...
Page 34
Change IP settings of the HDMI switch (Change IP settings)
