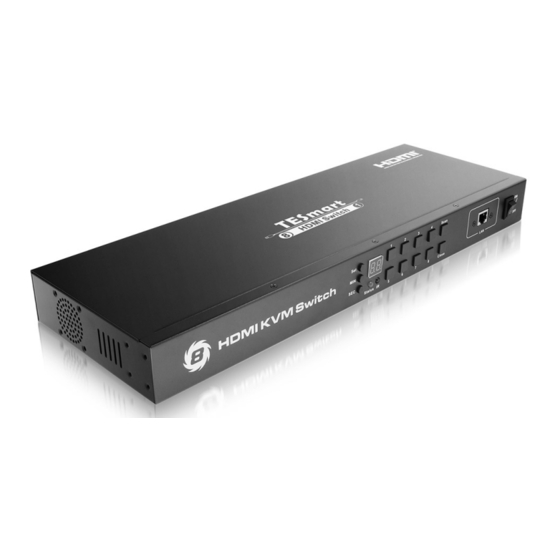

- Page 1 SUPPORT MANUAL TESmart 8-Port HDMI Switch - Autoscan, Rackmount, Ethernet, USB Hub, 4K 30hz HKS0801A20 www.buytesmart.com contact@buytesmart.com...
- Page 2 Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard. With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports. HKS0801A20...
- Page 3 With extra standard USB 2.0 hub port, it is possible to connect barcode scanners, USB hard drives or other USB devices to the KVM easily as if you have plugged these devices directly yo the computer. Supports DVI-D single link sources and displays with the use of HDMI-to-DIV adapters. HKS0801A20...
-
Page 4: Packing List
1 x 8x1 HDMI KVM Switch 1 x DC 12V 2A Power Adapter 1 x IR Remote Control 1 x IR Receiver Cable 1 x 3 Pins Connector (For RS232) 2 x Rack-ears 4 x 5' KVM Cables 1 x User manual HKS0801A20... -
Page 5: Panel Description
PANEL DESCRIPTION HKS0801A20... - Page 6 HKS0801A20...
-
Page 7: Connection Diagram
CONNECTION DIAGRAM HKS0801A20... -
Page 8: Specification
SPECIFICATION 8x1 HDMI KVM Switch HKS0801A20 Functionality: Auto Scan Front panel buttons Keyboard hotkeys Port selection IR remote control Console commands RS232 / IP Technical: Max. Resolution 3840x2160@30Hz HDMI version Auto to get EDID Data rate 10.2 Gbps Auto scan interval... -
Page 9: Basic Operations
Auto input detection and switch mode off: When plugging in a new HDMI input source to the KVM switch or powering on the HDMI input source, the KVM switch would not do anything, also when unplugging or powering off the HDMI input source. HKS0801A20... - Page 10 5- Setup time interval of auto scan mode Press front panel button [MIN] to loop between 0-59 minutes. Press front panel button [SEC] to loop between 0-59 seconds. After setting the minutes and seconds, press the button [Set] to enter the final scan time interval setting. HKS0801A20...
- Page 11 2 seconds to turn on or turn off the mouse gesture switching. When the mouse gesture switching mode is on, move the mouse pointer to hit left ot right bound of the screen within 1 second, the KVM will switch to previous or next input source. HKS0801A20...
- Page 12 KVM "TX-RX" port. Connect LAN port Follow below diagram to connect the LAN port to local area network router or directly to PC with Cat5e/6 UTP cable. HKS0801A20...
-
Page 13: Keyboard Hot Keys
1- Hit SCROLL LOCK twice within 2 seconds, the buzzer will beep twice. 2- After step 1 enter the following Hot Key command within 3 seconds. The KVM will execute the corresponsing command. Known issue: Apple Keyboard is not supported yet. HKS0801A20... - Page 14 CONTACT Thank you for purchasing the TESmart 4-Port KVM HDMI Video Switch. We are here to help you! Do you need assistance setting up your product? Please make sure you visit: - https://buytesmart.com for more details and product information - https://buytesmart.com/apps/help-center for support knowledge base and Frequently Asked Questions.
