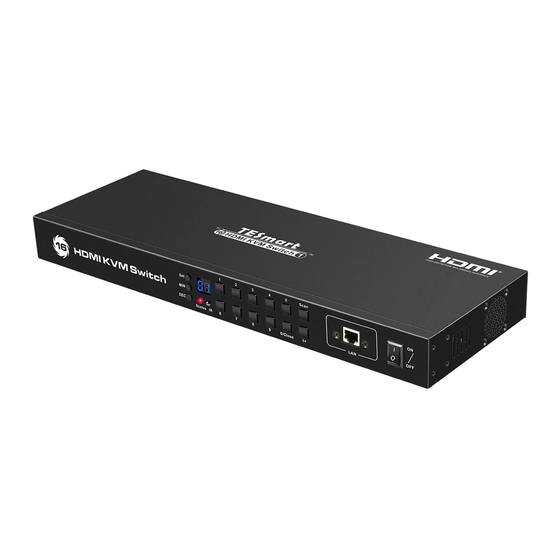

16x1 HDMI KVM Switch
This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform
computer equipment easily. It makes you available to switch easily and reliably between any
HDMI computers using one HDMI compliant display.
The 16x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using
USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or
other USB devices to the KVM. Switching can be controlled through variable methods, such
as the front panel source selector buttons, RS232 commands, IP commands, IR signals and
hot keys on keyboard.
With EDID emulators in every input ports, keep PCs always have correct display information,
prevent display settings changed while switching input ports.
Features
 Using one USB console controls 16 HDMI computers
 Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for
Raspberry Pi and other Linux based systems
 With EDID emulators in each input port, keep PCs always having correct display
information
 Support hot plug, connect or disconnect devices to the KVM switch in any time and
without turn off devices
 Support auto switching to monitor computers in a specified time interval
 Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or
IP commands to control KVM switch
Available to use keyboard without any delay after switch input sources
 Support resolution up to 3840*2160@30Hz
 With extra standard USB 2.0 hub port, it is possible to connect barcode scanner, USB
hard drive or other USB devices to KVM just as you have plug these devices directly to
computer
 Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Packing list
1 * 16x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
1
# HKS1601A10
www.tesmart.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the HKS1601A10 and is the answer not in the manual?

Questions and answers

Summary of Contents for TESmart HKS1601A10

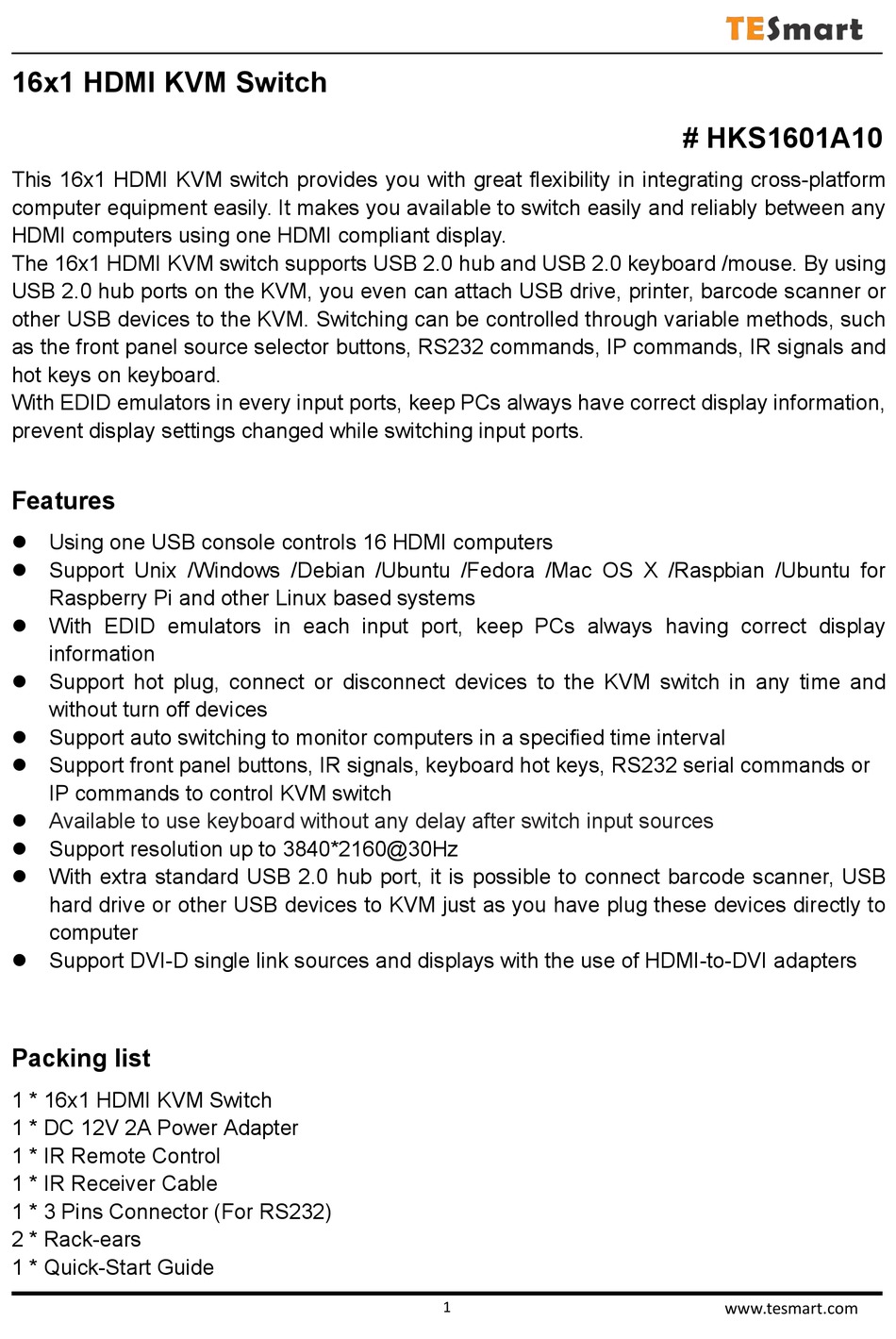

  • Page 1 16x1 HDMI KVM Switch # HKS1601A10 This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
  • Page 2: Panel Descriptions

    [Set]: After setting minutes and seconds, press button [Set] to settings enter final scan time interval setting Red: Turn off auto scanning mode Status LED Green: Turn on auto scanning mode Receive IR signal IR receiver Display current selected input port LED display www.tesmart.com...
  • Page 3 By connecting to the LAN through this port, you can use the terminal device in the same LAN to send TCP/IP commands to LAN port control the switching of input port Turn on or off power supply Power switch www.tesmart.com...
  • Page 4: Connection Diagram

    Connection diagram www.tesmart.com...
  • Page 5: Specification

    Specification HKS1601A10 16x1 HDMI KVM Switch Functionality: Auto Scan Front panel buttons Keyboard hotkeys Port selection IR remote control Console commands RS232 / IP Technical: Max. Resolution 3840x2160@30Hz Auto to get EDID Data rate 10.2 Gbps Auto scan interval 5~3600 Seconds...
