- Page 1 User HDMI + USB-C KVM Switch Manual HCK0402A1U HCK0402A1U English...
- Page 3 English...
- Page 5 If you have any questions, comments or suggestions, please contact us via the following email: support@tesmart.com. Copyright Notice The user manual, compiled by Tesla Elec Technology Co.,Ltd, shall not be duplicated or translated by any person or organizations without written permission.
-
Page 6: Table Of Contents
Contents 1. Safety Tips and Warnings ··································01 9.4 Lock L/R Audio and USB Focus Function 2. Battery Description···········································02 9.5 Mouse Wheel Switching 3. Warranty Information········································03 9.6 Auto Scan Mode Description 4. Preface··························································04 10. Operation Method···········································26 5. Features·························································05 10.1 Front Panel Button Switching Method 6. -
Page 7: Safety Tips And Warnings
1. Safety Tips and Warnings Tips: Please read the safety tips and warnings for KVM Switch comprehensively before use. Use this produce in accordance with its instructions, safety tips and warnings to prevent unnecessary damage to the product and potential dangers to users. Keep the product away from water. -
Page 8: Battery Description
2. Battery Description Tips: By default, the remote control is not equipped with batteries, due to the safety requirements of some express companies. Install AAA dry cells before use. Caution: Improper disposal of the lithium battery may cause an explosion. Do not throw the battery into fire. -
Page 9: Warranty Information
3. Warranty Information We warrant this product as free of defects in material and workmanship for a period of one (1) year from the date of shipment. If during the period of warranty this product proves defective under normal use, we will repair or replace this product, provided that this product has not been subjected to mechanical, electrical, or other abuse or modifications. -
Page 10: Preface
PCs always having correct display information. Tips: If you need to control more computers or conduct more complex and professional switching, you can also choose other products of our company. For more details, please visit our official website: www.tesmart.com. -
Page 11: Features
5. Features Using 2 monitors, 1 set of keyboard and mouse to control 4 computers Ÿ Support resolution up to 3840x2160@60Hz 4:4:4 Ÿ HDMI 2.0 compliant Ÿ Support HDR 10 and Dolby Vision Ÿ Support 2 display modes, KVM mode and Matrix mode Ÿ... -
Page 12: Packing List
6. Packing List 1 * 4x2 HDMI + USB-C KVM Switch Ÿ 2 * KVM Cables Ÿ 3 * HDMI Cables Ÿ 3 * USB-C Cables Ÿ 1 * IR Extension Cable Ÿ 1 * IR Remote Control Ÿ 1 * 3 Pins Connector (For RS232) Ÿ... -
Page 13: Panel Description

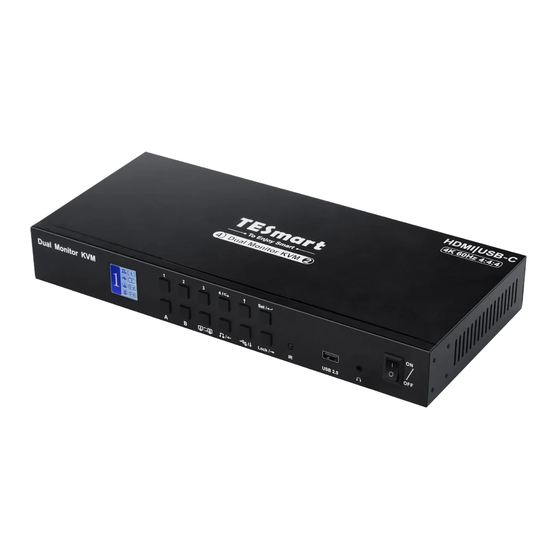

7. Panel Description Name Function Color LCD Display current status and function settings. Keypad Press to control the KVM. Please refer to Chapter 10.1 for the detail. IR receiver Receive IR remote signal. USB 2.0 port Connect to USB 2.0 device. L/R out Connect to L/R output device. - Page 14 Name Function DC 12V 12V DC power supply. Connect IR extension cable to this port to receive IR signal even IR extension in the KVM is installed in a rack. USB 2.0 ports Connect to USB 2.0 devices. Integrated microphone and L/R audio output which can connect Audio integration port such devices like headset.
- Page 15 Name Function RS232 port Connect RS232 cable to use RS232 commands to control the KVM. HDMI outputs Connect to 2 HDMI displays for video output. USB-C recharging Use USB-C cable to connect to PD charger. ports Input ports Connect the ports to corresponding devices for video signal transmit. USB ports Connect the ports to corresponding devices for USB signal transmit.
-
Page 16: Connection Description
8. Connection Description 8.1 Connection Diagram Control Terminal Tips: The PD charger is not Laptop Laptop i n c l u d e d i n t h e package. Please Charger refer to Chapter 9 3 . Headset USB-C RS232 for how to recharge . -
Page 17: Connection Preparation
8.2 Connection Preparation Take into consideration all devices required to be connected and prepare a workbench large Ÿ enough before the connection. Lay out the cables properly to facilitate the layout of power supply as a lot of power sockets Ÿ... -
Page 18: Connection Steps
8.3 Connection Steps 1. Connect PC1 and PC2 with 2 KVM cables and 2 HDMI cables, use HDMI end to connect PC1 and PC2 to the corresponding HDMI ports group on the KVM, use USB-A end to connect each PC and USB-B end to connect the KVM. 2 Connect PC3 with 1 USB-C cable and 1 HDMI cable. - Page 19 Connect PC4 with 2 USB-C cables. 4. Connect external mouse and keyboard to KVM's keyboard and mouse input port. Tips: For the normal service of hotkeys, we recommend you use the full-key external keyboard with a separate [Scroll Lock] key (as shown above...
- Page 20 5. Connect USB 2.0 devices to KVM's standard USB 2.0 ports. 6. Connect KVM's HDMI output ports to 2 HDMI displays with 2 HDMI cables.
- Page 21 7. Connect external audio device to KVM's L/R out port. 8. Connect the power cable to KVM's DC 12V port and plug it to a power socket. 9. By now, the connection has been completed. Turn on the power supply and the KVM Switch will begin to work.
-
Page 22: Kvm Workbench
8.4 KVM Workbench A workbench with 4x2 HDMI + USB-C KVM Switch successfully connected is shown as below:... -
Page 23: Function Description
9. Function Description 9.1 Display Mode Description The 4x2 KVM Switch support 2 display mode. You can choose to implement 2-screen extended display or duplicate display or display different PCs on 2 monitors. Display Mode 1: The KVM mode Duplicate displays Extend displays Display A Display B... - Page 24 Display Mode 2: The Matrix mode You can match any display and any input port at will at this mode. Here are 3 examples. 1. Matching mode (A-A,B-B) à Display A Display B PC1-Input A PC4-Input B The selected Input A/B are correspondingly displayed on Display A/B. 2.
- Page 25 3. Splitter mode à Display A Display B PC3-Input A PC3-Input A The 2 displays select the same input port. When different PCs are displayed on different monitors, you can double-click the Right-[Alt] on the keyboard connected to the KVM to switch the focus between different PCs.
-
Page 26: Interchange Display
9.2 Interchange Display The 4x2 KVM Switch support interchange the image displayed on the 2 monitors with 1 press. Display A Display B Display A Display B PC1-Input A PC2-Input B PC2-Input B PC1-Input A Tips: The 2 monitors will not interchange the image when the maximum resolutions supported by them are different. -
Page 27: Usb-C Pd Charge
9.3 USB-C PD Charge The 4x2 KVM switch has built-in charging modules, which are compatible with PD fast charging protocol, and is able to match voltage and current automatically based on the specifications of charging devices. It makes your recharging safe and avoid damage. You can connect 2 devices to be recharged to the recharging ports of the KVM Switch for fast recharging at the same time. - Page 28 Please insert one end of the original USB-C cables of the devices to the recharging port of KVM, and insert the other end to PD fast charging adapter. Plug the fast charging adapter into a power socket, and use a USB-C cable to connect the device to be recharged to the port below the recharging port.
-
Page 29: Lock L/R Audio And Usb Focus Function
9.4 Lock L/R Audio and USB Focus Function The 4x2 KVM Switch supports locking L/R audio and USB 2.0 focus. After the lock is turned on, the current audio or USB focus can be maintained and only the screen can be switched when switching;... -
Page 30: Mouse Wheel Switching
Tips: 1. The keyboard & mouse focus and USB focus are independent of each other, and the keyboard and mouse focus cannot be locked. When switching between different input sources in display mode 2, the keyboard and mouse focus will not change with the switch. 2. -
Page 31: Auto Scan Mode Description
9.6 Auto Scan Mode Description The Auto Scan feature can automatically switch the display at regular intervals between the input devices that are powered on and connected to the KVM. As a result, any input devices connected to each port can be monitored without user intervention. Auto scan mode is off by default. -
Page 32: Operation Method
10. Operation Method 10.1 Front Panel Button Switching Method When you use the front panel button or IR remote to control the KVM, the LCD display will inquiry your target action, then execute the command according to your operation. The LCD interface in the figure above is the main interface. - Page 33 Schematic table of LCD interface and panel icons: Icon Meaning and Function Icon Meaning and Function Monitor A/B and channel A/B in each input port Interchange display icon, press to interchange group. the image displayed on the 2 monitors. Keyboard and mouse focus icon, indicating the USB focus icon, indicating the PC where the PC where the keyboard and mouse focus is external USB 2.0 device focus is currently located.
- Page 34 1~4 button: 1. Press directly to switch among 4 PCs. After switching, 2 monitors will display the selected PC at the same time, i.e. the KVM mode. 2. In the settings interface, press [ ] to return to the main interface. Display selection button: Directly press the button to select the desired monitor, according to the prompt of the LCD screen, press the [1~4] button to select the desired PC,...
- Page 35 Audio lock button: 1. Directly press [ ] button, follow the prompts on the LCD screen, then press the ] button to lock the L/R audio to the current PC. Any operation after locking will not change the locked state. Press the key again in the locked state, and then press the [ ] button to unlock.
- Page 36 Lock button: 1. Press [ ] button to lock the KVM. After locking, all displays will be off, audio output will be paused, and LCD screen brightness will be reduced to a minimum, all buttons will be invalid. Press [ ] button again to light up the LCD screen, then enter the password to unlock.
- Page 37 2. In the menu and setting interface, press [ ] button to confirm. Tips: 1. Only numbers 1,2,3,4 on the front panel of the KVM are available when changing passwords. You can also set a password to null to unlock without a password. 2.
-
Page 38: Ir Remote Control
10.2 IR Remote Control —— Press the key [A] or [B] to select the desired monitor, according to the prompt of the LCD screen, press the [1~4] button to select the desired PC, then press [A] or [B] to make the selected monitor display the selected PC(i.e. -
Page 39: Rs232 Control
10.3 RS232 Control A. Connect RS232 port Follow the below diagram to connect the standard 9 pin RS232 port to the 3 pins connector which is included in package, then plug the connector to the ' ' port of the HDMI switch. RS232 Female RS232 connector pin assignment... - Page 40 The commands are as the following form(Hexadecimal): Index Command strings Parameter description Remark AA BB 02 01 XX: input port number (01~04) All outputs are switched to selected inputs XX: output port letter (0A~0B) Make the selected monitor display any one port AA BB 0 3 XX YY ZZ YY: input port number (01~04)
-
Page 41: Keyboard Hot Keys
10.4 Keyboard Hot Keys Use external keyboard hot keys to switch the input source or set up some other functions.. à Tips: The keyboard hot keys can only work with external keyboard correctly connected to the keyboard and mouse input port of the KVM. For the use of hot keys, we recommend you use an external keyboard with a separate [Scroll Lock] key. - Page 42 Switch PCs on different monitors separately(i.e. the Matrix mode): Monitor A：[Scroll Lock] →[Scroll Lock] →[←] →[1]~[8] Scroll Scroll Scroll ← Lock Lock Lock Monitor B：[Scroll Lock] →[Scroll Lock] →[→] →[1]~[8] Scroll Scroll Scroll → Lock Lock Lock Tips: 1. '←' stands for Display A, '→' stands for Display B. 2.
- Page 43 Turn on/off mouse wheel switching mode: Scroll Scroll Lock Lock [Scroll Lock] →[Scroll Lock] →[F6] Turn on auto scan mode: Scroll Scroll Space Lock Lock [Scroll Lock] →[Scroll Lock] →[Space] Tips: The default auto scan time interval is 6 seconds. You can change the time interval by setting on the LCD menu or following the step presented below.
-
Page 44: Change Hot Key Combination
11. Change Hot Key Combinations There are two kinds of trigger hot keys in this product, the default is [Scroll Lock] key, and the alternative is the [Right-Ctrl] key. If [Scroll Lock] Key has been used for other functions, you can switch the hot key to [Right-Ctrl] by: Method 1: Method 2:... -
Page 45: Pass Through Mode Description
12. Pass Through Mode Description 12.1 Introduction of Pass through mode Pass through mode is a built-in function of KVM, which is able to improve keyboard and mouse compatibility and enhance user experience. In the pass through mode, the keyboard and mouse are equivalent to directly connecting to the computer. At this time, you can use more keyboard and mouse functions and special functions that are not supported by traditional KVM. -
Page 46: Keyboard And Mouse Compatible Model List
12.2 Keyboard and Mouse Compatible Model List Tips: The following list is from the most representative models of keyboard and mouse that have been tested in the laboratory, mainly from manufacturers with a high market share. Model Brand Model Brand Model Brand Brand... - Page 47 31.00.0435-V003...
- Page 48 To Enjoy Smart HCK0402A1U Tesla Elec Technology Co.,Ltd WEEE-Reg.-Nr. DE 66784279...
