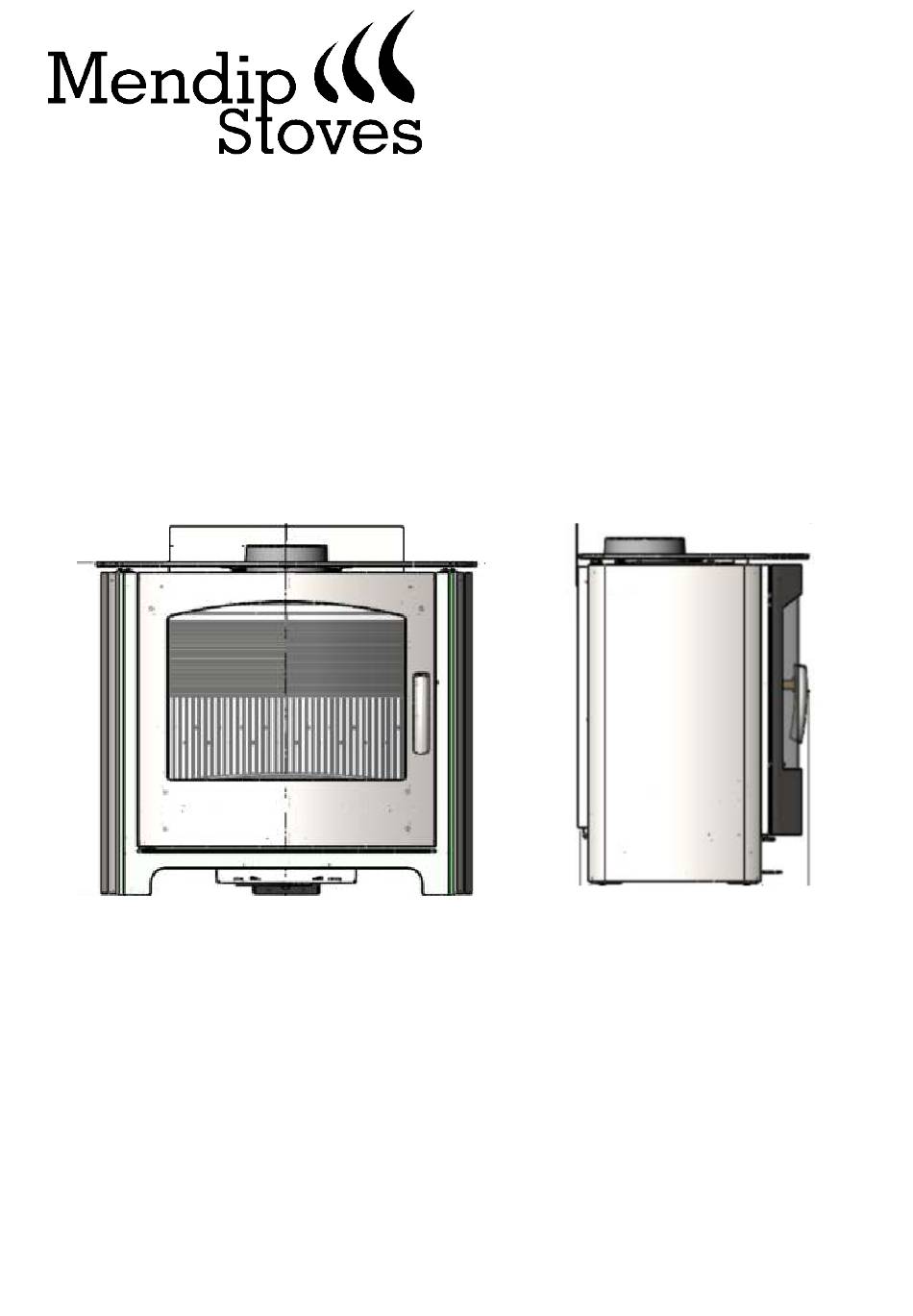

- Page 1 FROM OCTOBER 2018 Jan 2024 Version 1.3 OPERATION AND INSTALLATION MANUAL Woodburning and SE models Churchill 10 kW MK4 (SE) Churchill 10 kW Convec�on MK4 (SE) Churchill 10 kW Convec�on Logstore MK4 (SE) 1 of 20...
- Page 2 MENDIP STOVES 5 YEAR EXTENDED WARRANTY If you have purchased your stove from a Mendip Stoves registered retailer, then your stove will carry a 2 year warranty as standard. The 2 year warranty can be further extended to a total warranty period of 5 years by registering your Mendip Stove within one month of the la�er of the purchase date or installa�on date.
-
Page 3: Health And Safety Precautions
The glass on the stove is ceramic glass and able to withstand very high temperatures however it is not toughened and a hard impact could cause the glass to break. IMPORTANT: hese instruc�ons cover the basic principles to ensure the sa�sfactory installa�on of Mendip Stoves product :- Churchill 10 models, although detail may need slight modifica�on to suit par�cular local site condi�ons. - Page 4 Older proper�es, especially, may have chimney faults or the cross sec�on may be too large . Mendip Stoves recommend the use of a solid fuel flue lining system for all installa�on into exis�ng chimneys. All chimney systems must be used in accordance with Building Regula�ons Approved Document J.
- Page 5 STOVE PERFORMANCE & TESTING Mendip Stoves, The Churchill 10 Woodburning models are tested in accordance with EN 13240. Suitable for DEFRA Smoke Output Wood CO@13% O₂ Efficiency Particulates CxHyConc Fuel Control Zones @13% O2 @13% O₂ @13% O₂ 9.5kW 81.0% 0.09...
- Page 6 MINIMUM DISTANCE TO NON-COMBUSTIBLE MATERIALS The stove can be recessed in a suitable sized non - combus�ble fireplace but a permanent free air gap of at least 50mm must be le� around the sides, the top and the back of the stove; this is to facilitate a reasonable heat output and allows access to the stove for removal and maintenance.
- Page 7 STOVE DIMENSIONS AND CONNECTION MEASUREMENTS CHURCHILL CHURCHILL CHURCHILL 10 CONVECTION LOGSTORE CONVECTION HEIGHT 665mm 665mm 1052mm 759mm 759mm 686mm WIDTH 696mm 779mm 779mm 358mm 358mm 358mm DEPTH 482mm 482mm 482mm 478mm 478mm 478mm 150mm 150mm 150mm Flue Collar CENTRE OF FLUE TO REAR OF STOVE 142mm 142mm 142mm...
-
Page 8: Commissioning And Handover
Connec�on to chimney Mendip Stoves are built with a top flue outlet as standard, this can be altered to a rear connec�on by removing the top collar, rear cover plate then exchanging collar and plate. Care should be taken to ensure an air�ght fit when refi�ng collar and plate. - Page 9 OPERATING YOUR STOVE - THE MK.4 AIR CONTROL LEVER The Universal air controller provides air control for the whole stove from a single lever. The Lever has two key opera�ons Increased Air Supply Decreased Air Supply Moving the control lever in and out Sliding the control lever in reduces and out increases the total...
- Page 10 HOW TO LIGHT YOUR WOODBURNING STOVE Note: If the chimney is externally fi�ed or the stove has been installed on a larger diameter clay chimney liner then on cold days it maybe necessary to warm the flue using firelighters prior to ligh�ng with wood. .
-
Page 11: Warning Note
HOUSE COAL AND PETROLEUM COKE ARE NOT SUITABLE FOR USE ON THIS STOVE; ITS USE WILL INVALIDATE THE GUARANTEE. OVERNIGHT BURNING Mendip Stoves do not recommend Mendip stoves do not recommend that their stoves are burnt overnight. 11 of 20... -
Page 12: Troubleshooting
RE-FUELLING WHEN BURNING WOOD Adding fuel to your stove when you only have glowing embers,and the flames have died down, is the cleanest way to refuel your stove. 1. Before refuelling, open the Universal Air Control (UAC) fully and slide to the central posi�on. 2. - Page 13 13 of 20...
-
Page 14: Maintenance
MAINTENANCE Mendip stoves recommends that your model needs to have the ash removed from the stove at regular intervals (weekly if used daily). Allowing the ash pan to over flow can impede the func�on of the stove and can cause possible damage to the stove grate and ash pan. - Page 15 The SE appliances include a modified air control to prevent closure of the secondary air control, altera�ons should not be a�empted. Mendip Stoves smoke control stoves should not be burnt with the door le� open.:- Churchill 10 : This stoves requires a restric�on of travel of 5mm...
- Page 16 CHURCHILL10 MK.4 COMBUSTION CHAMBER VERMICULITE BRICKS REFERENCE TABLE CODE DESCRIPTION PARTS / LES PIÈCES Churchill 10 M90036-02-00-99-05 Full Brick Set - CHU/LOX 10 Mk.4 M90036-02-23-99-02 Rear Brick Pair M90036-02-24-99-04 Side Brick Set (Inc. 3 x front bricks) M90036-02-26-99-02 Baffle Brick Pair To find out more details, as well as to get prices and availability of these parts, please visit: www.eurostove.co.uk/mp-lox-chu-10-mk4-spare-bricks 16 of 20...
- Page 17 HOW TO REMOVE THE WOOD BURNERS INTERNAL PARTS To remove the vermiculite brick set take the following steps: Remove both of the vermiculite baffle bricks by li�ing and �l�ng each brick in turn. To create more room to remove the first brick, li� up the adjacent baffle and rest a larger amount on the side brick. It is now possible to remove both side bricks;...
- Page 18 CHURCHILL MK.4 DOOR ASSEMBLY 18 of 20...
-
Page 19: Loose Parts
STOVE PARTS, COMBUSTION CHAMBER, ASSEMBLY "This sec�on shows the parts contained in your stove, each stove has over 80 spare-parts and, each part is detailed. When new parts are required the sec�on will allow spares to be recognised and ordered. As a further source of reference please visit www.eurostove.co.uk for latest spare-part informa�on. - Page 20 Mendip Stoves Ltd. Unit H1 Mendip Industrial Estate Mendip Road Rooksbridge Somerset BS26 2UG Website www.mendipstoves.co.uk Email info@eurostove.co.uk Telephone 01934 750 500 CODE: M90600-49-00-99-01 CHU/LOX 8 & 10 Mk.4 Manual - Version 1.3 - Jan 2024...
