OPERATION AND INSTALLATION MANUAL

WOOD-BURNING & SMOKE EXEMPTION MODELS

WOODLAND DUAL CONTROL DOUBLE SIDED

WOODLAND DUAL CONTROL DOUBLE SIDED LOG-STORE

The Woodland Dual Control Double sided

The Woodland Dual Control Double sided Log-store

1 of 32

- M00730-00-00-00-01

- M00733-00-00-00-01

Need help?

Do you have a question about the Woodland Dual Control Double sided and is the answer not in the manual?

Questions and answers

Summary of Contents for Mendip Stoves Woodland Dual Control Double sided

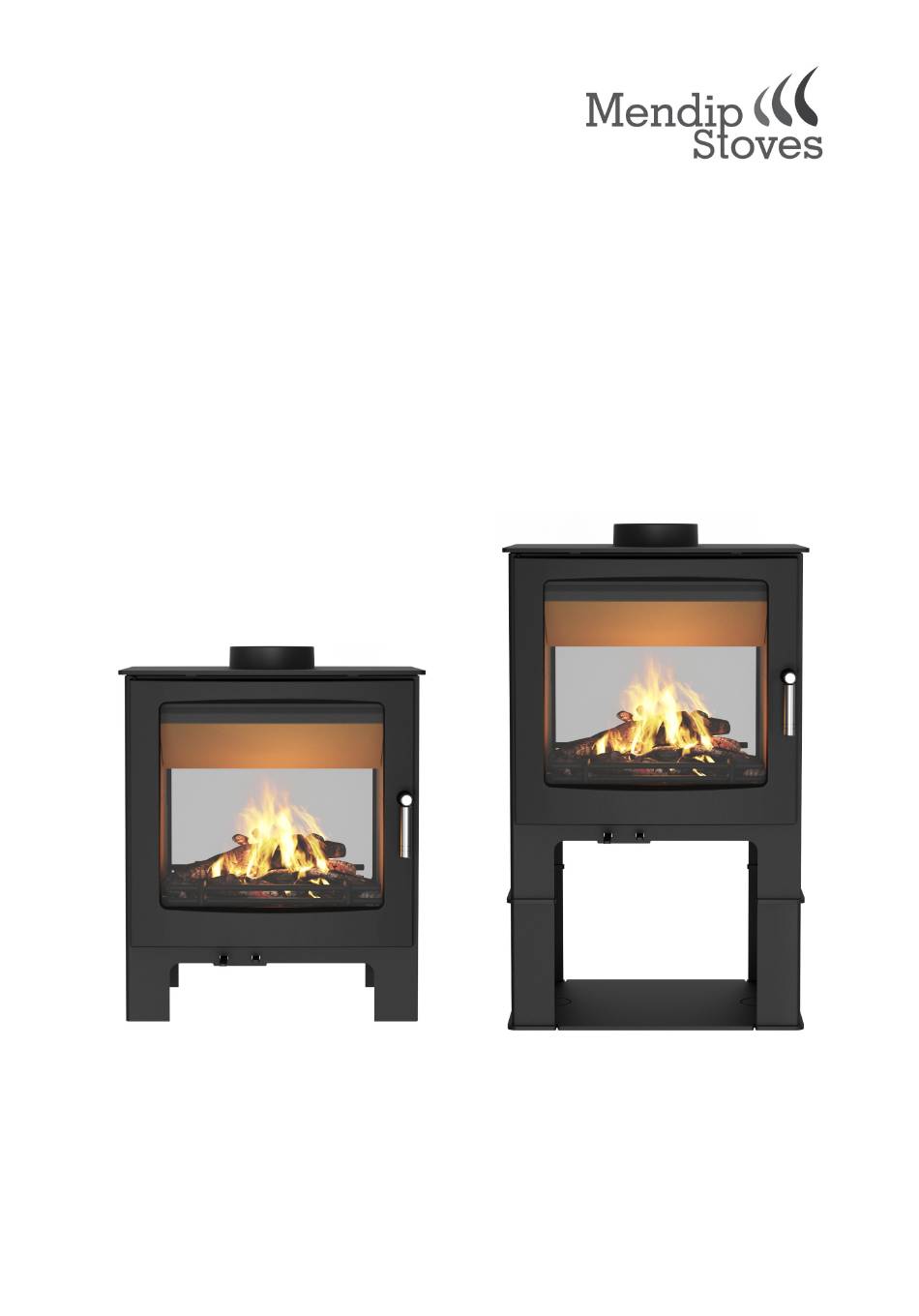

Page 1 OPERATION AND INSTALLATION MANUAL WOOD-BURNING & SMOKE EXEMPTION MODELS WOODLAND DUAL CONTROL DOUBLE SIDED & WOODLAND DUAL CONTROL DOUBLE SIDED LOG-STORE The Woodland Dual Control Double sided - M00730-00-00-00-01 The Woodland Dual Control Double sided Log-store - M00733-00-00-00-01 1 of 32...
Page 2 WOODLAND DUAL CONTROL DOUBLE SIDED Stove dimensions and loca�ons of external air intake ports External air intake is 80mm Air intake can be either side and the central posi�on. An addi�onal shroud is available to hide air intake pipe Flue Outlet 150mm...
Page 3 WOODLAND DUAL CONTROL DOUBLE SIDED LOG-STORE Stove dimensions and loca�ons of external air intake ports External air intake is 80mm Air intake can be either side. An addi�onal shroud is available to hide air intake pipe Flue Outlet 150mm Both doors open...
Page 4 Year Extended Warranty When you purchase your stove from a Mendip Stoves registered retailer, then your stove will carry a 2 year warranty as standard. The 2 year warranty can be further extended to a total warranty period of 5 years by registering your Mendip Stove within one month of the purchase date.
Page 5 IMPORTANT: These instruc�ons cover the basic principles to ensure the sa�sfactory installa�on of the Mendip Stoves Woodland Double sided Model , although detail may need slight modifica�on to suit a par�cular local site condi�ons.
Page 6 Installing the Woodland Dual Control Double sided stove Adjustable legs The Woodland DC Double Sided (and log store) wood burning stove is fi�ed with adjustable feet allowing the stove to be installed on an uneven floor. To adjust the legs, prior to installa�on, wind down the M8 bolts using a 13mm spanner so they protrude just below the the stove legs, (on the log-store model M8 grub screws are in each corner and can be adjust from inside the log-store) .
Page 7 Older proper�es, especially, may have chimney faults or the cross sec�on may be too large . Mendip Stoves recommend the use of a solid fuel flue lining system for all installa�on into exis�ng chimneys. All chimney systems must be used in accordance with Building Regula�ons Approved Document J.
Page 8 Flue outlet posi�ons The flue outlet should be above the roof and in such a posi�on where the products of combus�on may be discharged freely what ever the wind direc�on. The discharged products of combus�on must not present a fire hazard.
Page 9 Stove Performance & Tes�ng Woodland DC DS is tested in accordance with EN 13240 +. It is recommended as suitable for use in smoke control areas when burning wood logs and when fi�ed with a mechanical stop to prevent closure of the secondary air control beyond 30mm : Output Efficiency...
Page 10 MINIMUM DISTANCE TO NON-COMBUSTIBLE MATERIALS The stove can be recessed in a suitable sized non-combus�ble fireplace but a permanent free air gap of at least 50mm must be le� around the sides, the top and the back of the stove; this is to facilitate a reasonable heat output and allows access to the stove for removal and maintenance.
Page 11 HOW TO FIT A WOODLAND DOUBLE SIDED LOGSTORE Remove the internal components from stove and fill the chamber with material to prevent the bricks from falling. Addi�onally, prepare a so� elevated surface. Tilt the stove onto it’s side to allow easy and safe access to the feet.
Page 12 HOW TO FIT A WOODLAND DOUBLE SIDED CLOSED COMBUSTION UNIT To fit closed combus�on air box follow stage 1 & 2 from ‘HOW TO FIT A LOGSTORE’ instruc�ons. Remove, Convec�on panel below stove. Replace with closed air box. Choose which port for the air intake you wish to use, the box will rotate to allow 3 posi�ons.
Page 13 However as this stove needs the door to be ajar when ligh�ng, combus�on air is taken from the room when reloading. Mendip stoves recommends the use of an addi�onal air vent as laid out in Document J . The stove requires a permanent air vent to the room . This is to provide an adequate air supply in order for the stove to operate safely and efficiently.
Page 14 OPERATING YOUR STOVE - SUITABLE FUELS - Woodland Dual Control Double sided The Universal air control provides air control for the whole stove from a single lever. The Lever has two key opera�on Moving the control lever in and out Sliding the control lever in reduces and out increases the total amount of combus�on air in the stove.
Page 15 Use the glove when opera�ng the air controls and door. Door unlatched giving 2mm air MENDIP STOVES RECOMMEND THE USE OF A FLUE THERMOSTAT TO CHECK YOUR STOVE IS NOT OVERHEATING. PLACE THE FLUE THERMOSTAT DIRECTLY ABOVE THE COLLAR OF THE STOVE AND REFER TO THE TEMPERATURE GAUGE ON PAGE 8.
Page 16 Clean Air Act requirements. The Woodland Dual Control double sided stove has been recommended as suitable for use in smoke control areas whenburningwood logs. The appliance has been fi�ed with a modifica�onto fix the air controls to a minimum posi�on,...
Page 17 INCOMPLETE COMBUSTION If the air controls on your stove are closed too much incomplete combus�on may lead to a build-up of hard, shiny soot on the inside of your stove and glass. To prevent soo�ng of the chamber and glass introduce:- 1) more secondary air, 2) check that your fuel is suitable and dry.
Page 18 TROUBLE SHOOTING 3) Soot forms on the window the firewood may be too wet Fire Will Not Burn - check the intake of secondary air may be insufficient the air inlet is not obstructed in any way, the fire is not hot enough that the chimney and flue ways are clear, that a suitable fuel is being used, 4) The stove fails to heat fully...
Page 19 MAINTENANCE Mendip Stoves recommends that your model needs to have the ash removed from the stove at regular intervals (weekly if used daily). Make sure the stove is completely cold before cleaning out ash (embers can remain hot for over 24 hours). Ash must be stored in a non-combus�ble container and must not be mixed with other combus�ble waste.
Page 20 STOVE PARTS, COMBUSTION CHAMBER, ASSEMBLY This sec�on shows the parts contained in your stove, each stove has over 80 spare-parts and, each part is detailed. When new parts are required the sec�on will allow spares to be recognised and ordered. As a further source of reference please visit www.eurostove.co.uk for latest spare-part informa�on.
Page 21 HOW TO REMOVE A VERMICULITE BRICK SET To remove a vermiculite brick set take the following steps 1) Remove log retainers, 2) Removebasevermiculitepanels Remove baffle bricks li�ing baffle plates, slide to one side, will now come out easily. Remove side bricks. To remove the catalyst 4.
Page 22 Defra air control stop for smoke control areas DEFRA STOP POSITION - USED FOR SECONDARY DEFRA STOP POSITION - USED FOR SECONDARY AIR LOW OUTPUT TESTS AIR LOW OUTPUT TESTS SECONDARY OUT open / in closed DEFRA STOP DEFRA STOP M6 GRUB SCREW M6 GRUB SCREW STOP...
Page 23 WOODLAND DOUBLE SIDED DC SPARE PARTS DIAGRAM See separate page See separate page See separate page REFERENCE OUTLET TUBE See separate page 23 of 32...
Page 24 ITEM NO. PART No. DESCRIPTION M6X25 HEX. FLANGE SCREW ES-00-0-02 6 INCH FLUE ES-800-119-0 TOP PLATE CAP 3 X 8 ROPE SEAL ES-700-196-0 TOP PLATE ASSY. M5X12 HEX. FLANGE SCREW ES-700-155-0 TOP CORNER SEAL PATE 3X3 ROPE SEAL ES-500-179-2 HEAT DEFLECTOR M6X12 HEX FLANGE SCREW ES-500-140-1 LOG RETAINER...
Page 25 AIR CONTROL ASSEMBLY 25 of 32...
Page 26 INTERNAL FIREBRICK ASSEMBLY ITEM NO. PART No. DESCRIPTION SIDE BRICK - DOOR HANDLE ES-700-401-0 ES-700-403-0 BASE BRICK SIDE BRICK - DOOR HINGE SIDE ES-700-402-0 BAFFLE ES-700-404-0 ES-700-159-0 CATALYST BOX INCLUDING M90570-02-70-00-00 CATALYST 23-10-69-0 CATALYST REMOVABLE SIDE ONLY 26 of 32...
Page 27 LOG-STORE ASSEMBLY ITEM NO. PART No. DESCRIPTION ES-700-169-0 LOG STORE CONVECTOR SIDE PLATE ES-700-166-0 WOODLAND DOUBLE SIDED LOG-STORE LEG ASSEMBLY ES-700-134-0 DECORATIVE AIR INTAKE COVER PLATE M8 DECORATIVE BASE PLATE ADJUSTABLE SCREWS ES-700-171-0 27 of 32...
Page 28 WOODLAND DOOR ASSEMBLY CODE DESCRIPTION ES-500-220-1 Door X 2 ES-500-209-3 Handle Complete (threaded) X 2 Grub Screw M5 X12mm X 2 14 mm Door Rope Seal X 2 10mm x 2mm Glass rope seal X 2 ES-500-501-1 4mm Glass X 2 Glass Clamp Pads x 12 CH-500-120-0 Glass Clamp x 12...
Page 29 Unit H2, Mendip Industrial Estate, Mendip Road. Rooksbridge BS26 2UG United Kingdom Name: Woodland Double sided DC Nom: Woodland Double sided DC Log-store Product Code: M00730-00-00-00-01 Code de produit: M00733-00-00-00-01 Nominal Output: W/A 9.3kW wood Puissance nominale: B/C Specified Fuels: Wood Carburants précisés: Efficiency: W/A...
Page 30 WOODLAND DOUBLE SIDED DC (DUAL CONTROL) Type, batch or serial number: Intended use of the product: Heat distribution/room heating. Without hot water supply. Mendip Stoves Name and Address of the manufacturer: Eurostove Ltd Unit H1, Mendip Industrial Estate, Rooksbridge, Somerset BS26 2UG...
Page 31 Rooksbridge OCTOBER 2024 (Date and place of Issue) Signature DECLARATION: The performance of the product identified in points 1 and 2 in conformity with the declared performance in point 8. This declaration of performance is issued under the sole responsibility of the manufacturer iden�fied in point 4.
Page 32 Mendip Stoves Ltd. Unit H1 Mendip Industrial Estate Mendip Road Rooksbridge Somerset BS26 2UG Website www.mendipstoves.co.uk Email info@eurostove.co.uk Telephone 01934 750 500 M10730-49-00-99-00 Woodland Dual Control Double sided Manual - 32 of 32...

This manual is also suitable for:

Woodland dual control double sided log-store M00733-00-00-00-01 M00730-00-00-00-01
