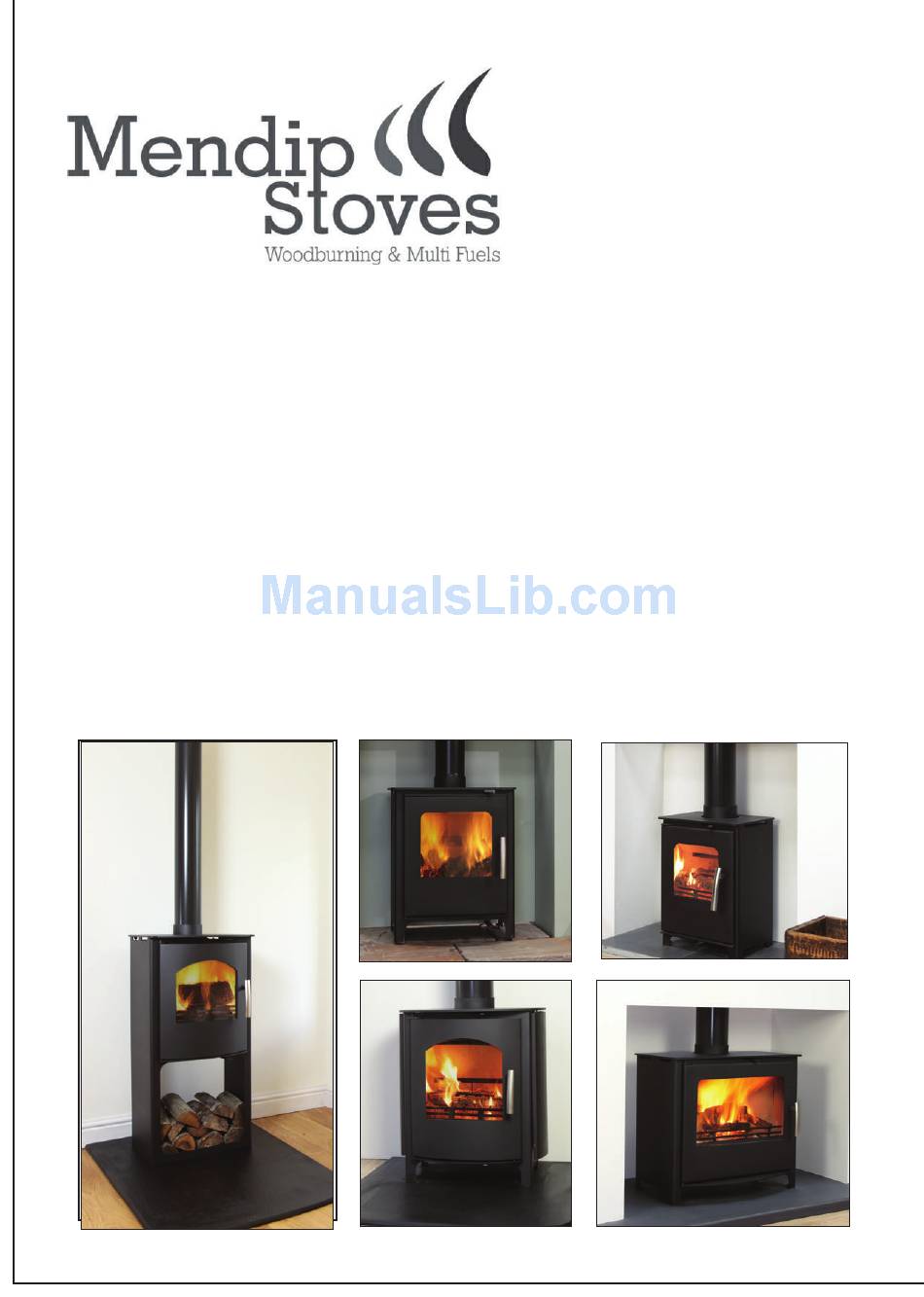

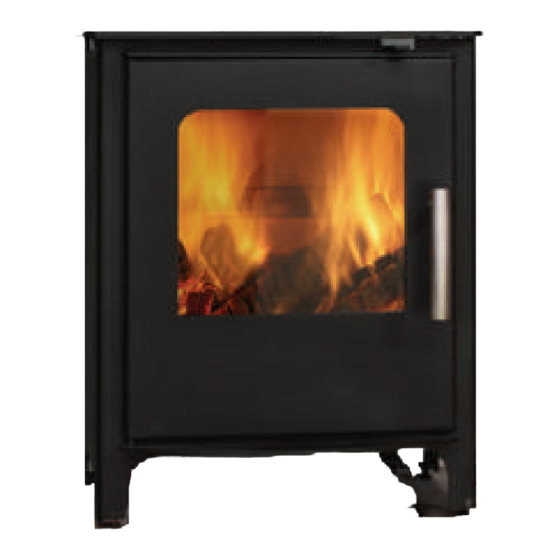

- Page 1 OPERATION AND INSTALLATION MANUAL Multi-fuel and SE models Loxton 3, 5, 6, 8 & 10 Churchill 5, 6, 8 & 10 Sqabox unO, duO...
- Page 2 This manual refers to the stoves listed above, which are tested in accordance with EN 13240. Congratulations on your purchase of a new stove from Mendip Stoves. Please read this manual carefully to ensure that you get maximum enjoyment from your new stove and to prevent any problems. Please note that “all local regulations, including those referring to national and European Standards, need to be complied with when installing this appliance”.
-
Page 3: Health And Safety Precautions
The use of any aerosol around lit stove is dangerous and care must be take in handling aerosols. hese instructions cover the basic principles to ensure the satisfactory installation of the Mendip Stoves Ltd :- Churchill , Loxton and Sqabox models, although detail may need slight modification to suit particular local site conditions. - Page 4 STOVE PERFORMANCE & TESTING MENDIP STOVES Loxton & Churchill stoves are approved and tested in accordance with EN 13240. Efficiency CO@13% Recommended CO@13% o2 Output Output coal for smoke control Efficiency wood fuel fuel Oct 2012 Loxton 3 3.2kw 86.0% 0.25...
- Page 5 Flue and Chimney connection to your stove The outlet from the chimney should be above the roof of the building in accordance with the provisions of Building Regulations Approved Document J. If installation is into an existing chimney then it must be sound and have no cracks or other faults which might allow fumes into the house.
- Page 6 If the stove has not been used for some time the flue should be checked for blockages before use. Do not modify the appliance; only use spares authorised by the manufacturer. F Ped Loxton 3 525mm 380mm 280mm...
- Page 7 . There are no European rules regarding the minimum distance to non-flammable walls, Mendip Stoves recommend leaving a gap of at least 10 cm behind and to sides of stove.
- Page 8 Connection to chimney Mendip Stoves are factory set up with a top flue outlet, this can be altered from top to rear connection, remove the top collar and rear cover plate and exchanging collar and plate. Care should be taken to ensure an airtight fit when refitting collar and plate.
- Page 9 DO NOT BURN HOUSE COAL. DO NOT BURN HOUSEHOLD WASTE, THIS APPLIANCE IS NOT AN INCINERATOR. MENDIP STOVES RECOMMEND THE USE OF A FLUE THERMOSTAT TO CHECK YOUR STOVE IS NOT OVERHEATING. PLACE FLUE THERMOSTAT DIRECTLY ABOVE COLLAR OF STOVE AND REFER TO TEMPERATURE GAUGE ON PAGE 4.
- Page 10 R E-FUELLING ( wood) To re-fuel your stove in the cleanest way. Only refuel your stove when flames have died down and you have glowing embers. Before refuelling, open secondary air slider fully . Open door gently, add two pieces of wood (see weight table page 3) and close the door. Once the flames from the logs are fully established the secondary air supply can be adjusted to the desired setting .
- Page 11 Mendip stoves ltd do not recommend burning coal in a slumbering position, Mendip stoves are designed to burn wood and quality registered smokeless fuels. Wood burns more efficiently and cleanly if it is burnt hotter. Mendip stoves do not recommend that their stoves are burnt overnight for this reason.
-
Page 12: Air Controls
AIR CONTROLS Secondary air Left open / right closed Tertiary air Permanently open Primary air Left open / right closed DOOR OPERATION When opening the door of your Mendip To Open door lift handle. stove always wear the glove that is To close push door closed and provided to protect your hand from push handle down until located... - Page 13 Maintenance Mendip stoves recommends that the Churchill, Loxton & Sqabox models need to have the ash removed from the stove at regular intervals (weekly if used daily). Allowing the ash pan to over flow can impede the function of the stove and can cause possible damage to the stove grate and ash pan.
- Page 14 Trouble shooting 1. Fire Will Not Burn - check a) the air inlet is not obstructed in any way, b) that chimney and flue ways are clear, c) that a suitable fuel is being used, d) that there is an adequate air supply into the room, e) that an extractor fan is not fitted in the same room as the fire.
- Page 15 HETAS Ltd Approval These appliances have been approved by HETAS Ltd as an intermittent operating appliance for burning both wood and smokeless fuels only. HETAS recommended fuels: Please note that HETAS Ltd Appliance Approval only covers the use of wood logs and approved smokeless fuels on this appliance.
- Page 16 Eurostove Ltd Tel: 01934 750 500 Unit H1, Fax: 01173 156 207 Mendip Industrial Estate, www. Mendipstoves.co.uk Mendip Road, Rooksbridge, Somerset E-mail : info@mendipstoves.co.uk BS26 2UG Mendip Stoves Ltd, 2013, ver 5 April 2013...
