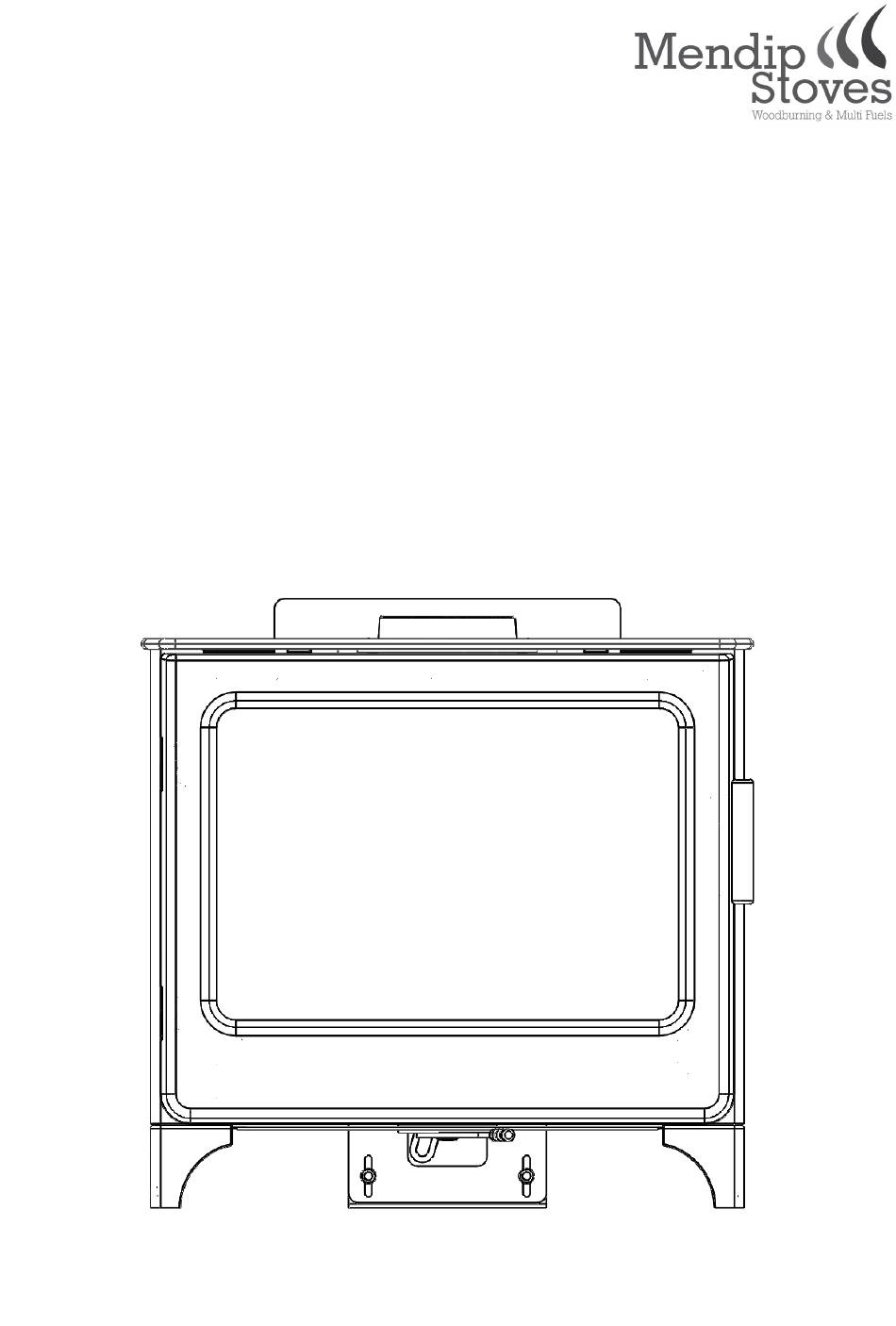

- Page 1 OPERATION AND INSTALLATION MANUAL Guide d’u�lisa�on et Mode d'Emploi WOODBURNING & SMOKE EXEMPTION MODELS ASHCOTT WIDE & ASHCOTT WIDE PEDESTAL...
- Page 2 ASHCOTT ASHCOTT WIDE LOGSTORE HEIGHT /Hauteur 597 mm 850 mm HEIGTH to collar / Hauteur au col 597 mm 872 mm WIDTH Top Plate/ Largeur 619 mm 619 mm WIDTH Body / Largeur 600 mm 600 mm DEPTH (front of door to conv panel) / Profondeu...
- Page 3 This manual refers to the Ashco� Wide, which is tested in accordance with EN 13240. Thank you for purchasing your new stove from Mendip Stoves. Please read this manual carefully to ensure that you get maximum enjoyment and performance from your new stove and to prevent any poten�al opera�onal problems. Please note that “all local regula�ons, including those referring to na�onal and European Standards, need to be complied with...
-
Page 4: Important Warning
IMPORTANT: These instruc�ons cover the basic principles to ensure the sa�sfactory installa�on of Mendip Stoves product :- Ashco� Wide Model , although detail may need slight modifica�on to suit par�cular local site condi�ons. -
Page 5: Adjustable Legs
Install ing t he A s hco tt W i de stove Adjustable legs The Ashco� Wide wood burning stove is fi�ed with adjustable legs allowing the stove to be installed on an uneven floor. To adjust the legs, prior to installa�on, wind down M8 bolts using a 13mm spanner so they protrude just below the the stove legs. - Page 6 . Mendip Stoves recommend the use of a solid fuel flue lining system for all installa�on into exis�ng chimneys. All chimney systems must be used in accordance with Building Regula�ons Approved Document If an exis�ng chimney is used the chimney must be clear of obstruc�on and be swept clean immediately...
- Page 7 Flue Outlet Posi�ons The flue outlet should be above the roof and in such a posi�on where the products of combus�on may be discharged freely what ever the wind direc�on. The discharged products of combus�on must not present a fire hazard. Great care should be taken where the weather surface may easily ignite. Point where flue passes through Clearances to flue outlet weather surface (Note 1,2)
- Page 8 STOVE PERFORMANCE & TESTING Ashco� Wide is tested in accordance with EN 13240. It is recommended as suitable for use in smoke control areas when burning wood logs and when fi�ed with a mechanical stop to prevent closure of the secondary air control beyond : Output Efficiency...
- Page 9 12 mm thick, in accordance with Building Regula�ons Approved Document J, to a distance of 30 cm in front of the stove and 15 cm to each side measuring from the door of the combus�on chamber. INSTALLING THE ASHCOTT WIDE IN A CORNER POSITION OR AGAINST COMBUSTIBLE WALL 300mm...
- Page 10 However as this stove needs the door to be ajar when ligh�ng and combus�on air is taken from the room when reloading. Mendip stoves recommends the use of an addi�onal air vent as laid out in Document J .
-
Page 11: Commissioning And Handover
COMMISSIONING AND HANDOVER Ensure all loose parts (bricks and grates) are fi�ed in accordance with the instruc�ons given in this instruc�on booklet. On comple�on of the installa�on allow a suitable period of �me for any fire cement/silicon and mortar to cure, a small fire may be lit to check that smoke and fumes are taken from the stove up the chimney and emi�ed safely into the atmosphere. -
Page 12: Air Control
ASHCOTT WIDE: AIR CONTROLS Lever in le� posi�on - secondary air fully open Lever in right posi�on - secondary air closed OPERATING YOU STOVES - TWO CONTROLS Air Control The air control for the Ashco� model is a single control lever. The Lever operates by moving from le� to right . - Page 13 Check load weights for your model on the table on page 8. Use the glove when opera�ng air controls and door. MENDIP STOVES RECOMMEND THE USE OF A FLUE THERMOSTAT TO CHECK YOUR STOVE IS NOT OVERHEATING. PLACE FLUE THERMOSTAT DIRECTLY ABOVE COLLAR OF STOVE AND REFER TO TEMPERATURE GAUGE ON PAGE 8.
- Page 14 RE-FUELLING WHEN BURNING WOOD To re-fuel your stove in the cleanest way only refuel your stove when flames have died down and you have glowing embers. Before refuelling, open the air control fully (slide to the le�). Unlatch the door to equalise pressure with the room.
-
Page 15: Fuel Overloading
The refuelling procedure : - Allow the newly charged fuel to burn with the secondary air control set at maximum for up 3 to 4 minutes. A�er this period, with flames from the logs fully established, close the secondary air supply to the low output se�ng. -
Page 16: Overnight Burning
Mendip Stoves are designed to burn wood. Wood burns more efficiently and cleanly when it is burnt ho�er, the typical burn cycle of a wood load is 1 hour. Mendip Stoves do not recommend that their stoves are burnt overnight for this reason. As a night �me regime we recommend that the fire is loaded when hot and burnt for five minutes with the secondary air control fully open un�l the new wood has taken and is... -
Page 17: Troubleshooting
TROUBLE SHOOTING Fire Will Not Burn - check the air inlet is not obstructed in any way, that chimney and flue ways are clear and the catalyser is not clogged with ash, that a suitable fuel is being used, that there is an adequate air supply into the room, that an extractor fan is not fi�ed in the same room as the fire. -
Page 18: Maintenance
MAINTENANCE Mendip Stoves recommends that your model needs to have the ash removed from the stove at regular intervals (weekly if used daily). Allowing the ash pan to over flow can impede the func�on of the stove and can cause possible damage to the stove bo�om bricks and ash pan. To remove ash pan use heat protec�ng glove provided. - Page 19 STOVE PARTS, COMBUSTION CHAMBER, ASSEMBLY PIÈCES DÉTACHÉES, VUE ÉCLATÉES This sec�on shows the parts contained in your stove, each stove has over 80 spare-parts and, each part is detailed. When new parts are required the sec�on will allow spares to be recognised and ordered. As a further source of reference please visit www.eurostove.co.uk for latest spare-part informa�on.
- Page 20 ASHCOTT- COMBUSTION CHAMBER/ CHAMBRE DE COMBUSTION INTÉRIEUR Fig 4 HOW TO REMOVE A VERMICULITE BRICK SET (M10570-02-00-00-00) MONTAGE ET DÉMONTAGE DE L’INTÉRIEUR (M10570-02-00-00-00) To remove a vermiculite brick set take the following steps: Pour enlever un ensemble de briques vermiculites suivez les étapes: Remove Baffle brick (1) by li�ing up brick and sliding forward, then �lt brick slightly to remove.
- Page 21 ASHCOTT- COMBUSTION CHAMBER/ CHAMBRE DE COMBUSTION INTÉRIEUR To remove the catalyst for cleaning and sweeping the flue take the following steps: Pour re�rer le catalyseur pour le ne�oyage et le balayage de la cheminée, procédez comme suit: Remove the 2 (M6) bolts (Fig 4, #8) and lower the catalyser housing from the roof of the stove. Re�rez les 2 boulons (M6) (Fig 4, #8) et abaissez le boî�er du catalyseur du toit du poêle.
-
Page 22: Door Assembly
DOOR ASSEMBLY Door Assembly ITEM NO. MENDIP STOVE CODE DESCRIPTION (ENG) DESCRIPTION (FR) M10570-06-01-00-00 ASHCOTT DOOR Porte Ashco� M10570-06-04-00-00 HANDLE Poignée M10570-01-01-99-00 GLASS Vitre M10570-06-32-00-00 COMPLETE DOOR SEAL Jointe de porte M10570-01-02-00-00 GLASS SEAL Jointe de vitre M10560-01-13-99-00 GLASS CLAMP Serre de vitre U91002-00-00-31-00 M6 WASHER... - Page 24 Mendip Stoves Ltd Unit H1, Tel: 01934 750 500 Mendip Industrial Estate, Fax: 01173 156 207 Mendip Road, Rooksbridge, Somerset www. Mendipstoves.co.uk BS26 2UG E-mail : info@mendipstoves.co.uk france@eurostove.co.uk www.eurostove.fr www.eurostove.co.uk Product code: M10570-49-00-99-00 Mendip Stoves Ltd, 2019, ver 1 Nov 2019...
