- Page 1 Versa Flex Dinette OEM INSTALLATION MANUAL...

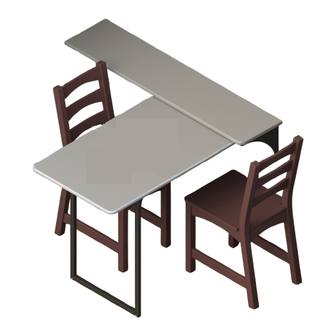

- Page 2 Operation Introduction The Versa Flex Dinette is a dinette table for use with OEM-supplied tabletops. The main table is equipped with rollers and can slide front to back and side to side to fully optimize interior space. The Versa Flex Dinette's wall guide track length can vary depending on the unit floor plan requirement.
-
Page 3: Installation
Resources Required • 1-2 persons, depending on task • 9 #10 x 1" button head screws for wood studs, • Cordless or electric drill or screwdriver or 9 #10 x 1" self-tapping button head screws for • Appropriate drive bits aluminum studs •... - Page 4 Using 3 #10 x 2" button head screws, secure the OEM-supplied shelf support (Fig. 3A) to the wall adjacent to the wall guide track. NOTE: The top face of the shelf support must be 3/4" higher than the top edge of the wall guide track (Fig. 3B). Fig.
- Page 5 Place the tabletop upside down on a flat surface. Position the sliding assembly squarely on the tabletop, with the guide tracks (Fig. 5A) at the end of their travel. Ensure that the distance from the edge of the tabletop to the outside edge of the sliding assembly (Fig. 5C) is 1/2" less than the width of the shelf (Fig.
- Page 6 Place the OEM-supplied shelf (Fig. 8A) on top of the shelf support and shelf mounting bracket. Fig. 8 Secure the shelf to the shelf support (Fig. 9A), using 3 #10 x 1 1/2" wood screws. 10. Secure the shelf to the shelf mounting bracket (Fig. 10A), using 3 #10 x 1/2" wood screws. Fig.
-
Page 7: Operation
Operation The Versa Dinette can be moved front to back and side to side to provide a versatile workspace or table (Fig. 11). Fig. 11 Page 7 Rev: 07.09.24 CCD-0008901... - Page 8 Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available for free download from lippert.com.
