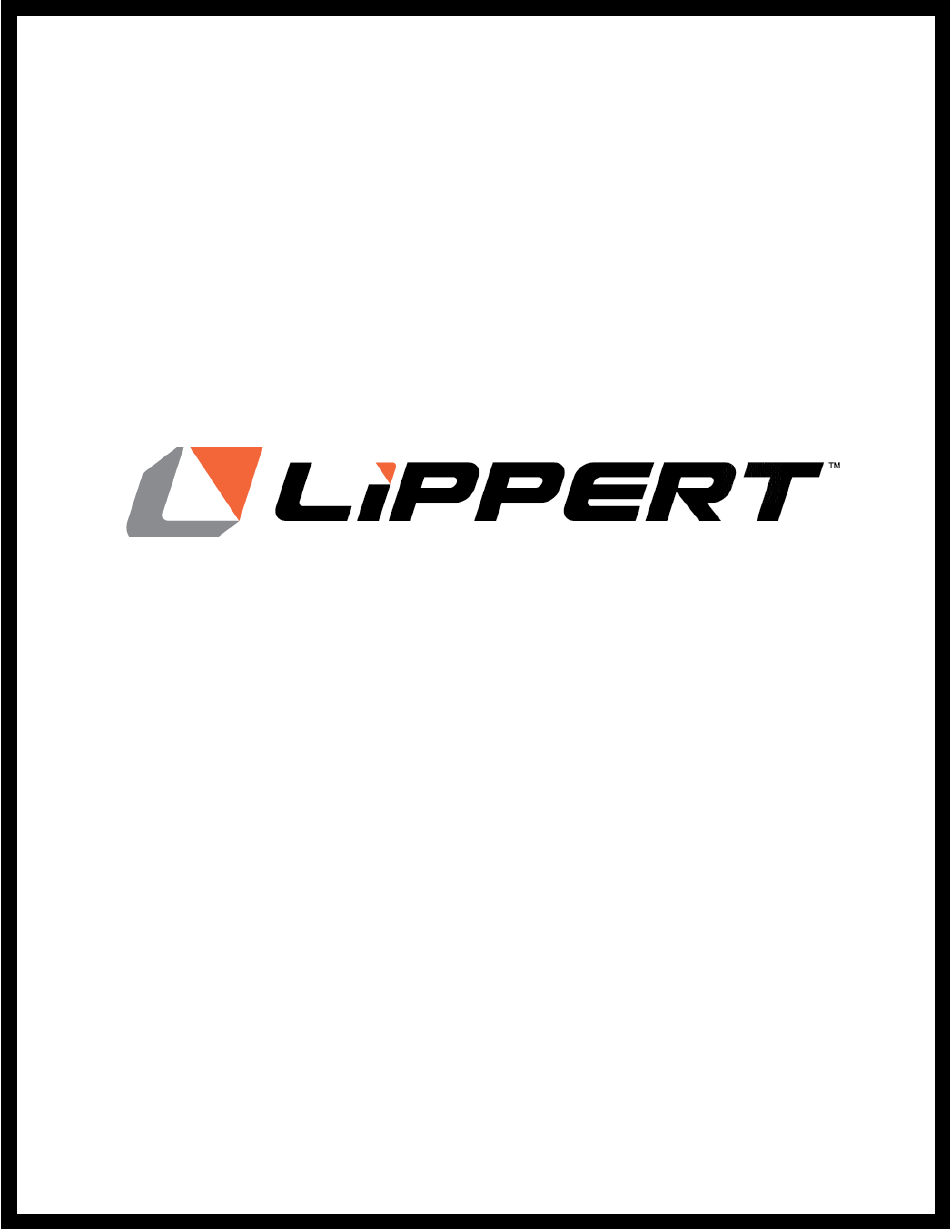

- Page 1 Mosca Murphy Bed OEM INSTALLATION MANUAL...

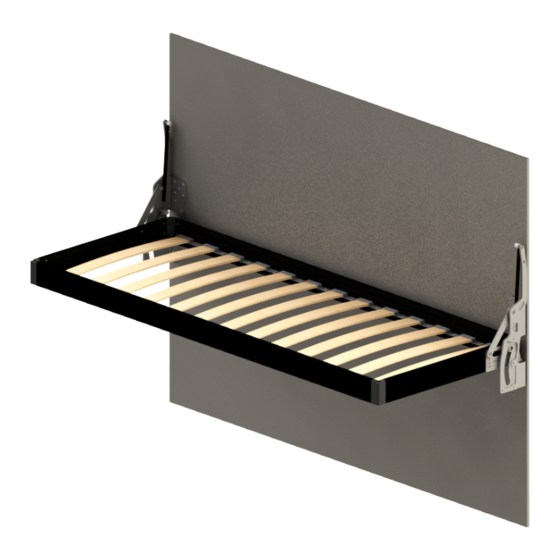

- Page 2 Operation Notes Introduction The Mosca Murphy Bed is a cantilever bed system, with manual movement assisted by gas struts. The bed's load capacity is 220 lbs. For information on the assembly or individual components of this product, please visit: https://support.lci1.com/beds/ NOTE: Images used in this document are for reference only when assembling, installing and/or operating this product.
- Page 3 Resources Required • #10 x 1 1/4" self-tapping screws • OEM best practice for holding bed in position for • Electric or cordless drill or screw gun attachment, such as a jig Prior To Installation Ensure walls where the bed will be mounted have the minimum backer required for installation: 0.90 aluminum stuffed with wood (Fig.
- Page 4 Installation Place the Mosca Murphy Bed in the open position with the attachment brackets against the wall (Fig. 2). NOTE: Use OEM best practice for holding bed in place during attachment, such as a jig. NOTE: Make sure there is adequate backer and space where the bed will be attached.
- Page 5 Optional Installation After securing the bed to the wall, Install two screws into the sides of the brackets on both the top (Fig. 3) and the bottom (Fig. 4). Push up the bed into the closed storage position. Install a final screw on each side of the side brackets — located in the middle of the bracket — by entering through the slats to gain access to the screw hole (Fig.
- Page 6 Operation Pull down on the Mosca Murphy Bed to place it in the open position and ready for use (Figs. 6 and 7). Push the bed up to place it in the storage position (Figs. 8 and 9) and ready for travel.
- Page 7 Notes Page 7 Rev: 02.26.24 CCD-0007189...
- Page 8 Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available for free download from lippert.com.
