Microphone Cable Termination
for Non-Lectrosonics Microphones

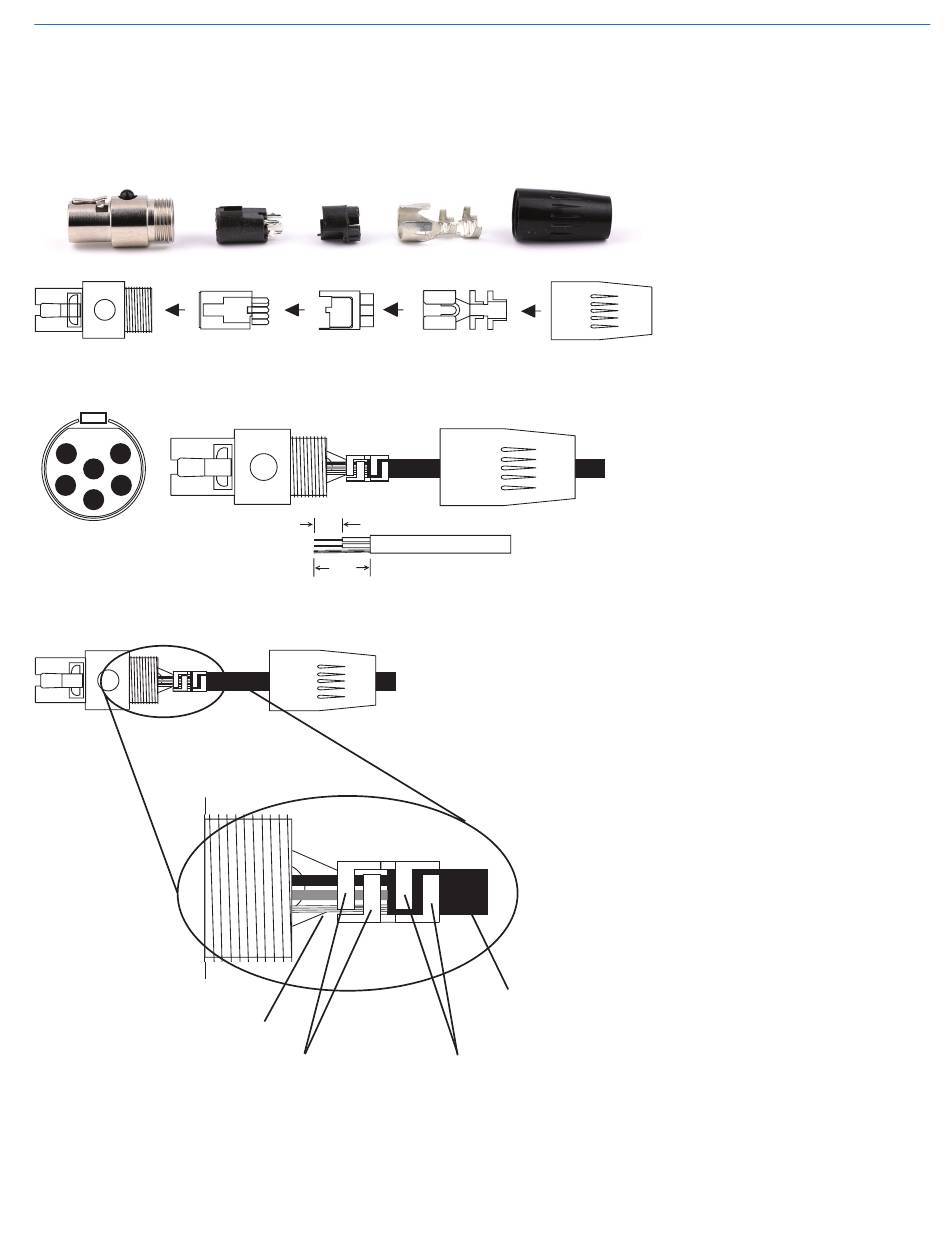

TA6F Connector Assembly
Mic Cable Stripping Instructions
5 1
6
2
4
3
VIEWED FROM
OUTSIDE
Crimping to Shield and Insulation
Shield
Rio Rancho, NM
0.15"
0.3"
Crimp these Crimp these
fingers to fingers to
contact the clamp the
insulation
shield
Strip and position the cable so that the clamp
can be crimped to contact both the mic cable
shield and the insulation. The shield contact
reduces noise with some microphones and the
insulation clamp increases ruggedness.
Insulation
Digital Transmitter
17
