Ametek Echotel 961 Safety Manual

Ultrasonic level switches
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

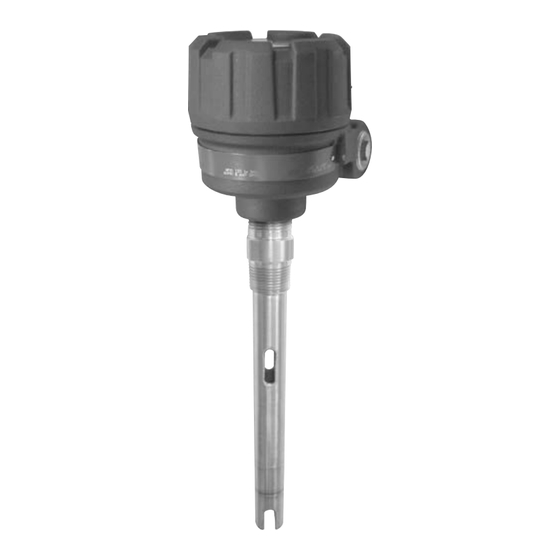

Model 961
This manual complements and is intended to be used
with the Magnetrol Echotel
Single and Dual Point Level Switches Installation and
Operating Manual (Bulletin 51-646).
Application
Echotel
pulsed signal technology to detect high, low, or du-
al-point level in a broad range of liquid media applica-
tions. The advanced self-test technology provides reli-
ability and continuous testing of electronics, transducer,
piezoelectric crystals, and electromagnetic noise.
Benefits
The Echotel Model 961/962 ultrasonic level switches
provide the following benefits:
• Single- or dual-point liquid level measurement
• Adjustable time-delay for turbulent aerated liquids
Model 962
• Reliable liquid level measurement independent of
changes in media density, conductivity, or temperature
• Two-wire mA current shift and relay output options
• Relay output or mA current shift with separate
malfunction indication
• Integral or remote mount electronics
• Pulsed signal technology
• Extensive hazardous location certifications
• Suitable for Safety Integrity Level (SIL) 2 loops
SIL Safety Manual for
Echotel
Model 961/962
®
Ultrasonic Level Switches
®
Model 961/962 ultrasonic level switches utilize
®
Model 961/962 Ultrasonic
