*NO MEMORY

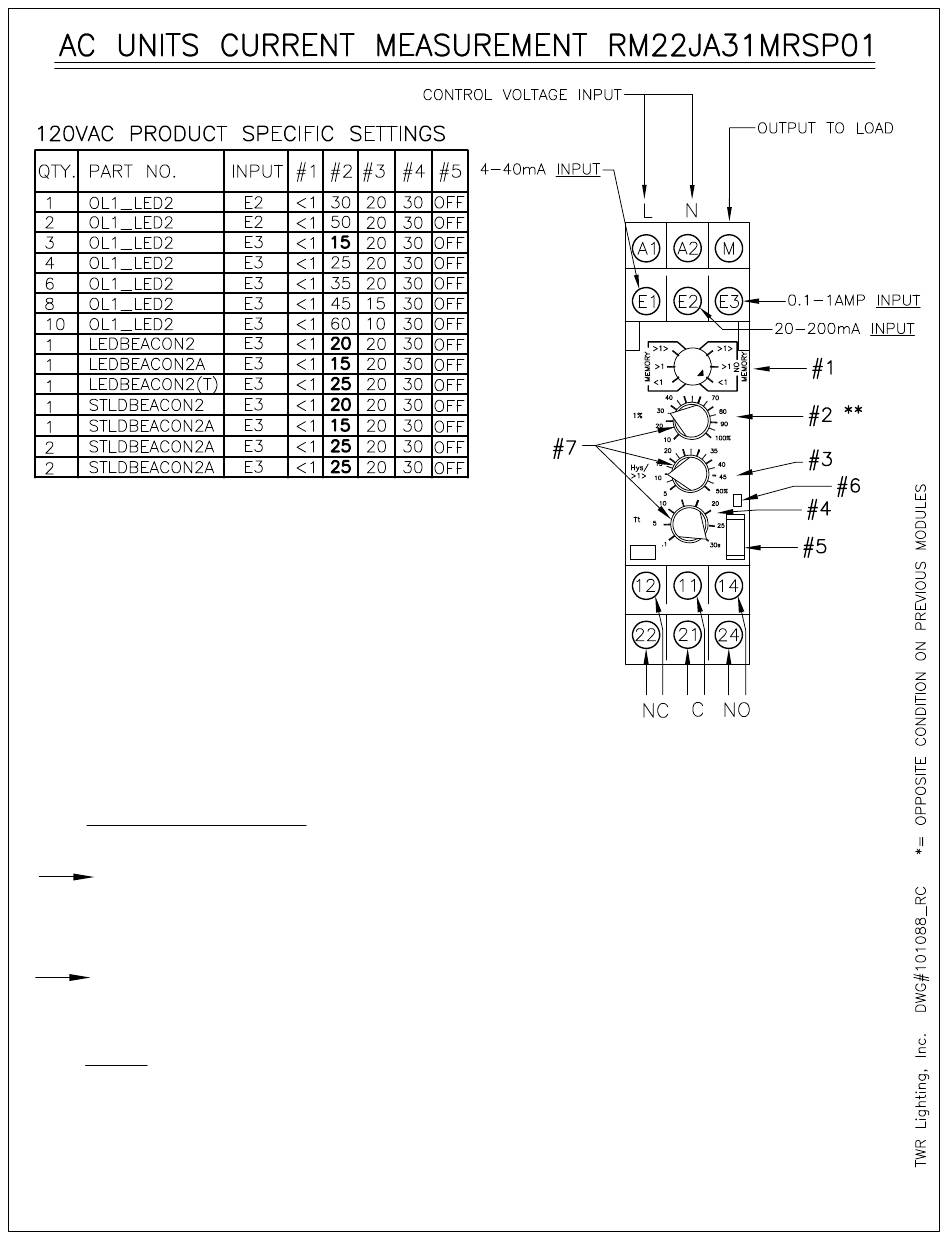

FUNCTIONS
1) Configuration: Selection of operation mode
(<1 / >1 / >1< ) with or without memory.
2) Adjustment of current threshold as % of setting range.
3) Hysteresis adjustment from 5% to 50%.
4) Time Delay adjustment from 0.1 to 30sec.
5) Diagnostic button.
6) Yellow indicator light (See conditions below)
7) Dial Pointer (Green) LED
·
Steady green LED indicates that supply to the RM22 is present
·
Flashing green LED indicates a setting has been changed that
requires a power cycle.
YELLOW LED CONDITIONS
NOTE:
( ) ASTERISK INDICATES LED CONDITIONS OPERATE OPPOSITE FROM RM22JA31MR MODULE
*
Steady Burn Fixtures
·
Yellow light *off : Normal condition (no alarm)
·
Yellow light flashing : Undercurrent condition detected and time delay initiated
·
Yellow light *on : Alarm condition
Flashing Fixtures
·
Yellow light flashing inconsistent : Normal condition (no alarm)
·
Yellow light flashing consistent : Under current condition detected and time delay initiated
NOTE : To help troubleshoot or to set the sense current, turn the time delay to 0
setting should only be done if it is known that all the lights are functioning. For Steady Burn adjust the
current until the yellow LED comes *off, and the relay is not dropping in and out. For Flashing Fixtures
adjust the current setting until the yellow light starts to flash . This is the normal condition setting . Return
the time delay back to 30
·
Yellow light *on : Alarm condition
** Due to current draw tolerances slight adjustments to setting #2 may be needed for proper alarming.
*
*
*
*
*
*
*
*
*
*
*
*
*
*
.
sec
. Adjusting the current
sec
