JUNCTION BOX
6

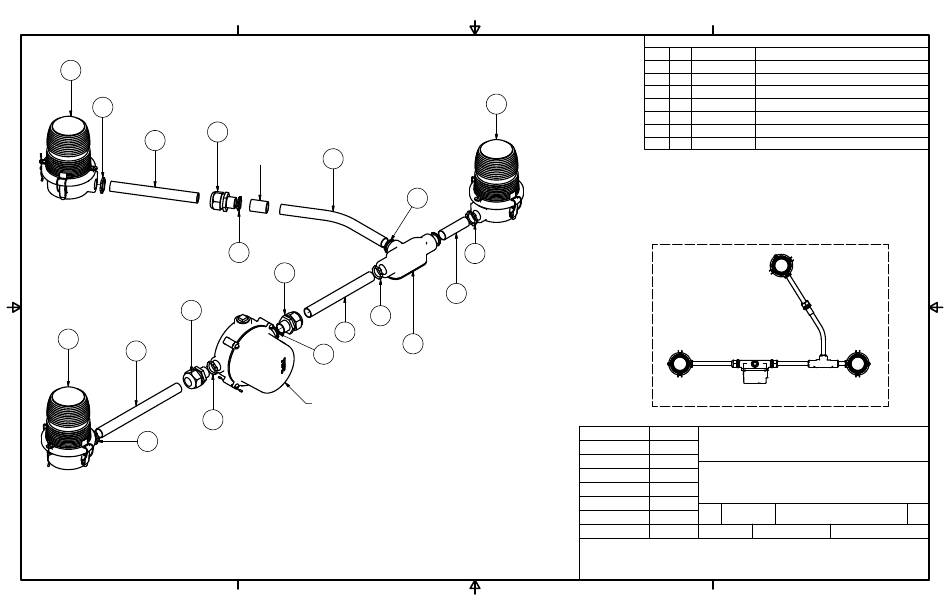

ISOMETRIC VIEW
3
1
NOTES:
1. THIS DRAWING IS A TYPICAL INSTALLATION DETAIL FOR 3 OL-1 PER LEVEL SYSTEM.
2. PART # EL3430 MAY BE OMITTED WHEN ARRANGING FOUR LEG TOWERS.
3. PART # COUNDUIT34 CUT TO LENGTH FOR PROPER EXTENTION OF OL1 FROM
6
STRUCTURE (6"-12"). ATTACH PART # HC402 TO UNTHREADED CONDUIT TO COMPLETE
ASSEMBLY.
4. USE COUPLING THAT IS PROVIDED BY PART # CONDUIT34.
5. GREEN WIRE USED ONLY ON LED SIDELIGHTS
6
4
2
DRAWN
jbustamante
CHECKED
QA
MFG
APPROVED
The use of non-OEM parts or modifications to original equipment design will void the manufacturer warranty and could
The use of non-OEM parts or modifications to original equipment design will void the manufacturer warranty and could
invalidate the assurance of complying with FAA requirements as published in Advisory Circular 150/5345-43.
invalidate the assurance of complying with FAA requirements as published in Advisory Circular 150/5345-43.
NOTICE: The drawings and photographic images contained herein are the sole property of TWR Lighting, Inc. All information contained herein that is not generally
NOTICE: The drawings and photographic images contained herein are the sole property of TWR Lighting, Inc. All information contained herein that is not generally
known shall be considered confidential except to the extent the information has been previously established. The drawings and photographic images contained herein
known shall be considered confidential except to the extent the information has been previously established. The drawings and photographic images contained herein
may not be reproduced, copied or used as the basis for manufacture or sale or promotion or any other purpose without the expressed written permission of TWR
may not be reproduced, copied or used as the basis for manufacture or sale or promotion or any other purpose without the expressed written permission of TWR
Lighting, Inc.
Lighting, Inc.
2
Parts List
ITEM
PART NUMBER
QTY
1
3
OL1/LED
3/4" OBSTRUCTION LIGHT
2
1
T27CG
3/4" CONDULET W/COVER AND GASKET
3
1
EL3430
3/4" 30° ELBOW
4
1
N34T3
3/4" X 3" NIPPLE
5
3
HC402
3/4" NO THREAD CONNECTOR
6
5
A314
3/4" CONDUIT LOCKNUTS
7
1
CONDUIT34
3/4" CONDUIT
TOP VIEW
TWR Lighting, Inc.
1/4/2008
TITLE
SIDELIGHT MOUNT ASSEMBLY
(10' FACE WIDTH MAX)
SIZE
B
SCALE
2
1
DESCRIPTION
B
Enlightened Technology
A
DWG NO
REV
100489
A
1
1
SHEET
OF
