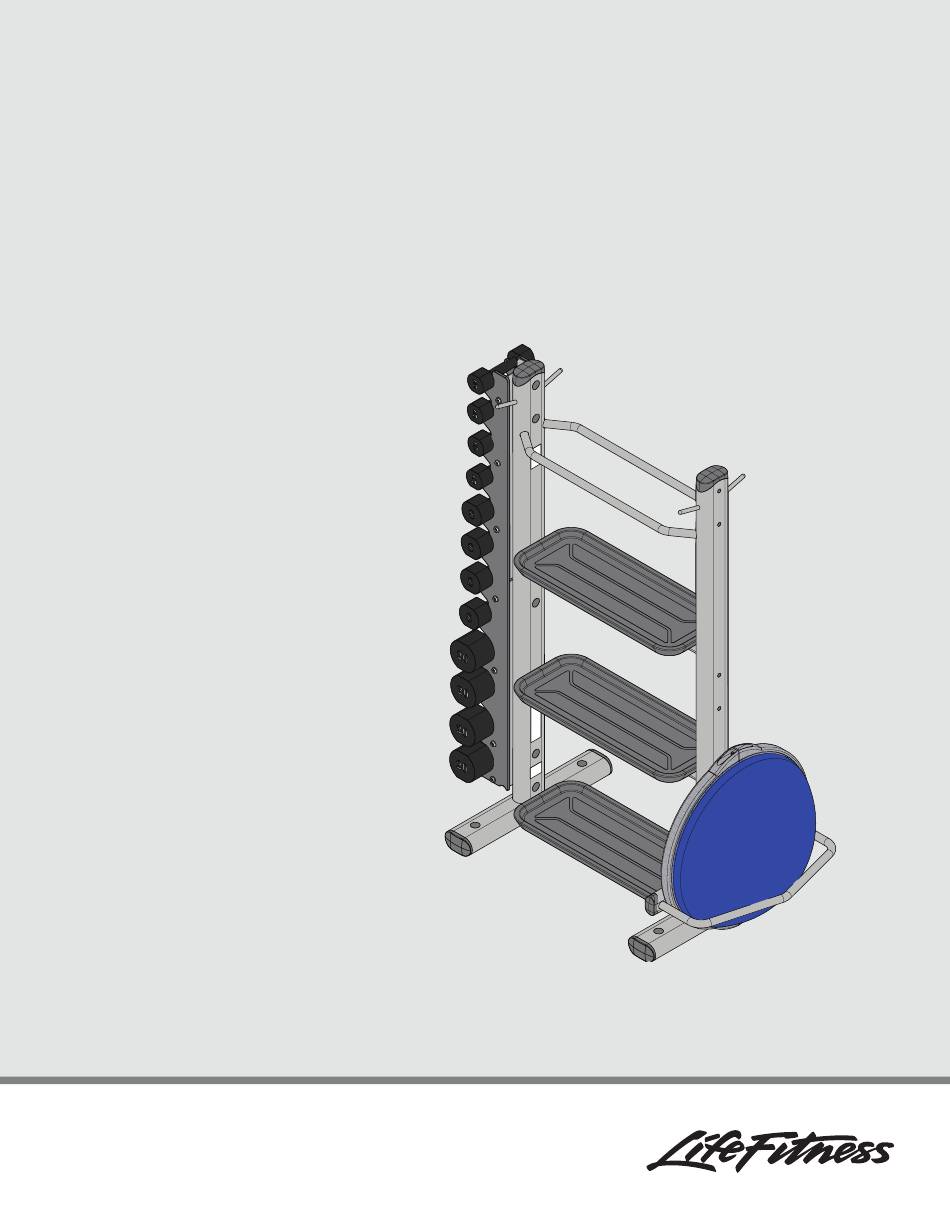

- Page 1 Signature Accessory Storage Rack (SAR) Owner’s Manual 1010219-0001 REV AA...
- Page 3 21 Wong Chuk Hang Road marketing.benelux@lifefitness.com HONG KONG Operating Hours: 9.00h-17.00h (CET) Telephone: (+852) 2575.6262 Fax: (+852) 2575.6894 Service Email: HongKongEnquiry@lifefitness.com Sales/Marketing Email: * Also check www.lifefitness.com for local representation or distributor/dealer Marketing.HK.Asia@lifefitness.com Operating Hours: 9.00h-17.00h Service Operating Hours: 9.00h-18.00h...
-
Page 4: Table Of Contents
Table Of Contents DESCRIPTION PAGE SAFETY INFORMATION ........................CONTACT INFORMATION ........................WARRANTY ............................SPECIFICATIONS ........................... WARNING LABELS ..........................STORAGE TYPES ........................... INSTALLATION INSTRUCTIONS HARDWARE ..........................TOOLS REQUIRED ........................BASE UNIT ..........................MAT ............................. MAT & ROLLERS ........................VERTICAL BOSU ........................2-STABILITY BALLS ........................ -
Page 5: Safety Information
Safety Information It is the sole responsibility of the purchaser of LIFE FITNESS products to read the owner’s manual and warning labels and instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment. UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT. -
Page 6: Contact Information
Contact Information For CUSTOMER Service within the United States and Canada: 1-800-351-3737 or customersupport@lifefitness.com Please call Monday through Friday from 7:00 a.m. to 6:00 p.m. Central Standard Time, and tell them your name, ad- dress, and serial number of your Product. They will tell you how to get a replacement part, or if necessary, arrange for service where your Product is located or advise you on how and where to ship the Product for service. - Page 7 Warranty WHAT IS COVERED This LIFE FITNESS commercial exercise equipment is warranted to be free of all defects in material and workmanship. WHO IS COVERED The original purchaser or any person receiving the product as a gift from the original purchaser. WHO PAYS TRANSPORTATION &...
-
Page 8: Specifications
Specifications Weights and Dimensions WEIGHT DIMENSIONS (L X W X H) STORAGE TYPE Imperial Metric Imperial Metric BASE UNIT 190 lbs 118 kg 25.3” x 36.3” x 67.2” 64.3 cm x 92.3 cm x 170.5 cm ADD STORAGE TYPES, UP TO TWO, TO THE BASE UNIT + 8.3 lbs + 3.7 kg 25.3”... -
Page 9: Warning Labels
Warning Labels Storage Types one per side BASE UNIT VERTICAL BOSU MAT & ROLLERS 2-STABILITY BALLS 3-STABILITY BALLS BEAUTY BELLS BEAUTY BELLS & ROLLERS... -
Page 10: Installation Instructions
Installation Instructions Hardware ITEM DESCRIPTION M10 X 25mm BOLT WASHER LARGE CAP SMALL CAP MAT HANGER PEG MAT HANGER INSERT SMALL END CAP Tools Required RUBBER MALLET 7mm Allen Wrench 1/8”/3mm Allen Wrench 17mm Box End Wrench Base Unit Step Finishing Caps ITEM QTY. -
Page 11: Mat
Installation Instructions Step Mount Mat Hanger ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER 20-25 FT-LBS (27.1 – 33.8Nm) Step Attach Mat Pegs ITEM QTY. DESCRIPTION WASHER MAT HANGER PEG MAT HANGER INSERT... - Page 12 Installation Instructions Step Adjust Pegs ITEM QTY. DESCRIPTION MAT HANGER PEG 8-10 FT-LBS (10.8 – 13.5 Nm) Step Finishing Caps ITEM QTY. DESCRIPTION LARGE CAP SMALL CAP SMALL END CAP...
-
Page 13: Mat & Rollers
Installation Instructions Mat & Rollers Step Mount Base ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER 20-25 FT-LBS (27.1 – 33.8Nm) Mat & Rollers Step Finishing Caps ITEM QTY. DESCRIPTION LARGE CAP SMALL CAP SMALL END CAP... -
Page 14: Vertical Bosu
Installation Instructions Vertical BOSU Step Mount Weldment ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER 20-25 FT-LBS (27.1 – 33.8Nm) Vertical BOSU Step Finishing Caps ITEM QTY. DESCRIPTION LARGE CAP SMALL CAP SMALL END CAP... -
Page 15: 2-Stability Balls
Installation Instructions Stability Balls ORIENTATION Step Mount Rings ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER 20-25 FT-LBS (27.1 – 33.8Nm) Stability Balls Step Finishing Caps ITEM QTY. DESCRIPTION LARGE CAP SMALL CAP... -
Page 16: 3-Stability Balls
Installation Instructions Stability Balls ORIENTATION Step Mount Rings ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER 20-25 FT-LBS (27.1 – 33.8Nm) Stability Balls Step Finishing Caps ITEM QTY. DESCRIPTION LARGE CAP SMALL CAP... -
Page 17: Beauty Bells
Installation Instructions Beauty Bells ORIENTATION Step Mount Braces ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER 20-25 FT-LBS (27.1 – 33.8Nm) Beauty Bells Step Mount Hooks ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER... -
Page 18: Beauty Bells & Rollers
Installation Instructions Beauty Bells Step Finishing Caps ITEM QTY. DESCRIPTION LARGE CAP SMALL CAP Beauty Bells & Rollers ORIENTATION Step Mount Braces ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER... - Page 19 Installation Instructions Beauty Bells & Rollers Step Mount Hooks ITEM QTY. DESCRIPTION M10 X 25mm BOLT WASHER 20-25 FT-LBS (27.1 – 33.8Nm) Beauty Bells & Rollers Step Finishing Caps ITEM QTY. DESCRIPTION LARGE CAP SMALL CAP...
-
Page 20: Bolt To Floor Guidelines
• Signature Accessory Rack (SAR) It is the facility’s responsibility to adhere to local and regional building codes. ALL ANCHORS: •... - Page 21 Competitor Product • The bolt down guidelines and procedures for LIFE FITNESS products were determined by the company’s Engi- neering and Installation Development groups. These guidelines include which anchors to use and positioning of the anchors are required for Life Fitness product. 1.
- Page 22 Pullout Force LIFE FITNESS specifies Hilti™ static and dynamic anchors. According to the anchor manufacturer, the recommended design pullout force (in tension) for the specified anchors, when properly installed in cracked concrete, is provided in the side table. This table should be used for reference only; for additional and up-to-date information on the anchor capabilities or the design pullout force in other substrates, please consult Hilti directly at https://www.us.hilti.com.
- Page 23 Dynamic Anchor Procedure: HSL-3 M 8/40 If it is possible that the length of your bolt will not provide the minimum requirement of 2.5” (63.5mm) of engagement, a longer anchor should be used. 1. Place unit into position to be mounted and cycle unit to set stance.
