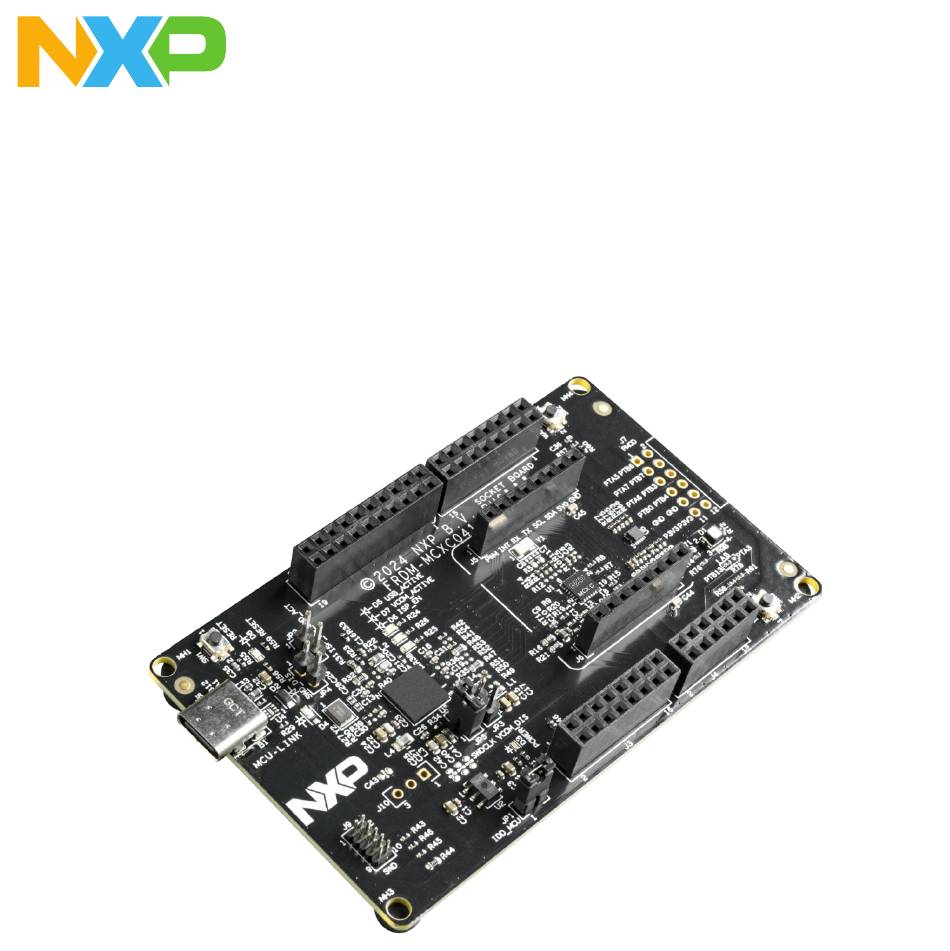

- Page 1 Quick Start Guide MCUXpresso Developer Experience FRDM-MCXC041 Development Board...

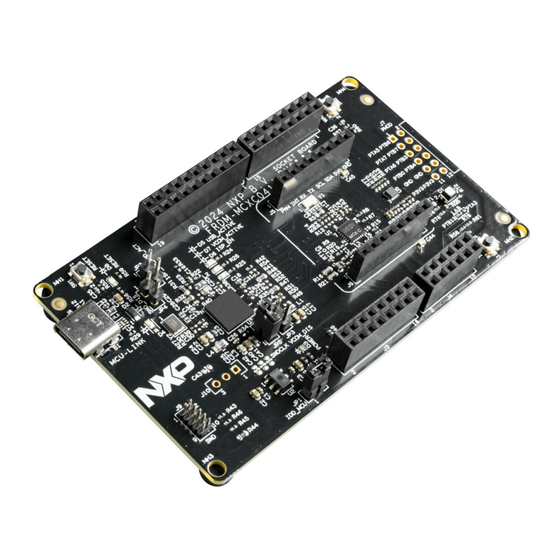

- Page 2 Get to know the FRDM-MCXC041 development board MCU-Link MCU-Link debugger debugger header header NXP’s MCUXpresso Developer Experience provides you with cost-effective MCU SW1 RESET SW1 RESET button button development boards. MCU-Link MCU-Link debugger debugger Easy I/O access supports expansion board use...
- Page 3 Quick Start Guide FRDM-MCXC041 19 20 PTB3 D19/SCL IOREF P3V3 17 18 PTB4 D18/SDA RESET PTA1 15 16 VDDA AREF P3V3 13 14 P5V0 11 12 PTB0 D13/SCK 9 10 PTA6 D12/SDI 14 13 PTA7 D11/PWM/SDO P5-9V_VIN 16 15 PTA5...
- Page 4 How to get started Setup 1. Connect the FRDM-MCXC041 board to a PC using the USB Type-C® cable 2. The board comes preprogrammed with a blinky LED demo 3. Get started at nxp.com/FRDM-MCXC041/start Software and expansion boards 4. Use different headers to connect sensors, Arduino shields and more 5.
