- Page 1 Quick Start Guide MCUXpresso Developer Experience FRDM-MCXN236 DEVELOPMENT BOARD In partnership with:...

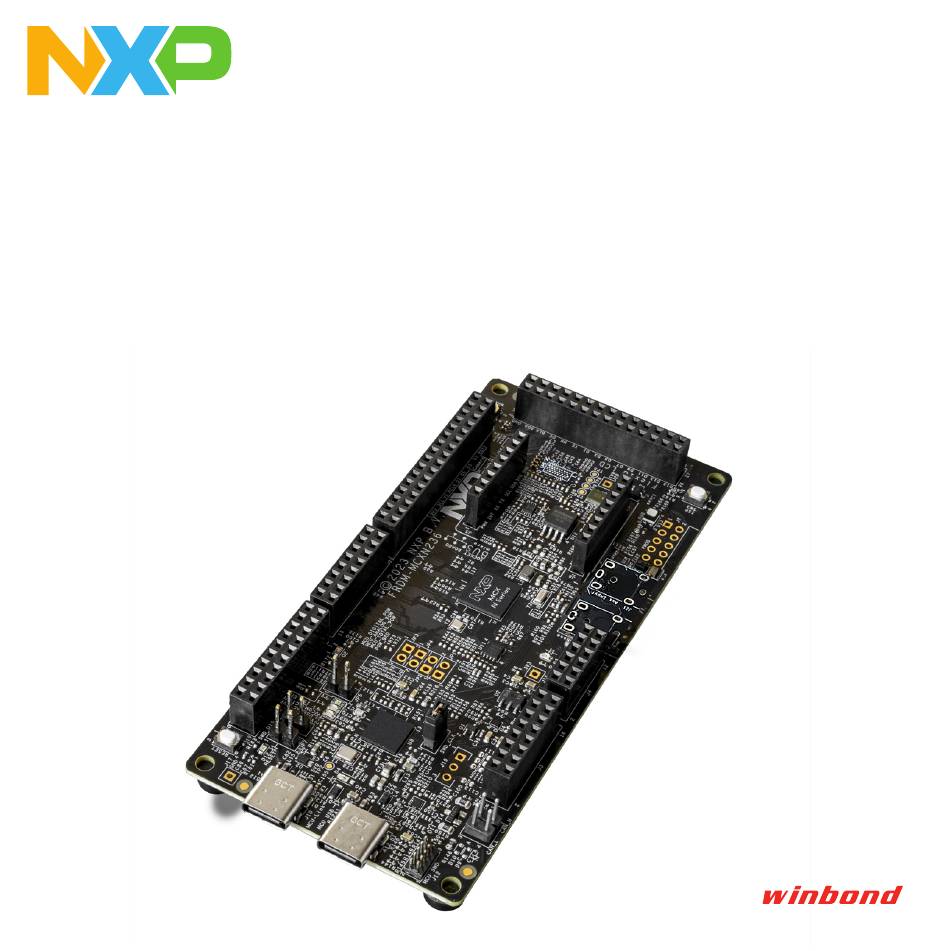

- Page 2 Get to know the FRDM-MCXN236 development board MCU-Link USB MCU USB SW1 Reset NXP’s MCUXpresso MCU SWD Developer Experience MCU-Link Debugger provides you with CAN Header cost-effective MCU development boards. J2 Header J3 Header Easy I/O access supports expansion board use for fast prototyping and rapid evaluation.
- Page 3 Quick Start Guide FRDM-MCXN236 GPIO ANA_7 19 20 P1_17 ARD_D19 P4_13 MC GPIO P0_24 17 18 P1_16 ARD_D18 ARD P3V3 P4_21 MC 15 16 VDDA ARD RESET 6 P3_17 MC 13 14 ARD P3V3 P3_16 MC GPIO P0_25 11 12...
- Page 4 How to get started SETUP 1. Connect the FRDM-MCXN236 board to a PC using the USB Type-C cable ® 2. The board comes preprogrammed with a blinky LED demo 3. Get started at nxp.com/FRDM-MCXN236/start SOFTWARE AND EXPANSION BOARDS 4. Use different headers to connect sensors, Arduino shields and more 5.
