- Page 1 OWNER’S MANUAL BatteryCharge15 TEAMBMPRO.COM...
-
Page 2: Safety Precautions
REV 5.0 DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from the improper or unsafe use of its products. Warranty is only valid if the unit has not been modified... - Page 3 Clean the housing of this product lightly with a dry or moist cotton cloth. Do not use alcohol, thinners, benzene or any other chemical cleaner. The BatteryCharge15 is a high precision electronic product. It contains no user-serviceable parts inside. Do not try to dismantle, modify or repair it yourself. Disassembly, service or repair by an unauthorised person will void the warranty.
-
Page 4: Table Of Contents
SAFETY PRECAUTIONS ..... . 2 ABOUT THE BATTERYCHARGE15 ....5 ADDITIONAL FEATURES . -

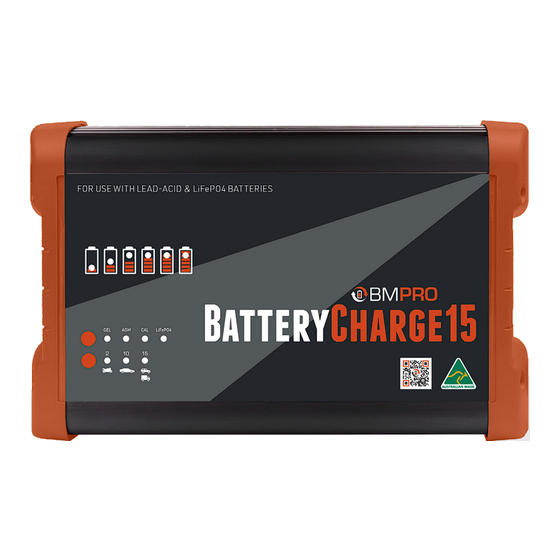

Page 5: About The Batterycharge15
BatteryCharge15 enhances your battery’s lifespan and performance while preventing overcharging. The BatteryCharge15 is user-friendly, with easy configuration at the push of a button, and versatile, capable of charging various battery chemistries and sizes, meaning you’re always prepared for the next big adventure! -
Page 6: Description Of Parts
DESCRIPTION OF PARTS 1. Mounting Points Used to mount the BatteryCharge15 on a wall or work bench. 2. Battery Charge State Graph Monitor the progression of battery charging. The current charging stage is shown with a flashing LED. Completed charging stages are shown with a solid LED. - Page 7 7. Anderson Plug 8. Positive Terminal Clamp Connector 9. Negative Terminal Clamp Connector 10. Positive Terminal Ring Connector 11. Negative Terminal Ring Connector 12. In-line 20A Fuse...
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS The BatteryCharge15 can be installed on a wall or workbench using its pre- drilled mounting points. MOUNTING HOLES MOUNTING HOLES To avoid overheating, ensure the BatteryCharge15 is installed in a well- ventilated area with at least 100mm of free space around all vented sides for air circulation. -
Page 9: Using Your Batterycharge15
To prevent the BatteryCharge15 from overheating, charge your battery in a well- ventilated area that allows for continuous air-flow around the unit. Overheating of the BatteryCharge15 will inhibit the optimal operation of the unit and may cause the BatteryCharge15 to shut down. -
Page 10: Disconnecting The Batterycharge
90AH will likely require several charging cycles to achieve full charge. If at the end of float mode, the BatteryCharge15 determines that the battery is not fully charged, it will automatically recommence the charging cycle. -
Page 11: Charging A Battery In A Parked Vehicle
CHARGING A BATTERY IN A PARKED VEHICLE The BatteryCharge15 is not intended to charge a vehicle’s battery while the vehicle is running. However, you may charge the battery while the vehicle is parked, and the ignition is off. To charge a battery in a parked vehicle: Attach the BatteryCharge15’s positive (+) red attachment lead to the... -
Page 12: Using The Batterycharge15 As A Power Supply
Do not operate beyond the specified current limit while in Power Supply Mode or the voltage may become unstable. The BatteryCharge15 can be used as a power supply. Up to 10A of current can be provided, with an output voltage of 13.6V. -
Page 13: Cleaning
Disconnect the BatteryCharge15 from both the mains power supply and any connected battery or appliance before you begin to clean the BatteryCharge15. To clean the housing of the BatteryCharge15, use a dry or moist cotton cloth to gently wipe off any dust or dirt. -
Page 14: Faqs And Troubleshooting
If the BatteryCharge15 setup encounters a problem that prevents battery charging, the first LED on the Battery Charging Graph will flash a red error code. If it’s safe, fix the issue and then press any button on the BatteryCharge15 to resume charging. -
Page 15: Charging Process
Analysis (5th Battery Charge State LED Flashes) The BatteryCharge15 will test the battery to determine if it is fully charged. If the battery is not fully charged, the BatteryCharge15 will proceed to recondition the... -
Page 16: Lithium Charging
The final stage of charging. Float mode will keep the battery at optimum charge without overcharging or damaging the battery. This means there is no need to disconnect the battery from the BatteryCharge15 if it is not convenient to do so. LITHIUM CHARGING If the BatteryCharge15 is to be used to charge LiFePO4 batteries, it must be put into LiFePO4 mode. -
Page 17: Specifications
SPECIFICATIONS BATTERYCHARGE25 Input Voltage 240V, 50Hz Input Power 270W Nominal Output Voltage (Power Supply Mode) 13.6V Output Current (Power Supply Mode) Minimum Start Voltage Charging Current 2/10/15A Back Drain <4mA... -
Page 18: Warranty Terms And Conditions
The warranty period of the product is two years. If, before the warranty period has ended, a fault occurs with the product and BMPRO finds the product is defective in materials or workmanship, BMPRO at its discretion will subject to further rights accorded by the Australian Consumer Law to either: • ... - Page 19 (k) the fault is a result of common wear & tear. LIMITATIONS No express warranties or representations are made by BMPRO other than what is set out in this warranty. The absolute limit of BMPRO’s liability under this express warranty is the repair or replacement of the product or part of the product.
- Page 20 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
