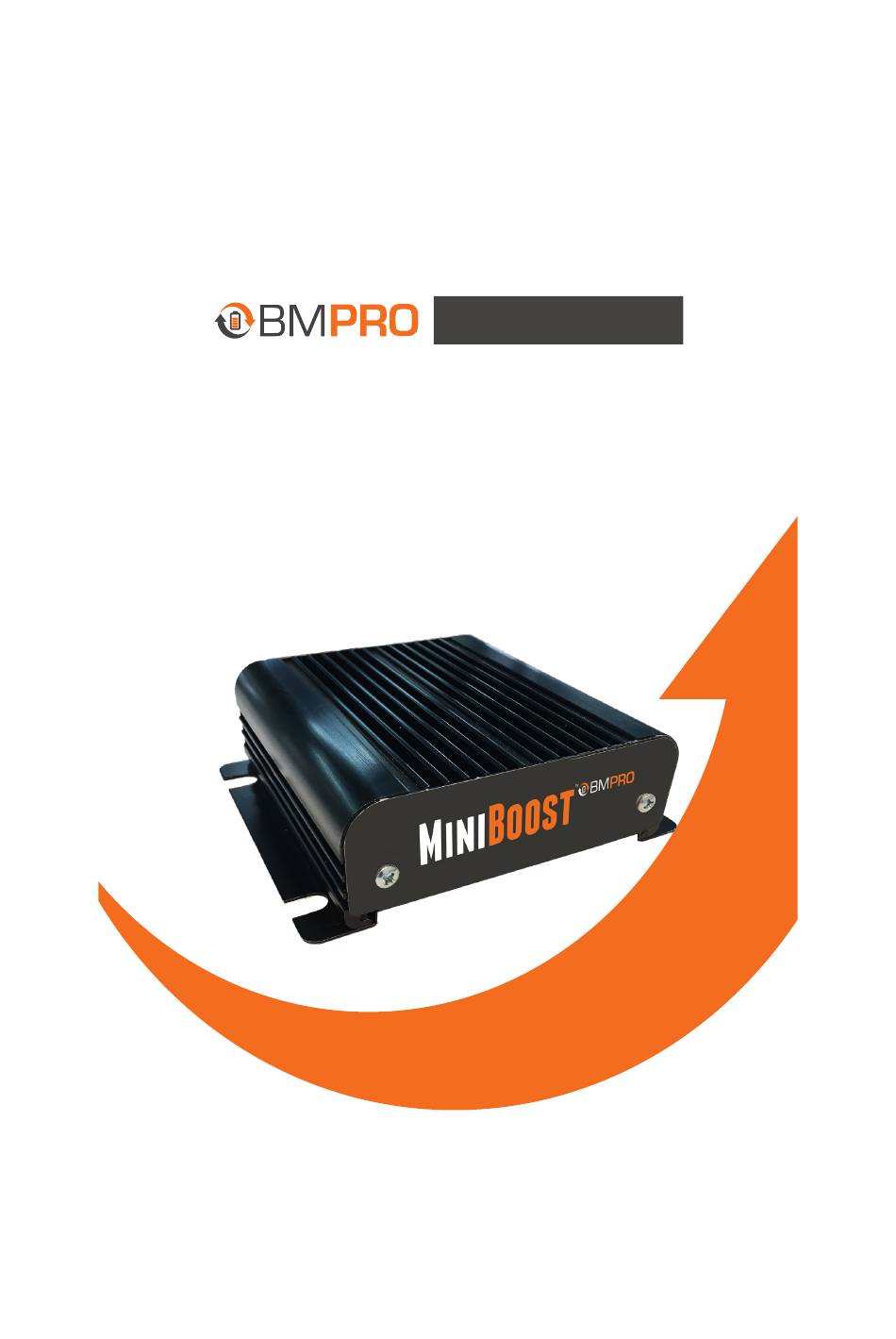

- Page 1 OWNER’S MANUAL MiniBoost TEAMBMPRO.COM...
- Page 2 To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO .COM...
-
Page 3: Safety Precautions
Correct installation is the most critical factor in ensuring the safe use of the MiniBoost If every consideration of these instructions has been satisfied, the MiniBoost will be safe to operate. -
Page 4: Table Of Contents
REV 4.0 DISCLAIMER BMPRO accepts no liability for any loss or damage which may occur from the improper or unsafe use of its products. Warranty is only valid if the unit has not been modified or misused by the customer. -

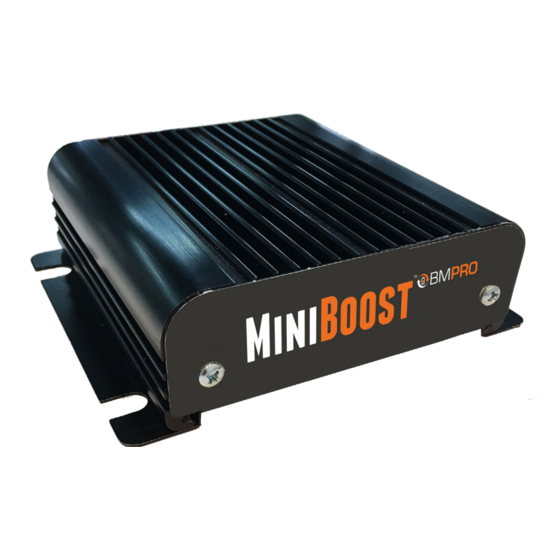

Page 5: About The Miniboost
The input fuse is illuminated from behind with a green light when the input voltage is sufficient for the unit to operate. The MiniBoost is not a power supply and must be connected to a battery. If the battery voltage is too low the MiniBoost will not connect. -
Page 6: Installation Instructions
Installation is to be carried out only by suitably qualified personnel VENTILATION, ORIENTATION AND THERMAL CONSIDERATIONS The MiniBoost may be installed in any orientation, but located such that there is free air movement around the product. This allows for the lowest operating temperature of the internal electronics and highest reliability of the product. -
Page 7: Wiring
WIRING It is recommended that the MiniBoost connect to the vehicle through a 30A (minimum) Isolating Relay and 30A (minimum) fuse. The relay function is to prevent the vehicle battery from discharging when the vehicle is not in use. WIRE SIZE Cables should be sized to carry 30A. -
Page 8: Wiring The Miniboost To The Batteryplus35
WIRING THE MINIBOOST TO THE BATTERYPLUS35 In Caravan Tow Vehicle 30Amp Relay Fuse Ignition House Battery Figure 2: Wired to BatteryPlus35... -
Page 9: Wiring The Miniboost To The J35
WIRING THE MINIBOOST TO THE J35 In Caravan Tow Vehicle 30Amp Relay Fuse Ignition House Battery Figure 3: Wired to J35... -
Page 10: Servicing
SERVICING Do not attempt to service the MiniBoost, OR dismantle, modify or repair the MiniBoost yourself; this will void your warranty. If your MiniBoost requires servicing, please consult your BMPRO dealer or visit teambmpro.com for assistance. FAQS AND TROUBLESHOOTING Need help troubleshooting your MiniBoost? Contact our customer service team online at teambmpro.com/technical-support/... -
Page 11: Warranty Terms And Conditions
5. BMPRO may seek reimbursement of any costs incurred by BMPRO when a product is found to be in proper working order or damaged as a result of any of the warranty exclusions mentioned in point 4 of this statement. - Page 12 TEAM BMPRO +61 3 9763 0962 sales@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
