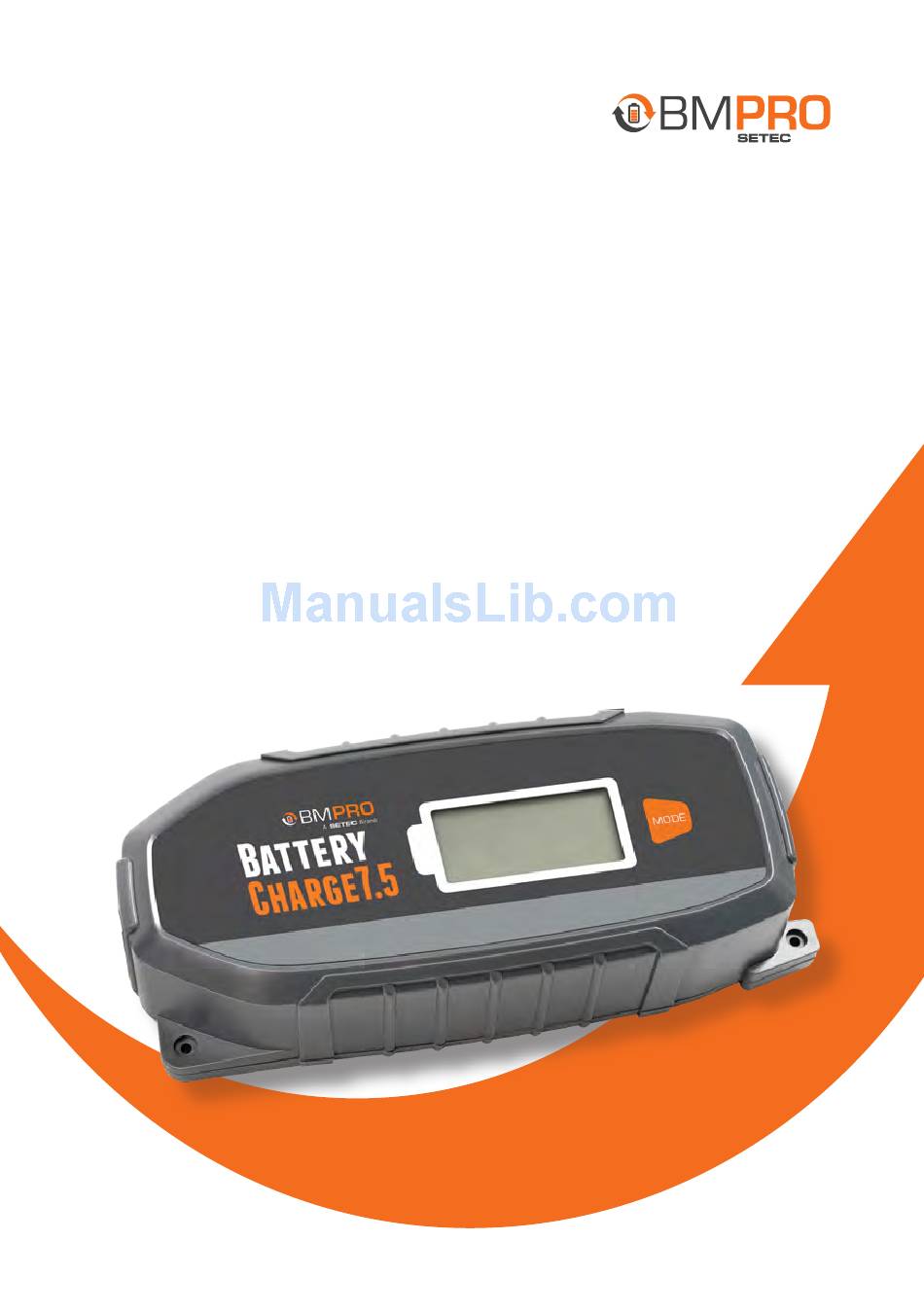

- Page 1 Brand OWNER’S MANUAL BatteryCharge7.5 www.teambmpro.com...
- Page 2 Manual Part #030529 The BMPRO BatteryCharge7.5 (BC7.5) is designed by Setec, one of Australia’s leading power solutions experts. The BatteryCharge7.5 represents a high quality product that will provide years of service. Copyright © Setec 2017 Disclaimer SETEC accepts no liability for any loss or damage, which may occur as a result of improper or unsafe use of its products.
-
Page 3: Table Of Contents
CONTENTS What’s Included Features Cleaning and Maintenance Safety Precautions LCD Display Specifications Operation Connection Disconnection Memory Function Reset Select Charging Mode Special Features Overheating Protection Trickle Charging Product Features Warranty Terms and Conditions... -
Page 4: What's Included
The BatteryCharge7.5 increases your battery’s life and gives high-performance, intelligent charging. Equipped with short-circuit and overload protection the BatteryCharge7.5 also has a large LCD display panel to let you know the charging progress of your battery. The BatteryCharge7.5 may also be used to regenerate completely discharged batteries. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Please read the Safety Precautions carefully before using this battery charger. Be sure to observe all the safety precautions. Failure to follow these instructions properly may result in WARNING personal injury or loss of life. Ensure that there is good ventilation in the battery area. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use... -
Page 6: Lcd Display
LCD DISPLAY LITHIUM RECOVER SMPS 13.6V 12.8V ADVANCED AGM 12V LITHIUM RECOVER SMPS 13.6V 12.8V ADVANCED AGM 12V “MODE” Selection button MODE This mode is for charging small 24V Lead-acid batteries This mode is for charging 12V Lead-acid batteries Cold mode. For use when the battery temperature is below 5C. ADVANCED This mode is for charging 12V AGM batteries AGM 12V... -
Page 7: Specifications
SPECIFICATIONS Input voltage 220 - 240 V ~ 50 Hz 1.3A Power consumption 120 W Reverse current* < 10 mA (no AC input) Nominal output voltage 12 V DC / 24 V DC / 12.8V DC/ 13.6V DC Nominal output current 7.5 A / 3.75 A / 5.0A / 5.0 A 14.5V / 14.7V for 12V battery, 29 V / 29.4V for 24V battery, 14.5V for Lithium (12.8V... -
Page 8: Operation
Attach the (+) quick-release clamp (red) to the (+) terminal of the battery. Attach the (–) quick-release clamp (black) to the (–) terminal of the battery. Connect the mains lead of the BatteryCharge7.5 to an electrical power outlet socket. Disconnection Disconnect the BatteryCharge7.5 from the mains power... -
Page 9: Special Features
LCD display the output is 13.6V DC 5.0A. SPECIAL FEATURES Overheating protection If the BatteryCharge7.5 becomes overheated during charging, the power output is automatically reduced. This protects against damaging both your battery and the charger. Trickle charging Once the battery has been fully charged, the BatteryCharge7.5 automatically... -
Page 10: Product Features
PRODUCT FEATURES This appliance has been designed for charging a variety sealed lead acid batteries, as mainly used in cars, motorbikes and other vehicles. They may be of types e.g. WET (with liquid electrolyte), GEL (with mit gel-type electrolyte) or AGM (absorbed glass mat) batteries. -
Page 11: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Registering your BMPRO by Setec product is an important step to ensure that you receive all of the benefits you are entitled to. Please visit www.teambmpro.com to complete the online registration form for your new product today. - Page 12 BMPRO A Setec Brand +61 3 9763 0962 sales@teambmpro.com 19 Henderson Rd, Knoxfield VIC 3180 Australia www.teambmpro.com...
