Summary of Contents for BMPRO BatteryCharge7.5

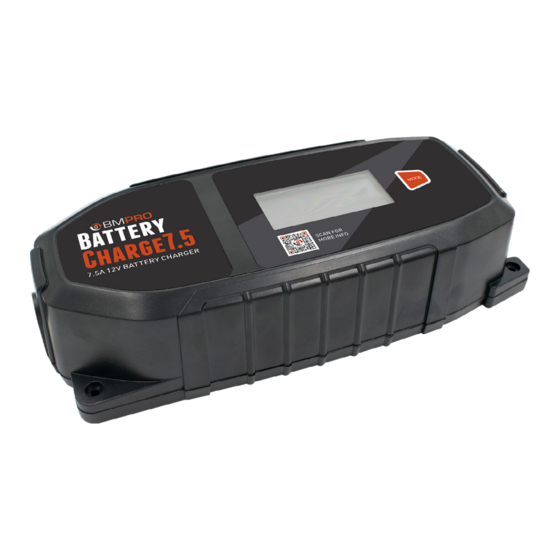

- Page 1 OWNER’S MANUAL BatteryCharge7.5 TEAMBMPRO.COM...
-
Page 2: Safety Precautions
REV 2.0 DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from the improper or unsafe use of its products. Warranty is only valid if the unit has not been modified... -
Page 4: Table Of Contents
SAFETY PRECAUTIONS ..... . 2 ABOUT THE BATTERYCHARGE7.5 ....5 ADDITIONAL FEATURES . -
Page 5: About The Batterycharge7.5
BatteryCharge7.5 from damage caused by overheating. 9 Reverse polarity, short-circuit and overload protection when charging. You can safely leave your battery connected to the BatteryCharge7.5 knowing that your battery won’t spark or overheat. 9 Power supply mode. ... -
Page 6: Description Of Parts
DESCRIPTION OF PARTS LITHIUM RECOVER SMPS 13.6V 12.8V ADVANCED AGM 12V 1. Mounting Points Used to mount the BatteryCharge7.5. 2. Mode Selection Button Used to change the BatteryCharge7.5’s operating mode. - Page 7 3. Current/Voltage Value The value of the current or voltage of the connected battery. 4. 13.6V 5A Power Supply Indicator Displays when the BatteryCharge7.5 is being used as a 13.6V 5A power supply 5. 24V Battery Mode 6. Lithium Battery Mode For use only with 12.8V 3.0A 4-cell LiFePO4 lithium batteries.
- Page 8 12. Voltage of Connected Battery 13. Current of Connected Battery 14. Battery Not Connected Indicator Flashes when the BatteryCharge7.5 does not detect a connected battery. 15. Faulty Battery Indicator Displays when the BatteryCharge7.5 detects a faulty battery. 16. Incorrect Polarity Indicator...
-
Page 9: Using Your Batterycharge7.5
USING YOUR BATTERYCHARGE7.5 WARNING Do not use the BatteryCharge7.5 to charge a battery while the battery is in use and drawing current. In these situations, the BatteryCharge7.5 is not guaranteed to charge the battery completely, or keep the battery in a charged state. -
Page 10: Selecting Charge Modes
To switch between the Basic and Advanced Charging Mode Menu, press the MODE button for three seconds. The battery indicator on the BatteryCharge7.5 will flash while the battery is charging and stop flashing when the battery reaches full charge. Cold mode charging should be used when you are charging the battery in weather conditions below 5°C. -
Page 11: Disconnecting The Batterycharge7.5
The BatteryCharge7.5 will remember the previously used Main Charging Mode that the device was set to. If you use the BatteryCharge7.5 to charge the one (or similar types of) lead-acid battery, simply connect the BatteryCharge7.5 to your battery and mains power supply. -
Page 12: Cleaning
CLEANING To clean the housing of the BatteryCharge7.5, use a dry or moist cotton cloth to lightly remove any dust or dirt. Do not use alcohol, thinners, benzene or any other chemical cleaner as these products may degrade the housing surface. -
Page 13: Battery Charging Process
Monitors the battery voltage and if required, applies enough charging current to maintain the lead-acid battery at full charge without overcharging the battery. If trickle current is not enough to maintain full charge, the BatteryCharge7.5 will enter maintenance. Step 10: Maintenance Ramps up the charging current to maintain full battery charge or restarts the battery charging cycle if the BatteryCharge7.5 detects a significant drop in... -
Page 14: Lithium Charging
Voltage Volts Step Current Amps LITHIUM CHARGING The BatteryCharge7.5 applies a check-bulk-absorption charging process to charge lithium batteries. -
Page 15: Specifications
SPECIFICATIONS BATTERYCHARGE7.5 Input Voltage Range 220-240V ~50Hz 1.3A Power Consumption 120W Reverse Current* <10mA (no AC input) Nominal Output Voltage 12VDC / 24VDC / 12.8VDC/ 13.6VDC Nominal Output Current 7.5A / 3.75A / 5.0A / 5.0A 12V battery: 14.5V / 14.7V 24V battery: 29V / 29.4V... -
Page 16: Warranty Terms And Conditions
The warranty period of the product is two years. If, before the warranty period has ended, a fault occurs with the product and BMPRO finds the product is defective in materials or workmanship, BMPRO at its discretion will subject to further rights accorded by the Australian Consumer Law to either: • ... - Page 17 (k) the fault is a result of common wear & tear. Limitations No express warranties or representations are made by BMPRO other than what is set out in this warranty. The absolute limit of BMPRO’s liability under this express warranty is the repair or replacement of the product or part of the product.
- Page 20 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
