Summary of Contents for BMPRO MiniBoost

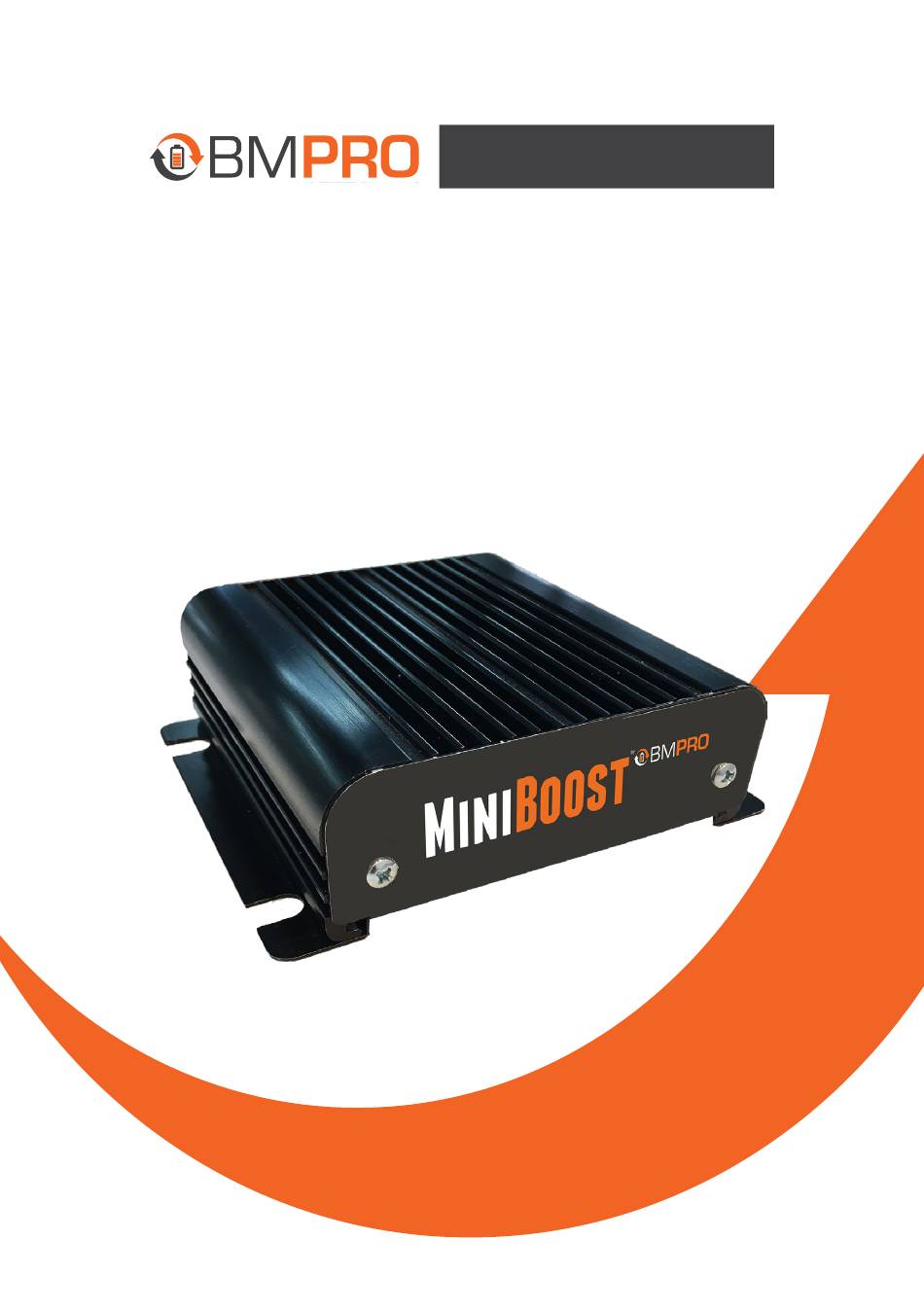

- Page 1 OWNER’S MANUAL MiniBoost TEAMBMPRO.COM...
- Page 3 To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO...
-
Page 4: Safety Precautions
WARNING Correct installation is the most critical factor in ensuring the safe use of the MiniBoost. If every consideration of these instructions has been satisfied, the MiniBoost will be safe to operate. -
Page 6: Table Of Contents
SAFETY PRECAUTIONS ..... . 4 ABOUT THE MINIBOOST ..... . 8 INSTALLING THE MINIBOOST . -
Page 8: About The Miniboost
When the MiniBoost is receiving sufficient input voltage, the input fuse is illuminated with a green LED light. The MiniBoost is not a power supply and must be connected to a battery. If the battery voltage is too low the MiniBoost will not connect. -
Page 9: Installing The Miniboost
INSTALLING THE MINIBOOST Installation of the MiniBoost should only be carried out by suitably qualified personnel. The following items are required for the installation: 9 30A relay 9 Wire connector 9 In-line 3A fuse 9 Trailer connector ... -
Page 10: Wiring The Miniboost
WIRING THE MINIBOOST It is recommended that the MiniBoost connect to the vehicle through a minimum 30A isolating relay and a minimum 30A fuse. Connecting through a relay prevents the vehicle battery from discharging when the vehicle is not in use. -
Page 11: Wiring The Miniboost To The Batteryplus35
WIRING THE MINIBOOST TO THE BATTERYPLUS35... -
Page 12: Wiring The Miniboost To The J35
WIRING THE MINIBOOST TO THE J35... -
Page 13: Servicing
SERVICING Do not attempt to service the MiniBoost, OR dismantle, modify or repair the MiniBoost yourself; this will void your warranty. If your MiniBoost requires servicing, please consult your BMPRO dealer or visit teambmpro.com for assistance. -
Page 14: Faqs And Troubleshooting
Contact our customer service team online at teambmpro.com/technical- support Can I use the MiniBoost if I don’t have a BMPRO power management system? The MiniBoost can work on the auxiliary input of other power management systems, or it can be directly connected to a battery. -
Page 15: Specifications
SPECIFICATIONS MiniBoost Input Voltage Range 10V to 15V Boost Mode: 20A Output Current Bypass Mode: 30A Boost Mode: 14.4V Output Voltage Bypass Mode: <1V less than input voltage Output Ripple Voltage <150mV Boost Mode: 21A (electronic) Output Current Protection Bypass Mode: 31A (fuse) Start Voltage 12.2V to 12.9V... -
Page 16: Warranty Terms And Conditions
The warranty period of the product is two years. If, before the warranty period has ended, a fault occurs with the product and BMPRO finds the product is defective in materials or workmanship, BMPRO at its discretion will subject to further rights accorded by the Australian Consumer Law to either: • ... - Page 17 (k) the fault is a result of common wear & tear. LIMITATIONS No express warranties or representations are made by BMPRO other than what is set out in this warranty. The absolute limit of BMPRO’s liability under this express warranty is the repair or replacement of the product or part of the product.
-
Page 18: Limited Warranty Terms And Conditions (Usa)
LIMITED WARRANTY TERMS AND CONDITIONS (USA) Registering your BMPRO product is an important step to ensure that you receive all the benefits you are entitled to. Please visit teambmpro.com to complete the online registration form for your new product today. -
Page 19: Compliance
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, • Consult the dealer or an experienced radio/TV technician for help. Warning: Any changes or modifications not expressly approved by BMPRO could void the user’s authority to operate this equipment. - Page 20 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia Unit 1, 821 E Windsor Ave, Elkhart IN 46514 USA .COM teambmpro.com...
