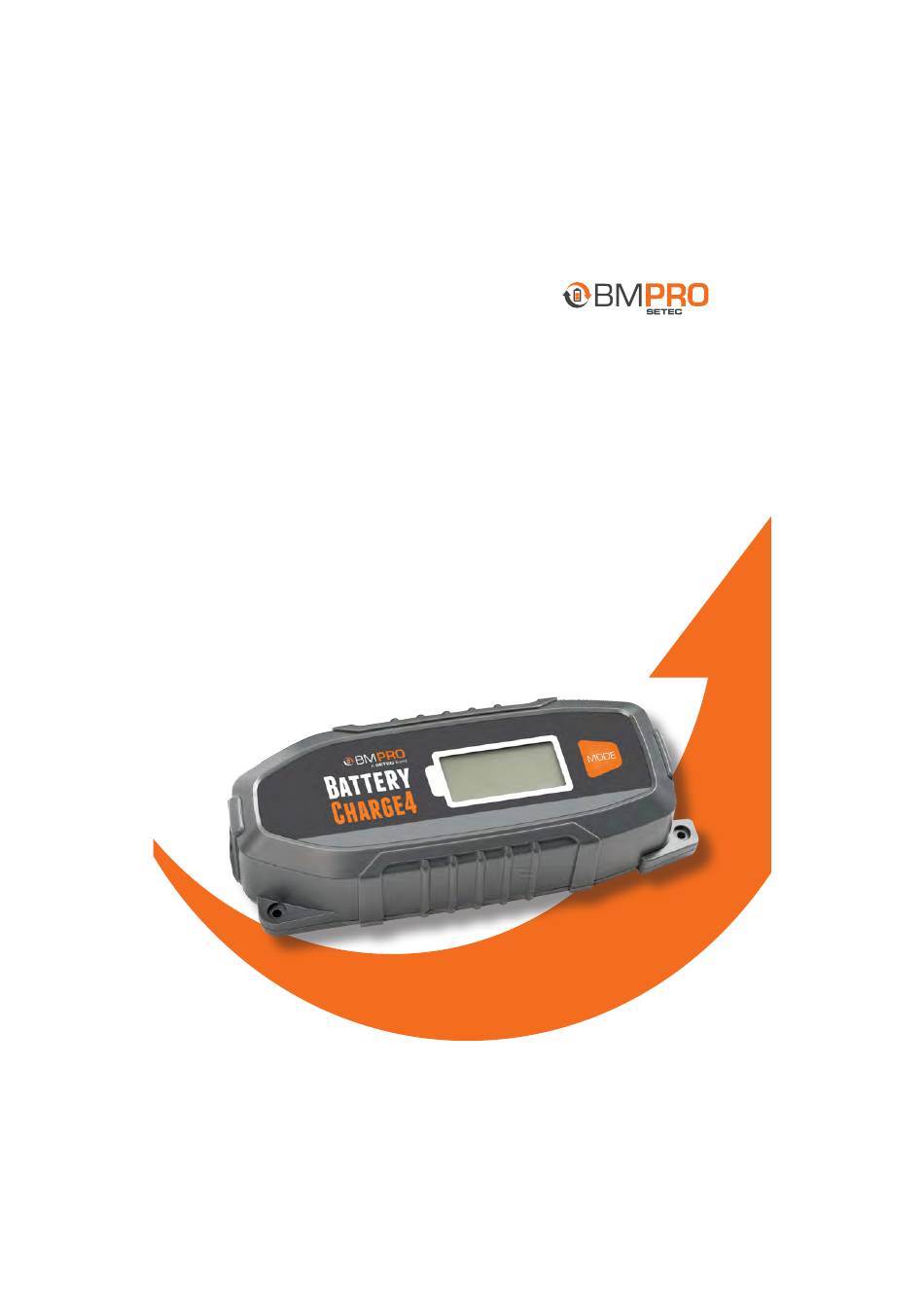

- Page 1 Brand OWNER’S MANUAL BatteryCharge4 www.teambmpro.com “More information https://www.caravansplus.com.au"...
- Page 2 Manual Part #030527 The BMPRO BatteryCharge4 (BC4) is designed by Setec, one of Australia’s leading power solutions experts. The BatteryCharge4 represents a high quality product that will provide years of service. Copyright © Setec 2017 Disclaimer SETEC accepts no liability for any loss or damage, which may occur as a result of improper or unsafe use of its products.
-
Page 3: Table Of Contents
CONTENTS What’s Included Features Cleaning and Maintenance Safety Precautions LCD Display Specifications Operation Connection Disconnection Memory Function Reset Select Charging Mode Special Features Overheating Protection Trickle Charging Charging Warranty Terms and Conditions “More information https://www.caravansplus.com.au"... -
Page 4: What's Included

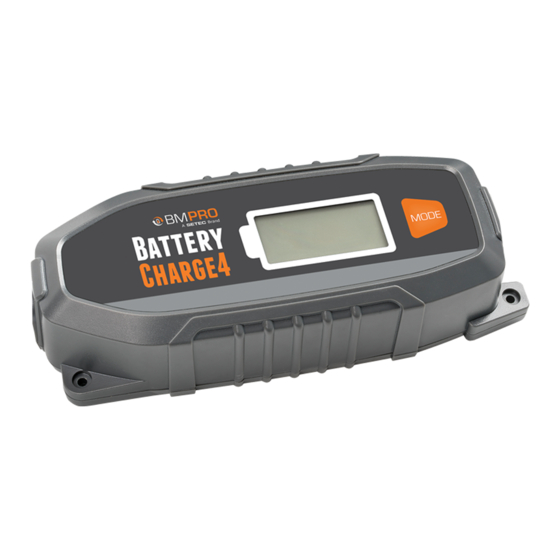

The BatteryCharge4 increases your battery’s life and gives high-performance, intelligent charging. Equipped with short-circuit and overload protection the BatteryCharge4 also has a large LCD display panel to let you know the charging progress of your battery. The BatteryCharge4 may also be used to regenerate completely discharged batteries. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Please read the Safety Precautions carefully before using this battery charger. Be sure to observe all the safety precautions. Failure to follow these instructions properly may result in WARNING personal injury or loss of life. Ensure that there is good ventilation in the battery area. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use... -
Page 6: Lcd Display
LCD DISPLAY LITHIUM RECOVER 12V 12.8V LITHIUM RECOVER 12V 12.8V “MODE” Selection button MODE This mode is recommended for smaller 12V batteries up to 20Ah capacity. This mode is recommended for larger 12V batteries For 6V batteries only Cold mode. For use when the battery temperature is below 5C. (12.8V 3.0A) For use ONLY with 4-cell LiFePO4 Lithium batteries LITHIUM 12.8V... -
Page 7: Specifications
SPECIFICATIONS Input voltage 220 - 240 V ~ 50 Hz 0.6A Power consumption 65 W Reverse current* < 10 mA (no AC input) Nominal output voltage 6 V DC / 12 V DC / 12.8V DC Nominal output current 0.9 A / 4.0 A / 3.0A 7.3 V / 7.4V for 6V battery, 14.5 V / 14.7V for Charging voltage 12V battery, 14.5V for Lithium (12.8V 4-cells... -
Page 8: Operation
Attach the (+) quick-release clamp (red) to the (+) terminal of the battery. Attach the (–) quick-release clamp (black) to the (–) terminal of the battery. Connect the mains lead of the BatteryCharge4 to an electrical power outlet socket. Disconnection Disconnect the BatteryCharge4 from the mains power Detach the (–) quick-release clamp (black) from the (–) terminal of the battery. -
Page 9: Special Features
SPECIAL FEATURES Overheating protection If the BatteryCharge4 becomes overheated during charging, the power output is automatically reduced. This protects against damaging both your battery and the charger. Trickle charging Once the battery has been fully charged, the BatteryCharge4 automatically changes to trickle charging. -
Page 10: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Registering your BMPRO by Setec product is an important step to ensure that you receive all of the benefits you are entitled to. Please visit www.teambmpro.com to complete the online registration form for your new product today. - Page 11 “More information https://www.caravansplus.com.au"...
- Page 12 BMPRO A Setec Brand +61 3 9763 0962 sales@teambmpro.com 19 Henderson Rd, Knoxfield VIC 3180 Australia www.teambmpro.com “More information https://www.caravansplus.com.au"...
