Summary of Contents for BMPRO BATTERYCHARGE4

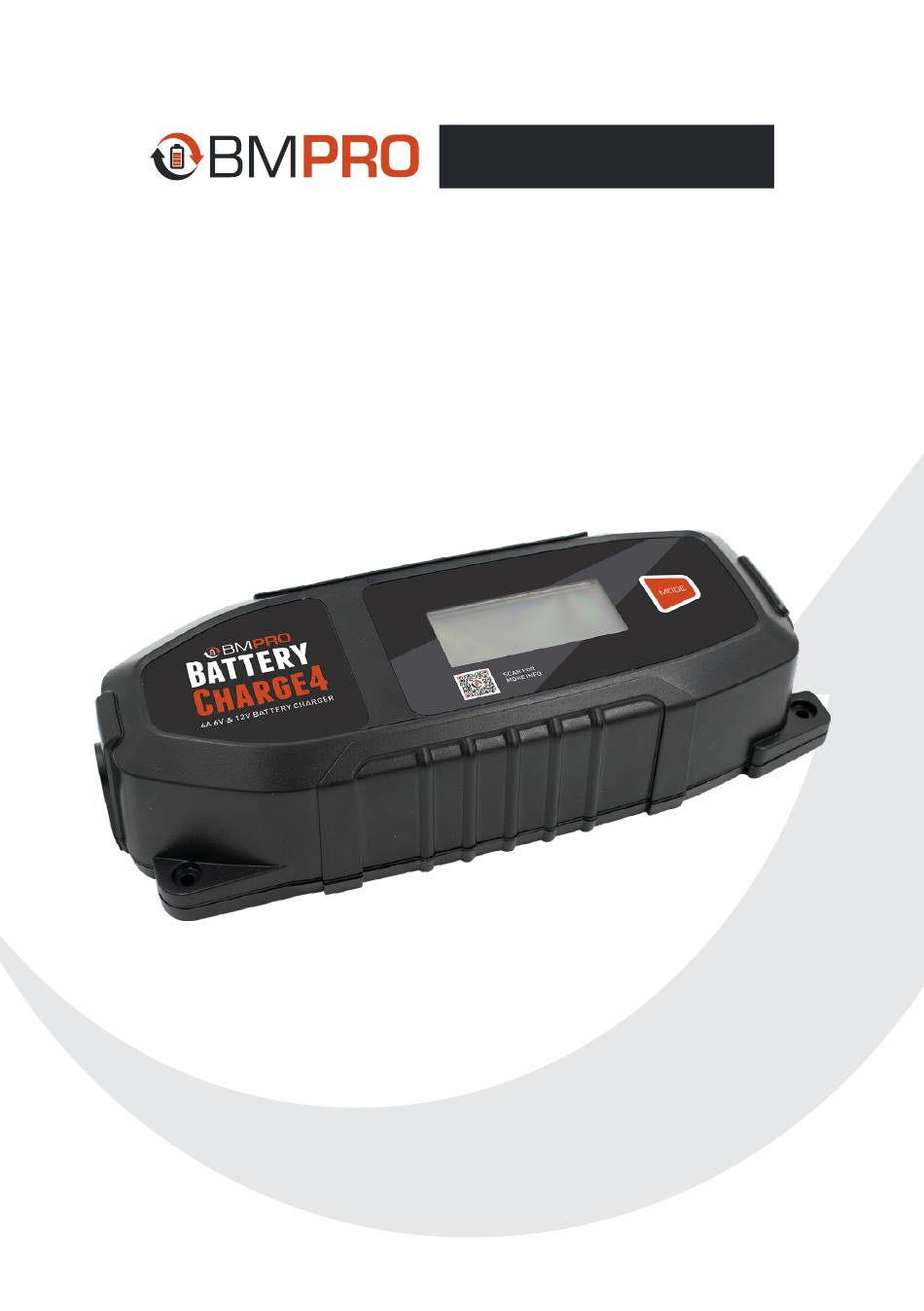

- Page 1 OWNER’S MANUAL BatteryCharge4 TEAMBMPRO.COM...
-
Page 2: Safety Precautions
REV 2.0 DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from the improper or unsafe use of its products. Warranty is only valid if the unit has not been modified... -
Page 4: Table Of Contents
SAFETY PRECAUTIONS ..... . 2 ABOUT THE BATTERYCHARGE4 ....5 ADDITIONAL FEATURES . -
Page 5: About The Batterycharge4
The BatteryCharge4 increases your battery’s life and gives high-performance, intelligent charging. Equipped with short-circuit and overload protection, the BatteryCharge4 also has a large LCD display panel to let you know the charging progress of your battery. The BatteryCharge4 may also be used to regenerate completely discharged batteries. -
Page 6: Description Of Parts
LITHIUM RECOVER 12V 12.8V 1. Mounting Points Used to mount the BatteryCharge4. 2. Mode Selection Button Used to change the BatteryCharge4’s operating mode. LITHIUM RECOVER 12V 12.8V 13 12 11 3. Current/Voltage Value The value of the current or voltage of the connected battery. - Page 7 11. Voltage of Connected Battery 12. Current of Connected Battery 13. Battery Not Connected Indicator Flashes when the BatteryCharge4 does not detect a connected battery. 14. Faulty Battery Indicator Displays when the BatteryCharge4 detects a faulty battery. 15. Incorrect Polarity Indicator...
-
Page 8: Using Your Batterycharge4
Attach the (+) quick-release clamp (red) to the (+) terminal of the battery. Attach the (–) quick-release clamp (black) to the (–) terminal of the battery. Connect the mains lead of the BatteryCharge4 to an electrical power outlet socket. DISCONNECTION Disconnect the BatteryCharge4 from the mains power. -
Page 9: Select Charging Mode
Disconnect the BatteryCharge4 from the mains power supply before you begin to clean as there is danger of electrocution. To clean the housing of the BatteryCharge4, use a soft, dry lint-free cloth to gently wipe off any dust or dirt. -
Page 10: Battery Charging Process
Slowly reduces charging current while charging the battery up to 100% capacity. Steps 7-8: Maintenance Ramps up the charging current to maintain full battery charge or restarts the battery charging cycle if the BatteryCharge4 detects a significant drop in battery voltage. Voltage... -
Page 11: Specifications
SPECIFICATIONS BATTERYCHARGE4 Input Voltage Range 220-240V ~ 50Hz 0.6A Power Consumption Reverse Current* <10mA (no AC input) Nominal Output Voltage 6VDC / 12VDC / 12.8VDC Nominal Output Current 0.9A / 4.0A / 3.0A 6V battery: 7.3V / 7.4V 12V battery: 14.5V / 14.7V Charging Voltage 12.8V LiFePO4 lithium battery: 14.5V... -
Page 12: Warranty Terms And Conditions
The warranty period of the product is two years. If, before the warranty period has ended, a fault occurs with the product and BMPRO finds the product is defective in materials or workmanship, BMPRO at its discretion will subject to further rights accorded by the Australian Consumer Law to either: • ... - Page 13 (k) the fault is a result of common wear & tear. LIMITATIONS No express warranties or representations are made by BMPRO other than what is set out in this warranty. The absolute limit of BMPRO’s liability under this express warranty is the repair or replacement of the product or part of the product.
- Page 16 BMPRO TEAM customerservice@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
