Summary of Contents for Chauvin Arnoux AEMC INSTRUMENTS MR415

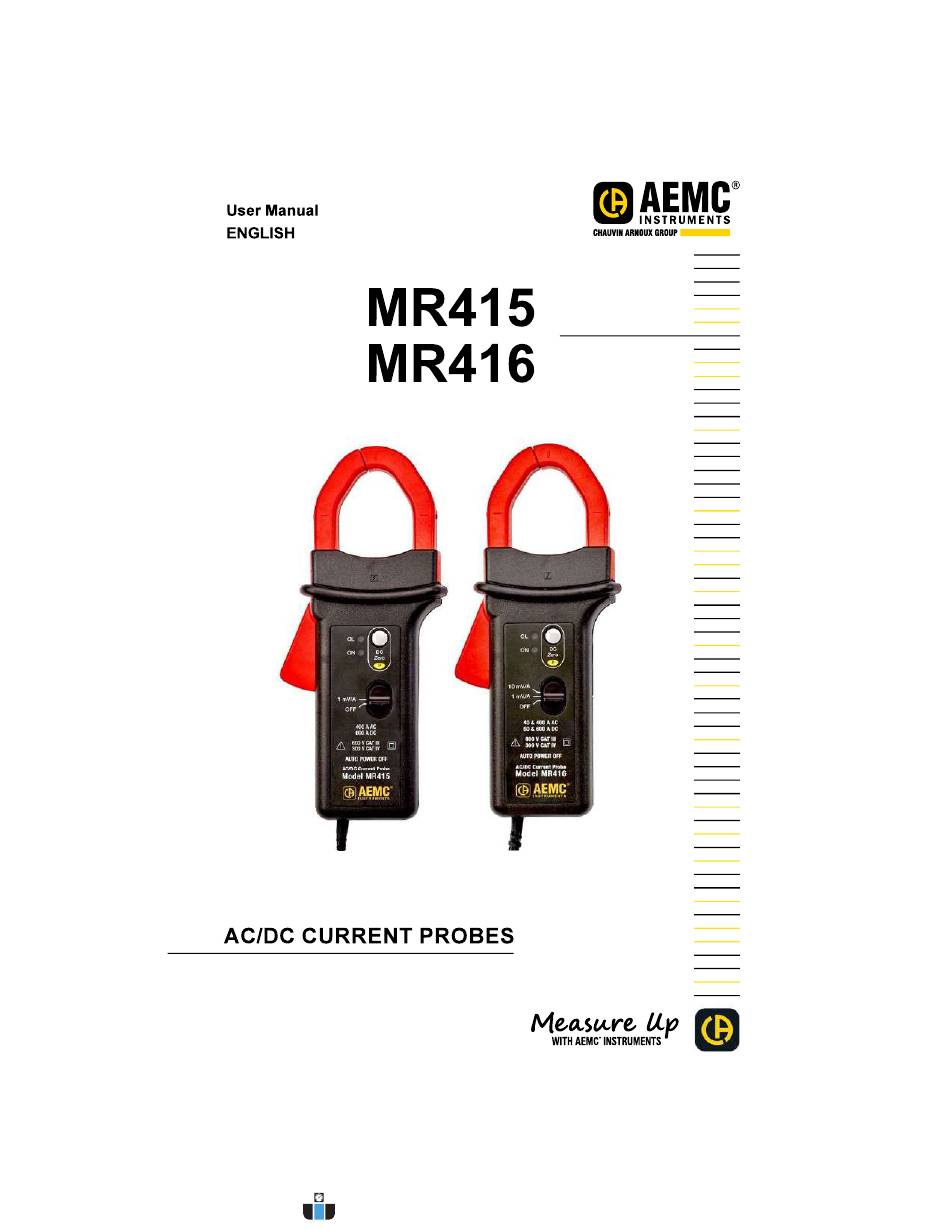

- Page 1 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 2 Copyright © Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux ®...
- Page 3 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ................6 1.1 PRECAUTIONS FOR USE ............7 1.2 RECEIVING YOUR SHIPMENT..........8 1.3 ORDERING INFORMATION ............. 8 1.3.1 Replacement Parts/Accessories......... 8 2. PRODUCT FEATURES..............9 2.1 DESCRIPTION ................9 2.2 INTERFACE................10 3. OPERATION ..................11 3.1 BATTERY INSTALLATION ............ - Page 5 5. MAINTENANCE................24 5.1 CLEANING................24 5.2 BATTERY REPLACEMENT............. 24 5.3 REPAIR AND CALIBRATION ..........25 5.4 TECHNICAL AND SALES ASSISTANCE ....... 25 5.5 LIMITED WARRANTY.............. 26 5.5.1 Warranty Repairs.............. 26 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 6: Introduction
1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 7: Precautions For Use
1.1 PRECAUTIONS FOR USE These instructions are intended to ensure the safety of users and proper operation of the instrument. This instrument is compliant with the IEC 61010- 2-032 or BS EN 61010-2-032 safety standards for voltages of 300 V in measurement category IV or 600 V in category III. -
Page 8: Receiving Your Shipment
1.2 RECEIVING YOUR SHIPMENT Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equipment distributor at once with a detailed description of any damage. Save the damaged packing container to substantiate your claim. -
Page 9: Product Features

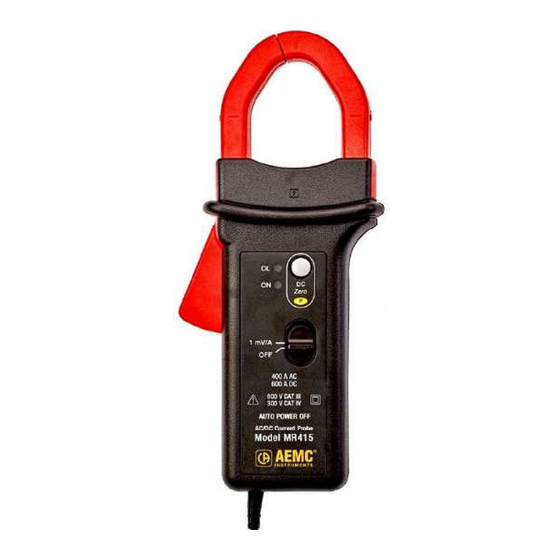

2. PRODUCT FEATURES 2.1 DESCRIPTION The Models MR415 and MR416 are clamp-on current probes that measure DC currents up to 600 A, AC currents up to 400 A (600 A ), and combined AC+DC currents without opening the circuit. They indicate the shape and amplitude of the current measured in the form of a voltage. -
Page 10: Interface
2.2 INTERFACE Figure 1 (MR416 shown) Item Fixed jaw (does not move when the trigger is pressed) Banana plugs (4 mm) DC Zero button OL (overload) and ON indicators. ON is green when Auto Standby is enabled, and it is yellow when disabled. P (Permanent mode) indicator. -
Page 11: Operation
1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 12: Turning On The Instrument
1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 13: Measurements
1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 14: Specifications
4. SPECIFICATIONS 4.1 REFERENCE CONDITIONS Temperature 73 ± 8°F (23 ± 5°C) Relative humidity 20 to 75%RH Position of the conductor Centered on the marks of the jaws Measurement frequency DC to 65 Hz sine wave Zero <40 V/m Zero Input impedance ±(a% R + b) 4.2 ELECTRICAL SPECIFICATIONS... - Page 15 Error (%) Current (A) Error (%) 1000 Current (A) Current Probes MR415 & MR416 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 16 Phase shift (°) Current (A) Bandwidth -3 dB: DC to 30 kHz Frequency Insertion impedance Error (%) Frequency (Hz) Current Probes MR415 & MR416 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 17: Electrical Specifications, 10 Mv/A Sensitivity
r curve at 60 A Phase shift (°) 0° -10° -20° -30° -40° -50° -60° 1000 10000 100000 Frequency (Hz) 0.5 to 30 30 to 40 40 to 60 Intrinsic uncertainty 1 to 20 20 to 40 Phase shift Current Probes MR415 & MR416 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 18 Error (%) Current (A) Error (%) Current (A) Current Probes MR415 & MR416 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 19 Phase shift (°) Current (A) Bandwidth -3 dB: DC to 30 kHz Frequency Insertion impedance curve at 30 A Error (%) Frequency (Hz) Current Probes MR415 & MR416 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 20: Operating Limits
t 30 A Phase shift (°) 0° -10° -20° -30° -40° -50° -60° 1000 10000 100000 Frequency (Hz) 4.3 OPERATING LIMITS In DC: 3000 A permanent In AC: 1000 A permanent up to 1 kHz from 1 kHz, IMAX = 1000/f (kHz) Current (A) 1000 Frequency... -
Page 21: Variations In The Range Of Use
4.4 VARIATIONS IN THE RANGE OF USE Drift of the zero ±55.56 mA/°F 14 to 131°F (±100 mA/°C) Temperature (-10 to +55°C) Drift of the gain Relative humidity 10 to 85%RH 0.5% from 10 to 400 Hz Frequency from 400 Hz to 7 kHz 3.5% from 7 to 30 kHz see curves... -
Page 22: Environmental Conditions
4.6 ENVIRONMENTAL CONDITIONS The instrument must be used in the following environmental conditions. °C 1 = Range of reference 2 = Operating range 3 = Storage range Indoor use Degree of pollution: 2 Altitude: <6500 ft (2000 m) Current Probes MR415 & MR416 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 23: Housing Protection
1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 24: Maintenance
5. MAINTENANCE NOTE: Except for the battery, the instrument contains no parts that can be replaced by personnel who have not been specially trained and accredited. Any unauthorized repair or replacement of a part by an “equivalent” may gravely impair safety. 5.1 CLEANING Disconnect anything connected to the clamp. -
Page 25: Repair And Calibration
5.3 REPAIR AND CALIBRATION that it be submitted to our factory Service Center at one-year intervals for recalibration, or as required by other standards or internal procedures. You must contact our Service Center for a Customer Service Authorization number (CSA#). This will ensure that when your instrument arrives, it will be tracked and processed promptly. -
Page 26: Limited Warranty
5.5 LIMITED WARRANTY The instrument is warrantied to the owner for a period of two years from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor that it was purchased from. This ®... - Page 27 1.888.610.7664 www.calcert.com sales@calcert.com...
