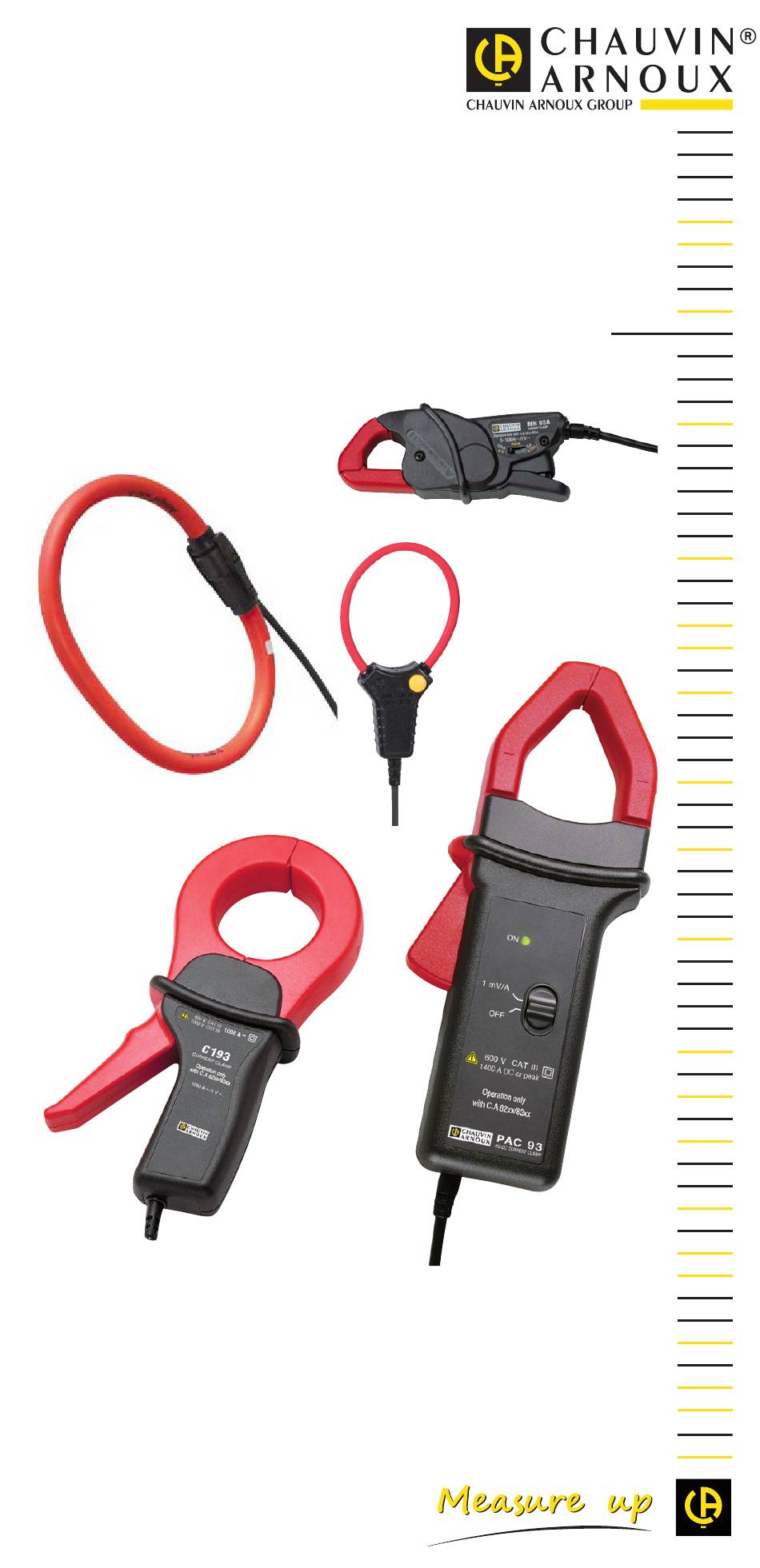

- Page 1 GB - User’s manual MN93, MN93A PAC93, C193 MA193 and MA196 MiniFlex ® A193, and A196A AmpFlex ® Current sensors...
- Page 2 English...
- Page 3 ENGLISH Thank you for purchasing a MN93, MN93A, C193 or PAC93 AC current clamp or a MiniFlex MA193 or MA196, AmpFlex A193 or A196A flexible current sensor. ® ® This current sensor should only be used only with C.A 82XX, C.A 83XX, C.A 84XX and PEL 1XX analysers.
-
Page 4: Table Of Contents
„ Any repairs must be carried out by accredited skilled personnel. CONTENTS 1. PRESENTATION ...................5 1.1. Clamps MN93 and MN93A ..............5 1.2. Clamp C193 ..................6 1.3. Clamp PAC93 ..................7 1.4. MiniFlex MA193 ................ -
Page 5: Presentation
1. PRESENTATION 1.1. CLAMPS MN93 AND MN93A Special 4-point plug. Fixed arm. Detachable arm. 2-position slide switch (for the MN93A clamp only). Trigger. Shielded cord. -
Page 6: Clamp C193

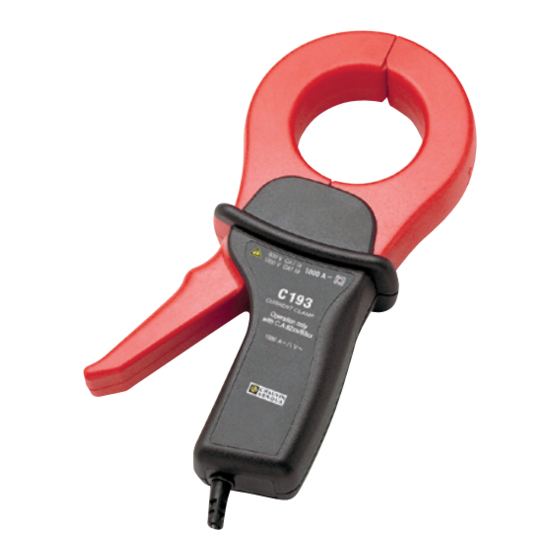

1.2. CLAMP C193 Fixed arm. Detachable arm. Special 4-point plug. Trigger. CURRENT CLAMP 1000 A /1 V Shielded cord. -
Page 7: Clamp Pac93
1.3. CLAMP PAC93 Detachable arm. Fixed arm. Special 4-point plug. Trigger. 2-position slide switch. 1400 A DC or peak Zero adjustment. Shielded cord. -
Page 8: Miniflex ® Ma193
1.4. MINIFLEX MA193 ® Core of the flexible sensor. Specific 4-point plug. M M A A 1 1 9 9 3 3 A A C C C C U U R R R R E E N N T T P P R R O O B B E E Sensor opening device. -
Page 9: Miniflex ® Ma196
1.5. MINIFLEX MA196 ® The connector on this sensor can be used to form a seal with the terminal to which it is connected, if the instrument has a threaded receptacle. Simply screw the ring on the connector onto the receptacle. Specific sealed 4-point plug. -
Page 10: Ampflex ® A193
1.6. AMPFLEX A193 ® Specific 4-point plug. Core of the flexible sensor. Sensor opening device. Shielded cord. - Page 11 1.7. AMPFLEX A196A ® The connector on this sensor can be used to form a seal with the terminal to which it is connected, if the instrument has a threaded receptacle. Simply screw the ring on the connector onto the receptacle. Specific sealed Core of the flexible 4-point plug.
-
Page 12: Delivery Condition
1.8. DELIVERY CONDITION Clamp MN93 Supplied in a cardboard box with: „ a user manual in 5 languages, „ a verification certificate. Clamp MN93A Supplied in a cardboard box with: „ a user manual in 5 languages, „ a verification certificate. -
Page 13: Use
The choice of current sensor to be used depends on the current to be measured and the diameter of the cables. MN93A MN93A MN93 100 A Measurement range * 0.05 - 240 A 0.005 - 6 A 0.1 - 120 A... - Page 14 For the clamps: „ Press the trigger on the clamp to open the jaws. „ Then clamp the cable that is to be measured. Where possible, the cable should be centred in the jaws of the clamp. „ Release the trigger. For the MiniFlex models: ®...
- Page 15 „ Close the sensor by forcing the moving part into the connector until you hear a click. For details of the measurement configuration and technical characteristics, refer to the user manual of the analyser with which you are using the current sensor.
-
Page 16: Characteristics
-40 °C to +70 °C and 10 % to 90% RH Degree of pollution Altitude < 2000 m 3.2. CONSTRUCTION SPECIFICATIONS MN93 and MN93A „ Dimensions (L x W x H) 135 x 51 x 30 mm „ Cord 3.50 metres long „... -
Page 17: Conformity To International Standards
Electrical safety according to IEC 61010-2-032. Maximum appliable voltage: „ MN93 and MN93A: 600 V Cat III or 300 V Cat IV „ C193: 1000 V Cat III or 600 V Cat IV „ PAC93: 600 V Cat III or 300 V Cat IV „... -
Page 18: Maintenance
4. MAINTENANCE Except for the batteries, the instrument contains no parts that can be replaced by personnel who have not been specially trained and accredited. Any unauthorized repair or replacement of a part by an “equivalent” may gravely impair safety. 4.1. -
Page 19: Warranty
„ Disconnect the old battery without pulling on the wires and connect the new one in its place, observing the polarity. Spent batteries must not be treated as ordinary household waste. Take them to the appropriate recycling collection point. „ Put the battery into its compartment. „... - Page 20 FRANCE Chauvin Arnoux Group 190, rue Championnet 75876 PARIS Cedex 18 Tél : +33 1 44 85 44 85 Fax : +33 1 46 27 73 89 info@chauvin-arnoux.com www.chauvin-arnoux.com INTERNATIONAL Chauvin Arnoux Group Tél : +33 1 44 85 44 38...
