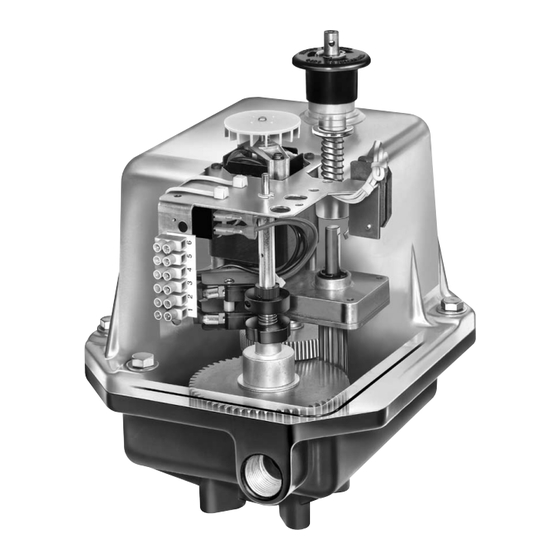

- Page 1 USER INSTRUCTIONS Installation Automax CENTURA™ CE Series Operation Electric Rotary Valve Actuator Maintenance FCD AXENIM0037-01 – 10/05 (Replaces AUTO-37) Experience In Motion...
-
Page 2: Maintenance
Automax CENTURA™ CE Series FCD AXENIM0037-01 – 12/05 Introduction Caution: Use heavy duty brake option ‘K’ for rubber lined butterfly valves & dampers or applications that may back The Centura electric actuator is a rotary valve actuator with output drive the unit. torques from 250 to 1,500 in-lbs. -
Page 3: Manual Override
A sticker can be placed on either side of the unit to produce a visual indication of the opened and closed position of the actuator. flowserve.com... - Page 4 Automax CENTURA™ CE Series FCD AXENIM0037-01 – 12/05 Common Parts Related to All Actuators item Material Painted Cover Cast Aluminum 106100 ⁄ -24UNF HHCS/Shank Stainless Steel 103233 ⁄ Type A Washer Stainless Steel 103715 1/2" Sleeve Bearing Sintered Bronze 105590 Molded Oil Seal Nitrile 105585...
- Page 5 Plastic 106243 Quick Connect Plastic/Steel 106761 6 Position Terminal Strip Plastic/Steel 103997 2 Screw Marker Strip Plastic 103996 3-48 UNC x 1/2" Pan Head Steel/Plated 104837 115 VAC Wire Harness Copper/Plastic 106111 115 VAC Schematic Sticker Gloss Paper 815169 flowserve.com...
- Page 6 Automax CENTURA™ CE Series FCD AXENIM0037-01 – 12/05...
- Page 7 Automax CENTURA™ CE Series FCD AXENIM0037-01 – 12/05 flowserve.com...
- Page 8 Automax CENTURA™ CE Series FCD AXENIM0037-01 – 12/05 Additional Parts Specific To 115 VAC With ESP Servo Positioner Additional Parts Specific To 12 VDC Actuators CE2b, CEb, CE7b, Actuators CE2ATA, CEATA, CE7ATA, CE1ATA, CE5ATA CE1b, CE5b item Material item Material 115 VAC PSC Motor Ext.
-
Page 9: Wiring Diagrams
Wiring diagrams show internal wire connections and suggested customer connection for proper use. Switches shown in “customer wiring” are for illustration only and are not supplied with the actuator. Reversible AC Actuator Reversible AC Actuator with 2 Extra Switches Reversible Modulating AC Actuator flowserve.com... - Page 10 Automax CENTURA™ CE Series FCD AXENIM0037-01 – 12/05 Typical Actuator Specifications Action Reversible Range of Adjustability 0° -270° Supply Voltages 115 VAC +/-10% 230 VAC 50/60 Hz 24 VAC 12 VDC 24 VDC Temperature Rating -40°F (-40°C) to 160°F (70°C) Enclosure Ratings Nema 4, 4X, 7, 9 Watertight and Explosion-proof Class I Groups C&D, Div.
-
Page 11: Troubleshooting
Check to see that the actuator is not stalling. Check the ambient temperature rating. The permanent split capacitor units are equipped with thermal cut-outs. Excessive temperatures and cycle frequencies may heat the motor up and the thermal cut-out turns it off. flowserve.com... - Page 12 Flowserve Corporation has established industry leadership in the design and manufacture of its products. When properly selected, this Flowserve product is designed to perform its intended function safely during its useful life. However, the purchaser or user of Flowserve products should be aware that Flowserve products might be used in numerous applications under a wide variety of industrial service conditions.
