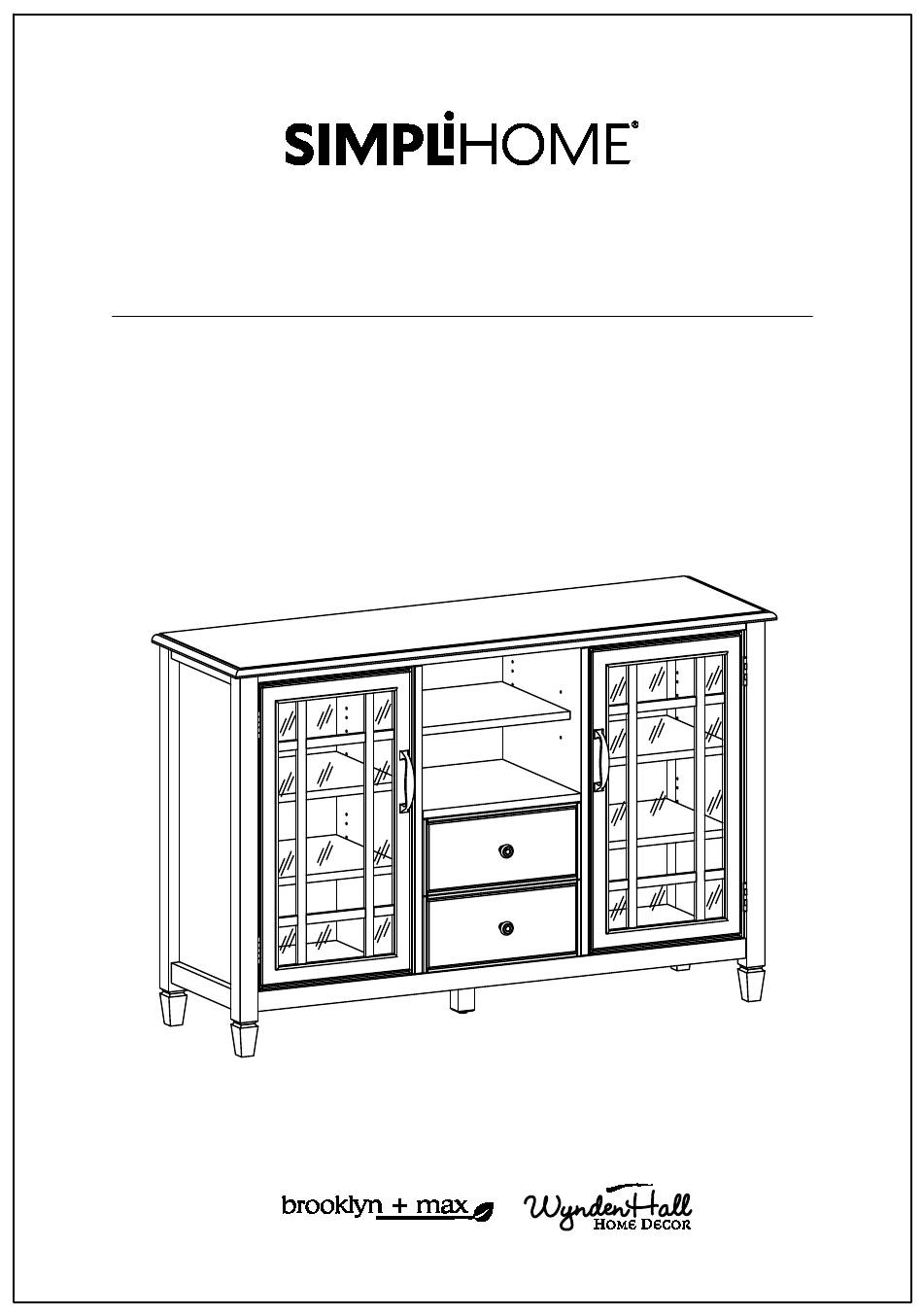

- Page 1 Connaught / Hampshire / Somerset Tall TV Stand Model # AXCCON-17...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
-
Page 8: Maximum Load 25 Lbs
WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury. If a customer wants to use this unit as a TV stand, you must install the TV at position 4 inches from the front edge of console to prevent it from tipping over. -
Page 9: Pre-Assembly Information
Pre-Assembly Information Model # AXCCON-17 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM FRAME LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 CABINET SHELF CENTRE SHELF BOTTOM SUPPORT LEG QTY 5 QTY 1 QTY 1... -
Page 10: Drawer Bottom
Pre-Assembly Information Model # AXCCON-17 Part Description Warning Label LEFT BACK PANEL RIGHT BACK PANEL MIDDLE BACK PANEL QTY 1 QTY 1 QTY 1 LEFT DOOR RIGHT DOOR DRAWER FRONT QTY 1 QTY 1 QTY 2 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM QTY 2... - Page 11 Pre-Assembly Information Model # AXCCON-17 Hardware Description WOOD DOWEL ALLEN KEY BOLT CAM LOCK PIN ALLEN KEY SCREW M6 X 35mm Ø8 X 30mm CAM LOCK M6 X 30mm QTY 12 QTY 12 QTY 20 QTY 14 SETS WASHER HANDLE HANDLE ALLEN KEY M4 X 30mm - QTY 2...
- Page 12 Components - Key Diagram Model # AXCCON-17...
- Page 13 Assembly Model # AXCCON-17 Step 1 1. Attach four Cam Lock Pins 3 into pre-drilled holes on back of Drawer Front J . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides KL , KR . 2.
- Page 14 Assembly Model # AXCCON-17 Step 3 1. Slide Drawer Bottom M firmly into slots on Drawer Sides KL , KR and Drawer Front J . 2. Align Drawer Back L with Drawer Bottom M and press firmly into slot. 3. Attach Drawer Back using two Allen Key Screws 2 through guide holes on each Drawer Side KL , KR .
- Page 15 Assembly Model # AXCCON-17 Step 4 1. Use Phillips screwdriver to attach Handle 7 to Drawer Front J . Repeat Step 1-4 for the second drawer.
- Page 16 Assembly Model # AXCCON-17 Step 5 1. Attach three Cam Lock Pins 3 into pre-drilled holes on each Divider DL , DR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Wood Dowels 1 into guide holes on Sides BL , BR , Dividers DL , DR , Bottom Frame C and Centre Shelf E .
- Page 17 Assembly Model # AXCCON-17 Step 6 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Dividers DL , DR to Centre Shelf E . 2. Insert six Cam Locks 3 into guided holes on Centre Shelf E . 3.
- Page 18 Assembly Model # AXCCON-17 Step 7 1. Align Wood Dowels with guide holes and attach Dividers DL , DR to Bottom Frame C . 2. Use six Allen Key Screws 2 to attach Bottom Frame C through guide holes. 3. Use Allen Key 6 to tighten Bolts. Do not over-tighten.
- Page 19 Assembly Model # AXCCON-17 Step 8 1. Align Bottom Support Leg G with pre-drilled holes on back of Bottom Frame C . Use Phillips Screwdriver to tighten four Phillips Screws 9 . Step 9 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom Frame C .
- Page 20 Assembly Model # AXCCON-17 Step 10 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Top A . 2. Use three Allen Key Bolts 4 and Washer 5 to attach each Side BL , BR through guide holes.
- Page 21 Assembly Model # AXCCON-17 Note: Step 11 Warning Label 1. Use Phillips Screws Round Head 10 to attach Back Panels HL , HR , H through guide holes from Back Panels to the back of cabinet . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
- Page 22 Assembly Model # AXCCON-17 First Step Step 12 Last Step ( after adjust the door )
- Page 23 Assembly Model # AXCCON-17 Step 13 1. Attach Magnets 12 to Dividers DL , DR using Phillips Screws 13 into pre-drilled holes on Dividers DL , DR . 2. Attach Magnet Plates 12 using Phillips Screws 13 into pre-drilled holes on Doors IL , IR . 3.
- Page 24 Assembly Model # AXCCON-17 Step 14 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 14 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 14 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 25 Assembly Model # AXCCON-17 Step 15 1. Insert assembled drawers into glides on assembled TV. Note: Leveler on bottom of leg can be adjusted if floor is uneven.
- Page 26 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 16 NOTE: The screwdriver is not included in the hardware pack.
- Page 27 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
