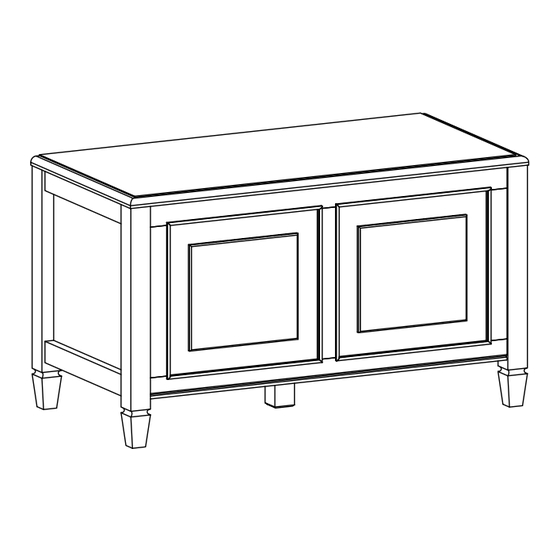

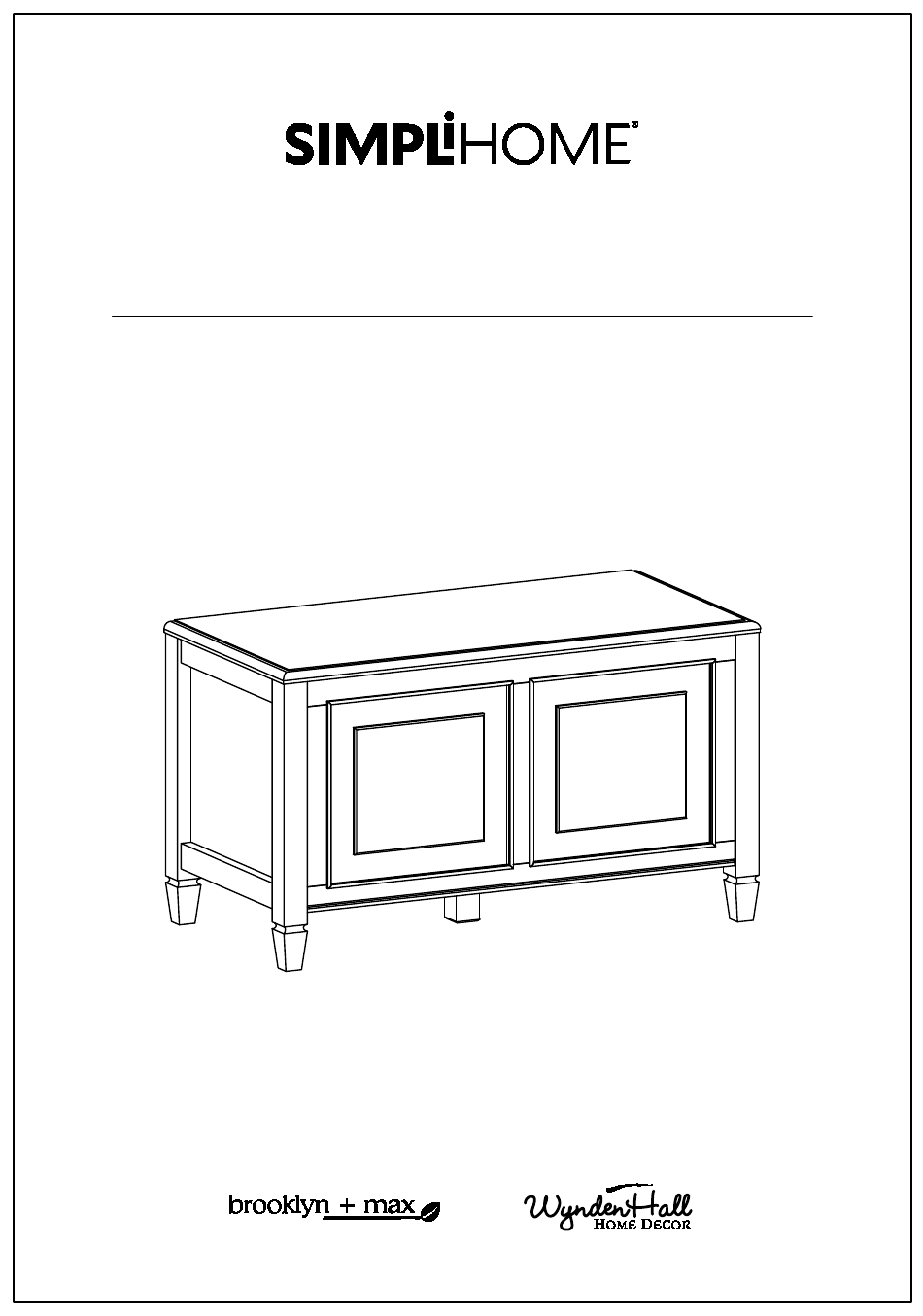

- Page 1 Connaught / Hampshire / Somerset Small Storage Bench Trunk Model # AXCCON42SM...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCCON42SM Part Description FRONT SEAT SIDE QTY 1 QTY 1 QTY 2 DIVIDER BOTTOM PANEL BACK QTY 1 QTY 1 QTY 1 BOTTOM SUPPORT LEG QTY 1...
- Page 8 Pre-Assembly Information Model # AXCCON42SM Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK Ø8 X 30mm M6 X 30mm QTY 4 SETS QTY 8 QTY 12 PHILLIPS SCREW ALLEN KEY LID SUPPORT M4 X 30mm QTY 1 QTY 1 QTY 4 PHILLIPS SCREW...
- Page 9 Components - Key Diagram Model # AXCCON42SM...
- Page 10 Assembly Model # AXCCON42SM Step 1 1. Attach two Cam Lock Pins 3 into pre-drilled holes at Front C and Back D . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert four Dowels 1 into guide holes on each Front C , Back D . 4.
- Page 11 Assembly Model # AXCCON42SM Step 2 1. Align Cam Lock Pins with guide holes and attach Divider E to Front C and Back D . 2. Insert four Cam Locks 3 into guide holes on Divider E . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
- Page 12 Assembly Model # AXCCON42SM Step 3 1. Align Wood Dowels with guide holes and attach Front C and Back D to Left Side BL . 2. Use thee Allen Key Screws 2 to attach Front C and Back D to Left Side BL . 3.
- Page 13 Assembly Model # AXCCON42SM Step 4 1. Slide Bottom Panel G firmly into slots on Font C , Back D and Left Side BL .
- Page 14 Assembly Model # AXCCON42SM Step 5 1. Align Wood Dowels with guide holes and attach Right Side BR to parts C , D . 2. Use three Allen Key Screws 2 to attach each Front C and Back D to Right Side BR . 3.
- Page 15 Assembly Model # AXCCON42SM Step 6 1. Attach Seat A to three Hinges on Back D using Phillips Screws 7 (using pre-drilled holes underneath of Seat ). 2. Use phillips screwdriver to tighten Screws. Do not over-tighten.
- Page 16 Assembly Model # AXCCON42SM Step 7 1. Attach Lid Support 5 into pre-drilled holes of Seat A and Divider E using Phillips Screws Round Head 8 . 2. Use phillips screwdriver to tighten Screws. Do not over-tighten.
