SIMPLIHOME brooklyn + max WyndenHall AXCCON47W Manual

Connaught / hampshire / somerset wide entryway storage cabinet
Hide thumbs

Advertisement

Table of Contents

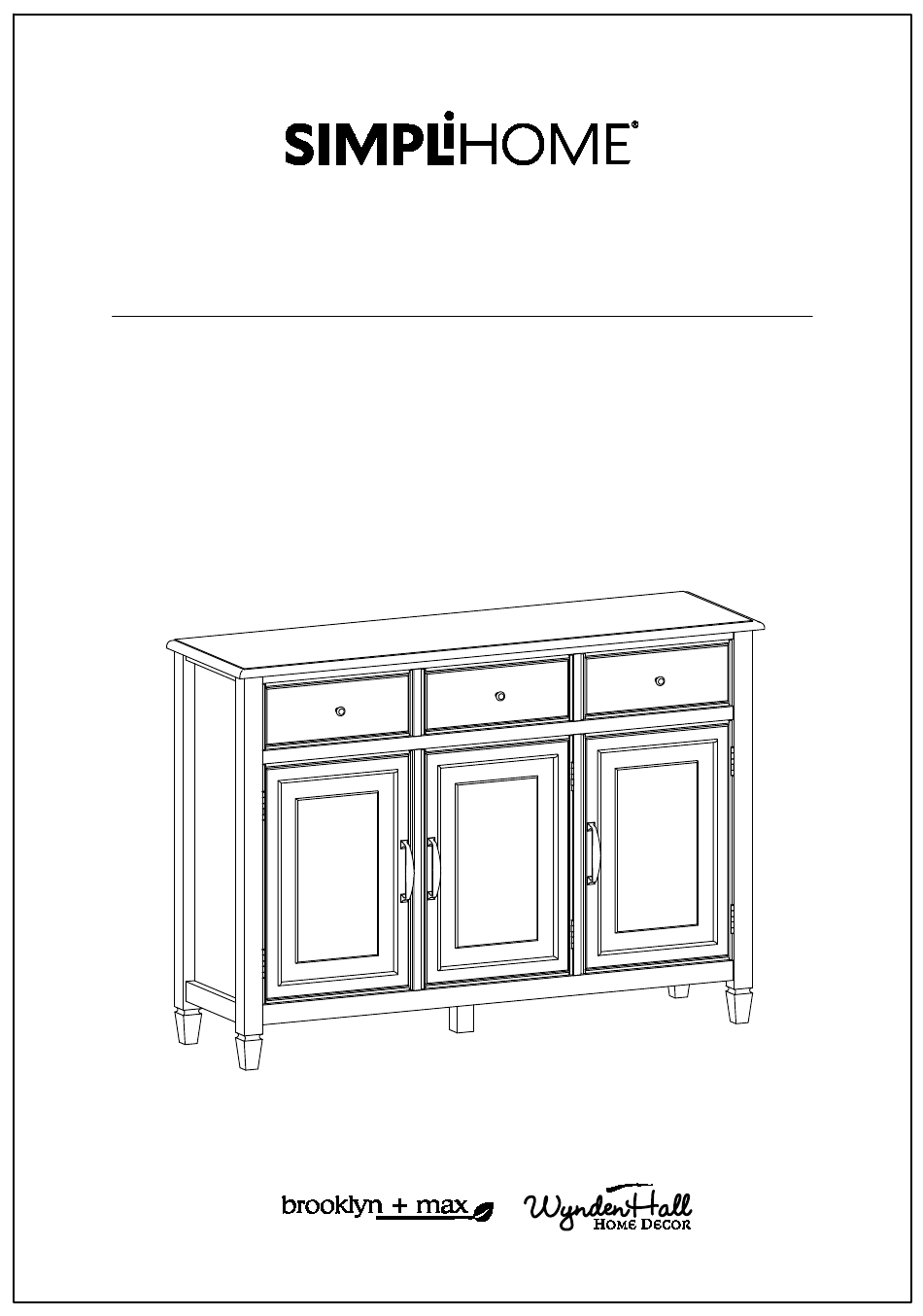

Connaught / Hampshire / Somerset
Wide Entryway Storage Cabinet
Model # AXCCON47W
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCCON47W and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCCON47W

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCCON47W

  • Page 1 Connaught / Hampshire / Somerset Wide Entryway Storage Cabinet Model # AXCCON47W...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.

  • Page 7: Pre-Assembly Information

    Pre-Assembly Information Model # AXCCON47W Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT LARGE DIVIDER RIGHT LARGE DIVIDER LEFT SMALL DIVIDER QTY 1 QTY 1 QTY 1 RIGHT SMALL DIVIDER BOTTOM FRAME MIDDLE FRAME QTY 1 QTY 1 QTY 1...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCCON47W Part Description Warning Label RIGHT BACK PANEL BOTTOM SUPPORT LEG LEFT BACK PANEL QTY 1 QTY 1 QTY 1 SHELF MIDDLE BACK PANEL DOOR QTY 3 QTY 1 QTY 3 RIGHT DRAWER SIDE DRAWER FRONT LEFT DRAWER SIDE QTY 3 QTY 3...
  • Page 9 Pre-Assembly Information Model # AXCCON47W Hardware Description WASHER ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK PIN M6 X 35mm M6 X 30mm CAM LOCK Ø6.5 / Ø16 X 1mm QTY 12 QTY 30 QTY 12 QTY 16 SETS WOOD DOWEL HANDLE HANDLE ALLEN KEY...
  • Page 10 Components - Key Diagram Model # AXCCON47W...
  • Page 11 Components - Key Diagram Model # AXCCON47W Step 1 1. Attach four Cam Lock Pins 4 into pre-drilled holes on back of Drawer Front K . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1.
  • Page 12 Components - Key Diagram Model # AXCCON47W Step 3 1. Slide Drawer Bottom N firmly into slots on Drawer Sides LL , LR and Drawer Front K . 2. Align Drawer Back M with Drawer Bottom N and press firmly into slot . 3.
  • Page 13 Components - Key Diagram Model # AXCCON47W Step 4 1. Use Phillips screwdriver to attach Handle 6 to Drawer Front K . Repeat Step 1-4 for the two other drawers.
  • Page 14 Assembly Model # AXCCON47W Step 5 1. Insert two Wood Dowels 8 into guide holes on Sides BL , BR , Dividers CL , CR , Middle Frame E and Bottom Shelf F . 2. Use rubber mallet to tap Dowels 8 into bottom of holes securely. 1/3 length of Dowels should be exposed.
  • Page 15 Assembly Model # AXCCON47W Step 6 1. Attach Dividers DL , DR to Middle Frame E using six Allen Key Screws 3 through guide holes. 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
  • Page 16 Assembly Model # AXCCON47W Step 7 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Dividers CL , CR to Middle Shelf F . 2. Insert two Cam Locks 4 into guided holes on each Divder CL , CR . 3.
  • Page 17 Assembly Model # AXCCON47W Step 8 1. Align Wood Dowels with guide holes and attach Dividers CL , CR to Bottom Frame F . 2. Use six Allen Key Screws 3 to attach Dividers CL , CR through guide holes. 3.
  • Page 18 Assembly Model # AXCCON47W Step 9 1. Align Bottom Support Leg G with pre-drilled holes on back of Bottom Frame F . Use Phillips Screwdriver to tighten four Phillips Screws 12 . Step 10 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Middle Frame E and Bottom Frame F .
  • Page 19 Assembly Model # AXCCON47W Step 11 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Top A . 2. Use three Allen Key Bolts 1 and Washer 2 to attach each Side BL , BR through guide holes.
  • Page 20 Assembly Model # AXCCON47W Note: Step 12 Warning Label 1. Use Phillips Screws Round Head 13 to attach Back Panels HL , HR , H through guide holes from Back Panels to the back of cabinet . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
  • Page 21 Assembly Model # AXCCON47W Step 13 First Step Last Step ( after adjust the door )
  • Page 22 Assembly Model # AXCCON47W Step 14 1. Attach Magnets 9 to Dividers CL , CR using Phillips Screws 10 into pre-drilled holes on Dividers CL , CR . 2. Attach Magnet Plates 9 using Phillips Screws 10 into pre-drilled holes on Doors I . 3.
  • Page 23 Assembly Model # AXCCON47W Step 15 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 14 for each Cabinet Shelf J in desired location. 2. Two Shelf Supports 14 may be used on back top of each Cabinet Shelf J as a tipping restraint.
  • Page 24 Assembly Model # AXCCON47W Step 16 1. Insert assembled drawers into glides on assembled sideboard. Note: Leveler on bottom of leg can be adjusted if floor is uneven.
  • Page 25 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 17 NOTE: The screwdriver is not included in the hardware pack.
  • Page 26 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
