SIMPLIHOME brooklyn + max WyndenHall AXCCOS72-FG Assembly Instructions Manual

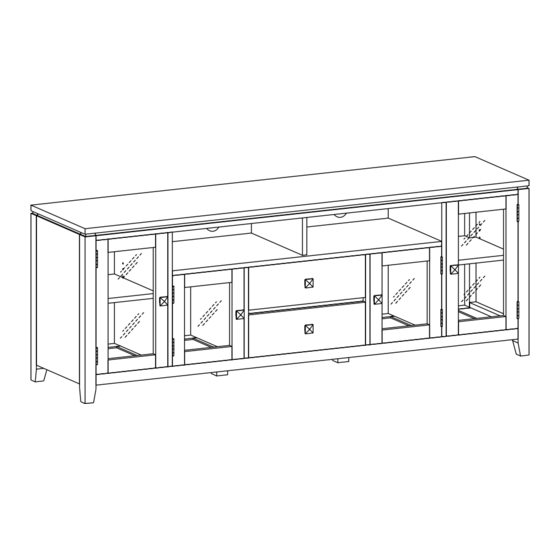

72 inch wide tv media stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SIMP
I
HOME
®
I
L I F E B Y D E S I G N
COSMOPOLITAN / CITY / ESSEX
72 INCH WIDE TV MEDIA STAND
MODEL # AXCCOS72-FG
1/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCCOS72-FG and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCCOS72-FG

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCCOS72-FG

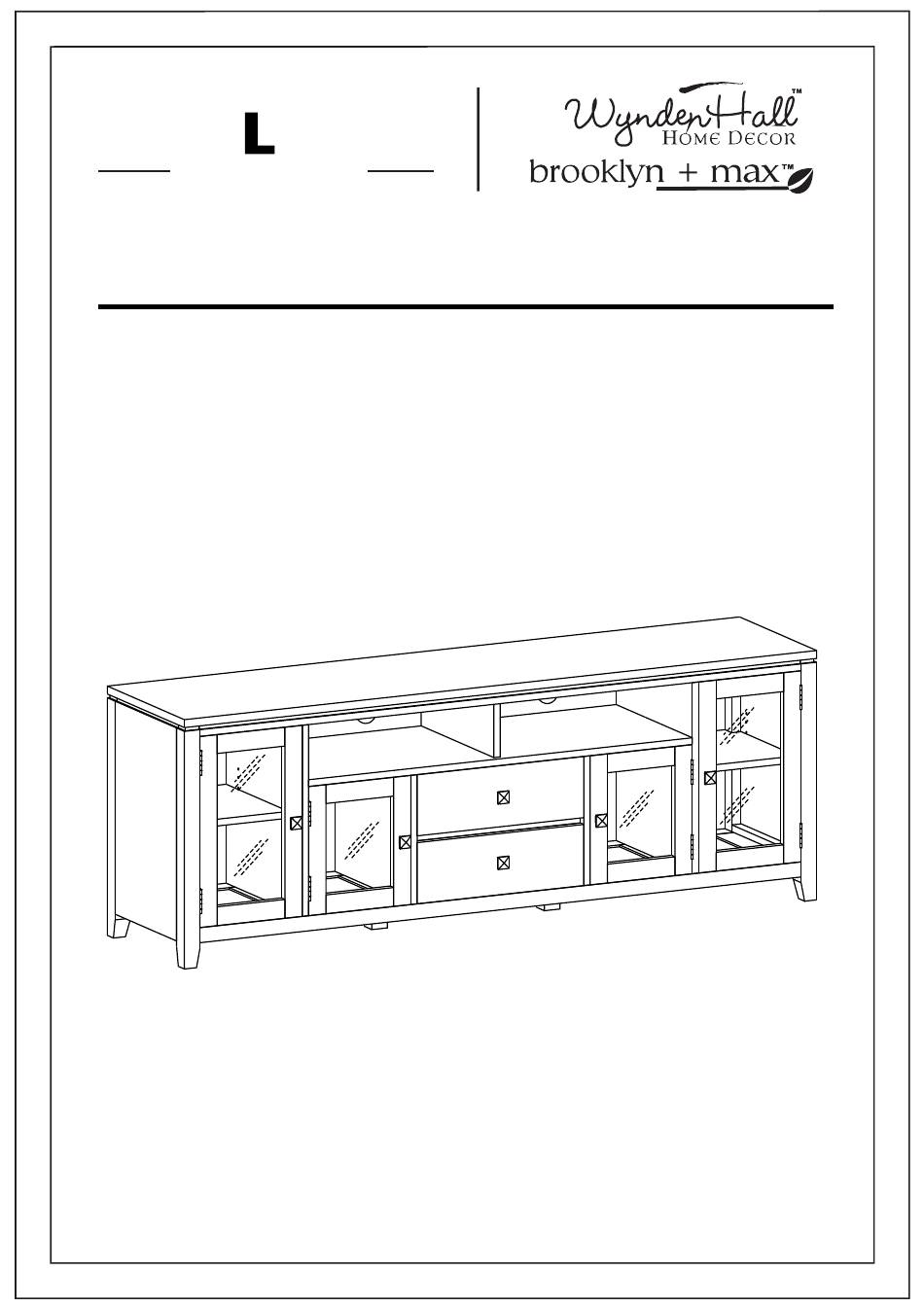

  • Page 1 SIMP HOME ® L I F E B Y D E S I G N COSMOPOLITAN / CITY / ESSEX 72 INCH WIDE TV MEDIA STAND MODEL # AXCCOS72-FG 1/23...
  • Page 2 SIMP HOME ® L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXCCOS72-FG PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF TOP SHELF CENTRE SHELF QTY 1 QTY 1 QTY 1 TOP DIVIDER LEFT MIDDLE DIVIDER RIGHT MIDDLE DIVIDER QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCCOS72-FG PARTS DESCRIPTION LEFT SHELF LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 RIGHT SHELF SMALL DOOR (L&R Same) LARGE DOOR (L&R Same) QTY 1 QTY 2 QTY 2 Warning Label LEFT BACK PANEL RIGHT BACK PANEL TOP BACK PANEL QTY 1...
  • Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCCOS72-FG PARTS DESCRIPTION FLIP DOWN DOOR BOTTOM BACK PANEL BOTTOM SUPPORT LEG QTY 1 QTY 2 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part,...

  • Page 8: Hardware Description

    PRE-ASSEMBLY INFORMATION MODEL # AXCCOS72-FG HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW HANDLE ALLEN KEY M6 X 30 mm CAM LOCK M4 X 25 mm QTY 1 QTY 22 SETS QTY 34 QTY 6 SETS PHILLIPS SCREW ROUND HEAD HINGE SHELF SUPPORT MAGNET AND PLATE...
  • Page 9 COMPONENTS – KEY DIAGRAM MODEL # AXCCOS72-FG 9/23...
  • Page 10 ASSEMBLY MODEL # AXCCOS72-FG STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front O . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides PL , PR . 3. Insert 2 Cam Lock 2 into guide holes on each Drawer Side PL , PR . 4.
  • Page 11 ASSEMBLY MODEL # AXCCOS72-FG STEP 3 1. Align Drawer Back Q with Drawer Bottom R and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen key 3 to tighten. Do not over tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
  • Page 12 ASSEMBLY MODEL # AXCCOS72-FG STEP 5 1. Insert 6 Dowels 12 into Centre Shelf E . 2. Use rubber mallet to tap Dowels 12 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align Dowels 12 with guide holes and attach Middle Divider GL , GR . STEP 6 1.
  • Page 13 ASSEMBLY MODEL # AXCCOS72-FG STEP 7 1. Attach 3 Cam Lock Pins 2 to each Divider HL , HR . 2. Align Cam Lock Pins guide holes and attach Top Shelf D . 3. Insert 6 Cam Lock 2 into guide holes on Top Shelf D . 4.
  • Page 14 ASSEMBLY MODEL # AXCCOS72-FG STEP 9 1. Insert 4 Dowels 12 into Bottom Shelf C . 2. Use rubber mallet to tap Dowels 12 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach 3 Cam Lock Pins 2 to each Side BL , BR . 4.
  • Page 15 ASSEMBLY MODEL # AXCCOS72-FG STEP 10 1. Insert 2 Dowels 12 into top corners of each Side BL , BR . 2. Use rubber mallet to tap Dowels 12 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
  • Page 16 ASSEMBLY MODEL # AXCCOS72-FG Warning Label STEP 11 1. Attach Back Panels LL , LR , L1 , L2 to back of TV stand using Phillips Screws Round Head 5 into guide holes. 2. Use Phillips screwdriver to tighten screws. 16/23...
  • Page 17 ASSEMBLY MODEL # AXCCOS72-FG STEP 12 Last Step ( after adjust the door ) First Step 1. Attach hinges on Large Doors J to Sides BL , BR and attach hinges on Small Doors K to Dividers HL , HR using Phillips Screws 9 into pre-drill holes: - Using Phillips screwdriver to attach Screws 9 at middle hole of hinges for both top &...
  • Page 18 ASSEMBLY MODEL # AXCCOS72-FG STEP 13 1. Attach Magnet Plates 7 to bottom corner of Doors J & K using Phillip Screw 10 into pre-drilled holes on Doors J & K . 2. Attach Magnets 7 using Phillip Screws 10 into pre-drilled holes Bottom Shelf C . 3.
  • Page 19 ASSEMBLY MODEL # AXCCOS72-FG STEP 14 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 8 for each shelf IL , IR in desired location. 2. 2 Shelf Supports 8 may be used on back top of each shelf IL , IR as a tipping restraint. 19/23...
  • Page 20 ASSEMBLY MODEL # AXCCOS72-FG STEP 15 1. Insert assembled drawer into glides on assembled TV 20/23...
  • Page 21 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not STEP 16 included in the hardware pack.
  • Page 22 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.

  • Page 23: Warranty

    SIMP HOME ® L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
