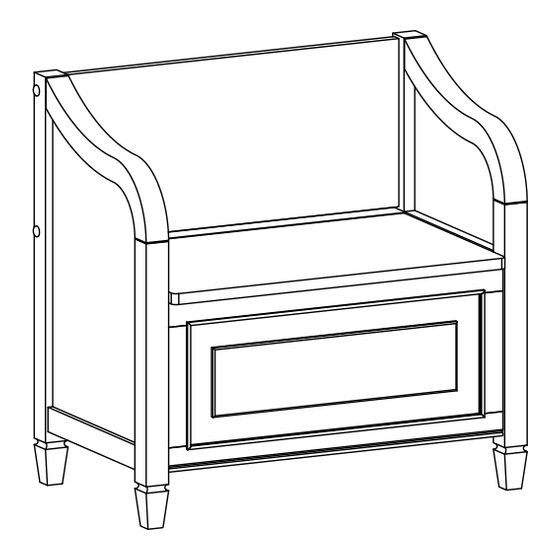

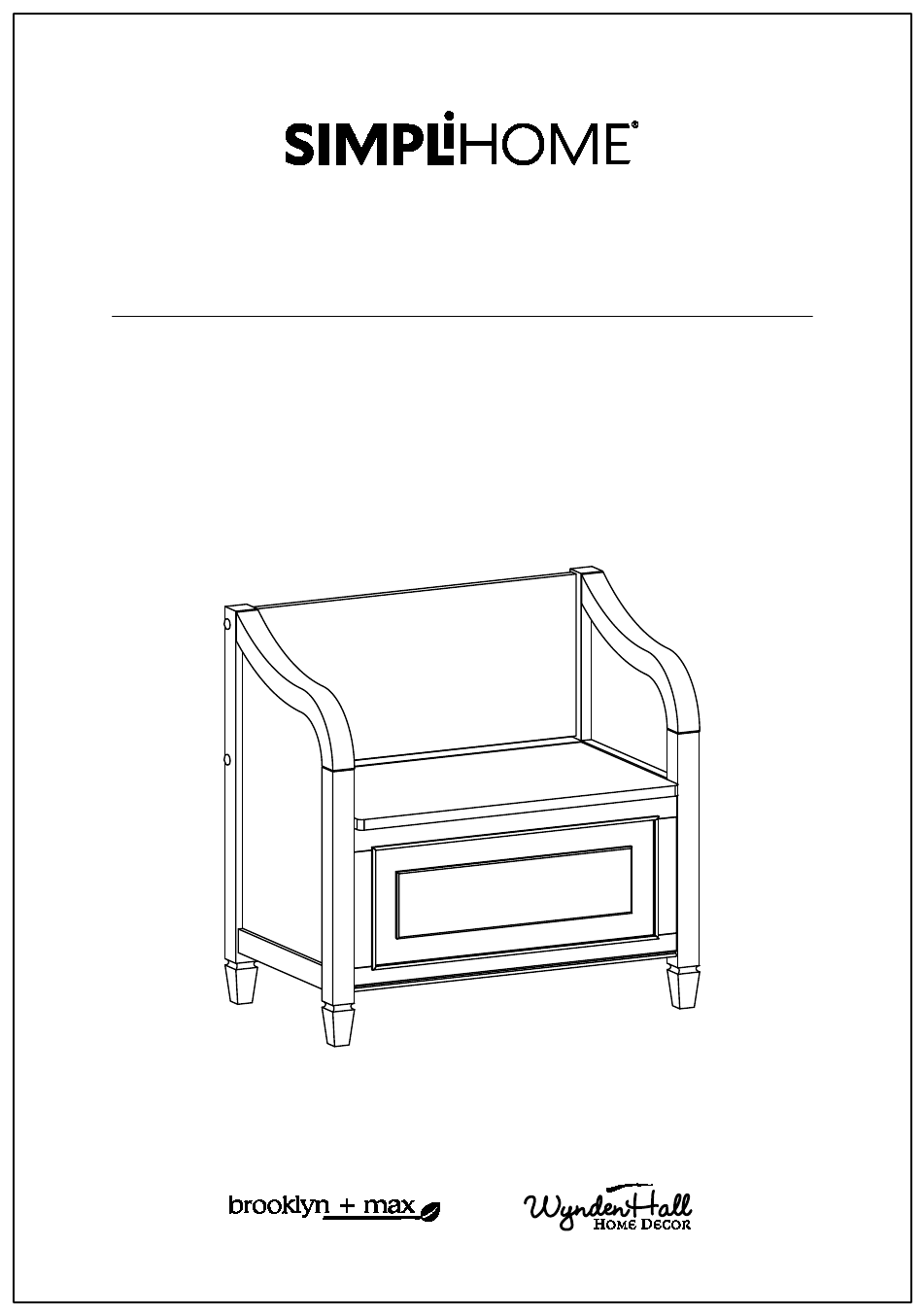

- Page 1 Connaught / Hampshire / Somerset Small Entryway Storage Bench Model # AXCCON-09SM...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCCON-09SM Part Description SEAT LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 FRONT BACKREST BACK QTY 1 QTY 1 QTY 1 BOTTOM PANEL QTY 1...
- Page 8 Pre-Assembly Information Model # AXCCON-09SM Hardware Description WOOD DOWEL ALLEN KEY SCREW ALLEN KEY BOLT Ø8 X 30mm M6 X 30mm M6 X 50mm QTY 10 QTY 12 QTY 4 PHILLIPS SCREW ALLEN KEY LID SUPPORT M4 X 15mm QTY 1 QTY 1 QTY 4 PHILLIPS SCREW...
- Page 9 Components - Key Diagram Model # AXCCON-09SM...
- Page 10 Assembly Model # AXCCON-09SM Step 1 1. Insert Dowels 1 into guide holes on Front C , Back D and Backrest E . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCCON-09SM Step 2 1. Align Wood Dowels with guide holes and attach Front C and Back D to Left Side BL . 2. Use thee Allen Key Screws 2 to attach Front C and Back D to Left Side BL . 3.
- Page 12 Assembly Model # AXCCON-09SM Step 3 1. Slide Bottom Panel F firmly into slots on Font C , Back D and Left Side BL . 2. Align Wood Dowel with guide holes and attach Backrest E to Left Side BL . 3.
- Page 13 Assembly Model # AXCCON-09SM Step 4 1. Use two Allen Key Bolts 3 to attach Left Side BL to Backrest E . 2. Use three Allen Key Screws 2 to attach each Front C and Back D to Right Side BR . 3.
- Page 14 Assembly Model # AXCCON-09SM Step 5 1. Attach Hinges on Seat A to Back D using Phillips Screws 6 into pre-drilled holes. 2. Use phillips screwdriver to tighten Screws. Do not over-tighten. 3. Attach Lid Support 5 into pre-drilled holes of Seat A and Left Side BL using Phillips Screws Round Head 7 .
- Page 15 Assembly Model # AXCCON-09SM Step 6 1. Insert Bolt Caps 8 into exposed bolt holes on Sides BL , BR . 2. Use rubber mallet to tap Bolt Caps 8 into drilled holes securely.
