SIMPLIHOME Connaught AXCCON42-RNAB Manual

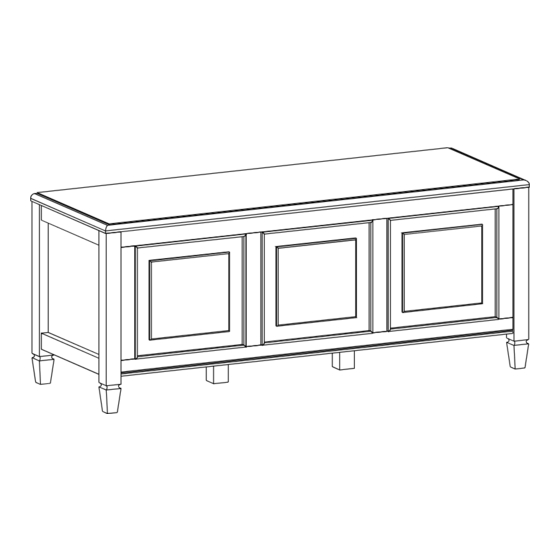

Storage bench trunk
Hide thumbs

Advertisement

Quick Links

Download this manual

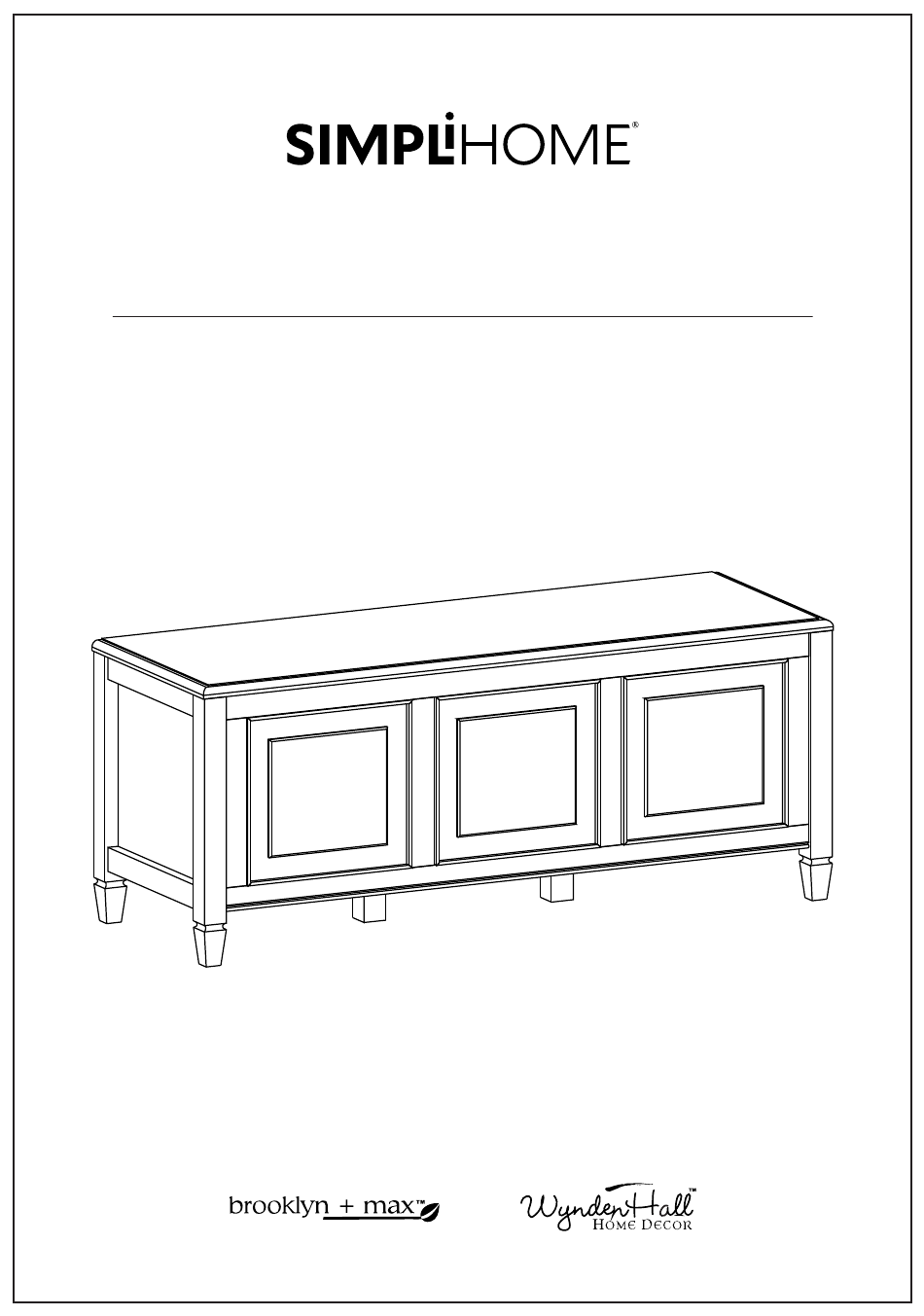

Connaught / Hampshire / Somerset
Storage Bench Trunk
Model # AXCCON42-RNAB
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Connaught AXCCON42-RNAB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME Connaught AXCCON42-RNAB

Summary of Contents for SIMPLIHOME Connaught AXCCON42-RNAB

  • Page 1 Connaught / Hampshire / Somerset Storage Bench Trunk Model # AXCCON42-RNAB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCCON42-RNAB Part Description SEAT SIDE (L&R Same) QTY 1 QTY 2 BACK FRONT QTY 1 QTY 1 BOTTOM PANEL DIVIDER (L&R Same) QTY 1 QTY 2 BOTTOM SUPPORT LEG QTY 2...

  • Page 8: Pre-Assembly Information

    Pre-Assembly Information Model # AXCCON42-RNAB Hardware Description ALLEN KEY SCREW CAM LOCK PIN WOOD DOWEL M6 x 30 mm CAM LOCK Ø8 X 30 mm QTY 8 SET QTY 12 QTY 8 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm M3.5 X 15 mm ALLEN KEY QTY 8...
  • Page 9 Components - Key Diagram Components - Key Diagram Model # AXCCON42-RNAB Model # AXCCON42-RNAB...
  • Page 10 Assembly Model # AXCCON42-RNAB Step 1 Small pre-drilled holes 1. Attach 4 Cam Lock Pins 2 to Back D into guide holes. 2. Align and insert Cam Lock Pins on Back D into pre-drilled holes on Dividers E . ( Note: please pay close attention to the location of the 2 small guide holes which accommodate the lid support.
  • Page 11 Assembly Model # AXCCON42-RNAB Step 2 1. Attach Bottom Panel F to Divider E & Back D by sliding on the gap between Divider E & the long rail on Back D .
  • Page 12 Assembly Model # AXCCON42-RNAB Step 3 1. Attach 4 Cam Lock Pins 2 to Front C into guide holes. 2. Align and insert Cam Lock Pins on Front C into pre-drilled holes on Dividers E . 3. Place 4 Cam Locks 2 into pre-drilled holes on Dividers E (2 Cam Locks / each Divider ). 4.
  • Page 13 Assembly Model # AXCCON42-RNAB Step 4 1. Insert 4 Dowels 3 into each Side B at specified location. 2. Align pre-drilled holes on side bars of Front C & Back D with Dowel 3 on Sides B . 3. Attach Front C & Back D to Sides B using 12 Allen Key Screws 1 through pre- drilled holes ( 6 Screws / each Side B ).
  • Page 14 Assembly Model # AXCCON42-RNAB Step 5 1. Attach 2 Bottom Support Legs G into pre-drilled holes of Bottom Panel F using 8 Phillips Screws 7 ( 4 Screws / each part ). 2. Use Phillips screwdriver to tighten Screws. Do not over-tighten.
  • Page 15 Assembly Model # AXCCON42-RNAB Step 6 1. Attach Seat A to 3 Hinges on Back D using Phillips Screws 6 ( using guide holes underneath of Seat ). 2. Use phillips screwdriver to tighten Screws. Do not over-tighten. Step 7 Lid Support-Left Lid Support-Right 1.
