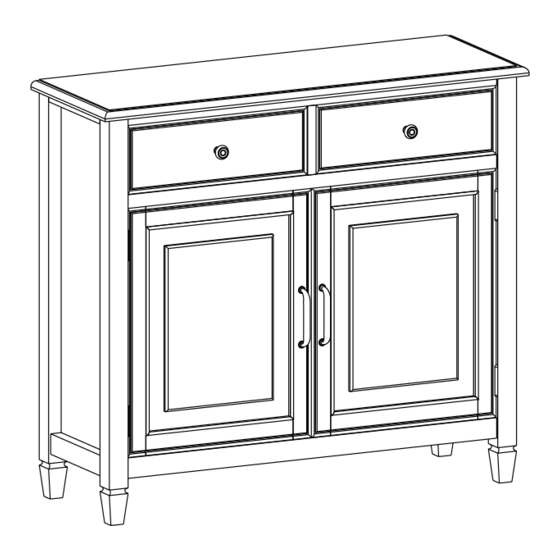

- Page 1 Connaught / Hampshire / Somerset Entryway Storage Cabinet Model # AXCCON-04RNAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCCON-04RNAB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 SMALL DIVIDER LARGE DIVIDER MIDDLE FRAME QTY 1 QTY 1 QTY 1 BOTTOM SHELF DOOR (L&R Same) CABINET SHELF QTY 1 QTY 2 QTY 2...
- Page 8 Pre-Assembly Information Model # AXCCON-04RNAB Part Description Warning Label DRAWER FRONT LEFT BACK RIGHT BACK QTY 2 QTY 1 QTY 1 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 2 QTY 2 QTY 2 DRAWER BOTTOM QTY 2...
- Page 9 Pre-Assembly Information Model # AXCCON-04RNAB Hardware Description ALLEN KEY SCREW WOOD DOWEL CAM LOCK PIN ALLEN KEY M6 X 30 mm Ø8 X 30 mm CAM LOCK QTY 1 QTY 26 QTY 16 QTY 16 SETS PHILLIPS SCREW ROUND HEAD PHILLIPS SHORT SCREW PHILLIPS MEDIUM SCREW SHELF SUPPORT...
- Page 10 Components - Key Diagram Components - Key Diagram Model # AXCCON-04RNAB Model # AXCCON-04RNAB...
- Page 11 Assembly Model # AXCCON-04RNAB Step 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front J . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides KL , KR. 3. Insert 2 Cam Locks 2 into guide holes on each Drawer Side KL , KR. 4.
- Page 12 Assembly Model # AXCCON-04RNAB Step 3 1. Align Drawer Back L with Drawer Bottom M and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each Side KL , KR. 3. Use Allen Key 4 to tighten screws. Do not over-tighten. Step 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 13 Assembly Model # AXCCON-04RNAB Step 5 1. Attach Small Divider D to Middle Frame E using 2 Allen Key Screws 1 . 2. Use Allen Key 4 to tighten screws. Do not over-tighten. Step 6 1. Insert 2 Dowels 3 into guide holes on Large Divider C . 2.
- Page 14 Assembly Model # AXCCON-04RNAB Step 7 1. Insert 2 Dowels 3 into guide holes on Large Divider C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3. Attach Large Divider C to Bottom Shelf F using 3 Allen Key Screws 1 through guide holes.
- Page 15 Assembly Model # AXCCON-04RNAB Step 8 1. Insert 4 Dowels 3 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3.
- Page 16 Assembly Model # AXCCON-04RNAB Step 9 1. Insert 2 Dowels 3 into top corners of each Side BL , BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3.
- Page 17 Assembly Model # AXCCON-04RNAB Last Step ( after adjust the door ) Step 11 First Step 1. Attach hinges on Doors H to Sides BL , BR using Phillips Screws 7 into pre-drill holes: - Using Phillips screwdriver to attach Screws 7 at middle hole of hinges for both top & bottom hinges.
- Page 18 Assembly Model # AXCCON-04RNAB Step 12 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 6 for each Shelf Cabinet G in desired location. 2. 2 Shelf Supports 6 may be used on back top of each Shelf Cabinets G as a tipping restraint.
- Page 19 Assembly Model # AXCCON-04RNAB Step 13 1. Insert assembled drawers into drawer glides on assembled cabinet.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
