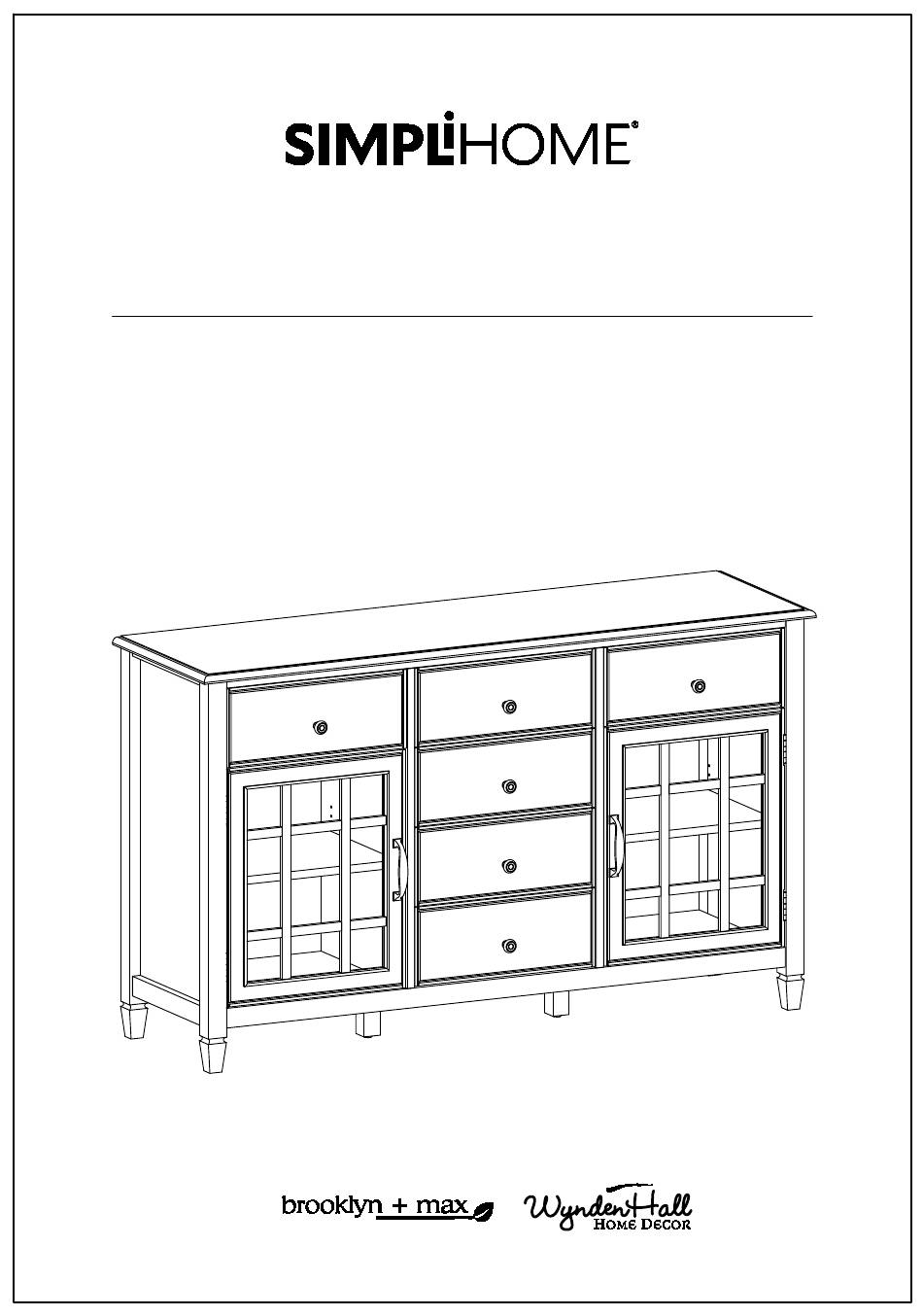

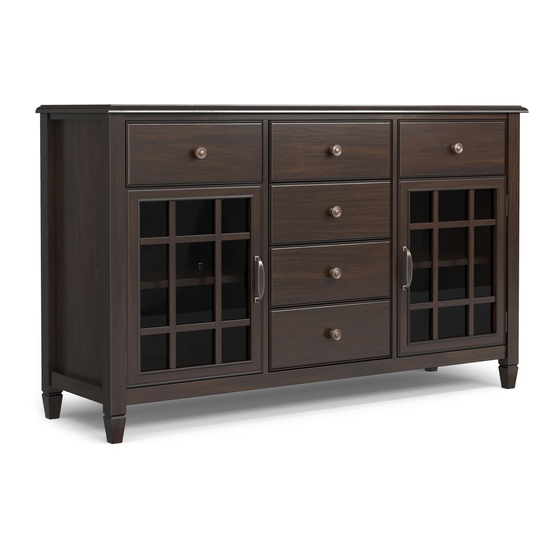

- Page 1 Connaught / Hampshire / Somerset Sideboard Buffet Model # AXCCON-11...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCCON-11 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM FRAME LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 Warning Label RIGHT BACK PANEL LEFT BACK PANEL MIDDLE BACK PANEL QTY 1 QTY 1 QTY 1... -
Page 8: Drawer Bottom
Pre-Assembly Information Model # AXCCON-11 Part Description SHELF BOTTOM SUPPORT LEG DOOR QTY 2 QTY 2 QTY 2 RIGHT DRAWER SIDE DRAWER FRONT LEFT DRAWER SIDE QTY 6 QTY 6 QTY 6 DRAWER BACK DRAWER BOTTOM QTY 6 QTY 6... - Page 9 Pre-Assembly Information Model # AXCCON-11 Hardware Description WASHER ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK PIN M6 X 35mm M6 X 30mm CAM LOCK Ø6.5 / Ø16 X 1mm QTY 12 QTY 36 QTY 12 QTY 24 SETS WOOD DOWEL HANDLE HANDLE ALLEN KEY...
- Page 10 Components - Key Diagram Model # AXCCON-11...
- Page 11 Components - Key Diagram Model # AXCCON-11 Step 1 1. Attach four Cam Lock Pins 4 into pre-drilled holes on back of Drawer Front I . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1.
- Page 12 Components - Key Diagram Model # AXCCON-11 Step 3 1. Slide Drawer Bottom L firmly into slots on Drawer Sides JL , JR and Drawer Front I . 2. Align Drawer Back K with Drawer Bottom L and press firmly into slot . 3.
- Page 13 Components - Key Diagram Model # AXCCON-11 Step 4 1. Use Phillips screwdriver to attach Handle 6 to Drawer Front I . Repeat Step 1-4 for the rest drawers.
- Page 14 Assembly Model # AXCCON-11 Step 5 1. Insert Wood Dowels 8 into guide holes on Sides BL , BR , Dividers DL , DR and Bottom Frame C . 2. Use rubber mallet to tap Dowels 8 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 15 Assembly Model # AXCCON-11 Step 6 1. Align Wood Dowels with guide holes and attach Dividers DL , DR to Bottom Frame C . 2. Use six Allen Key Screws 3 to attach Bottom Frame C through guide holes. 3. Use Allen Key 5 to tighten Bolts. Do not over-tighten.
- Page 16 Assembly Model # AXCCON-11 Step 7 1. Align Bottom Support Leg F with pre-drilled holes on back of Bottom Frame C . Use Phillips Screwdriver to tighten four Phillips Screws 12 . Step 8 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom Frame C .
- Page 17 Assembly Model # AXCCON-11 Step 9 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Top A . 2. Use three Allen Key Bolts 1 and Washer 2 to attach each Side BL , BR through guide holes.
- Page 18 Assembly Model # AXCCON-11 Note: Step 10 Warning Label 1. Use Phillips Screws Round Head 13 to attach Back Panels EL , ER , E through guide holes from Back Panels to the back of cabinet . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
- Page 19 Assembly Model # AXCCON-11 First Step Step 11 Last Step ( after adjust the door )
- Page 20 Assembly Model # AXCCON-11 Step 12 1. Attach Magnets 9 to Dividers DL , DR using Phillips Screws 10 into pre-drilled holes on Dividers DL , DR . 2. Attach Magnet Plates 9 using Phillips Screws 10 into pre-drilled holes on Doors G . 3.
- Page 21 Assembly Model # AXCCON-11 Step 13 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 14 for each Cabinet Shelf H in desired location. 2. Two Shelf Supports 14 may be used on back top of each Cabinet Shelf H as a tipping restraint.
- Page 22 Assembly Model # AXCCON-11 Step 14 1. Insert assembled drawers into glides on assembled sideboard. Note: Leveler on bottom of leg can be adjusted if floor is uneven.
- Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 15 NOTE: The screwdriver is not included in the hardware pack.
- Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
