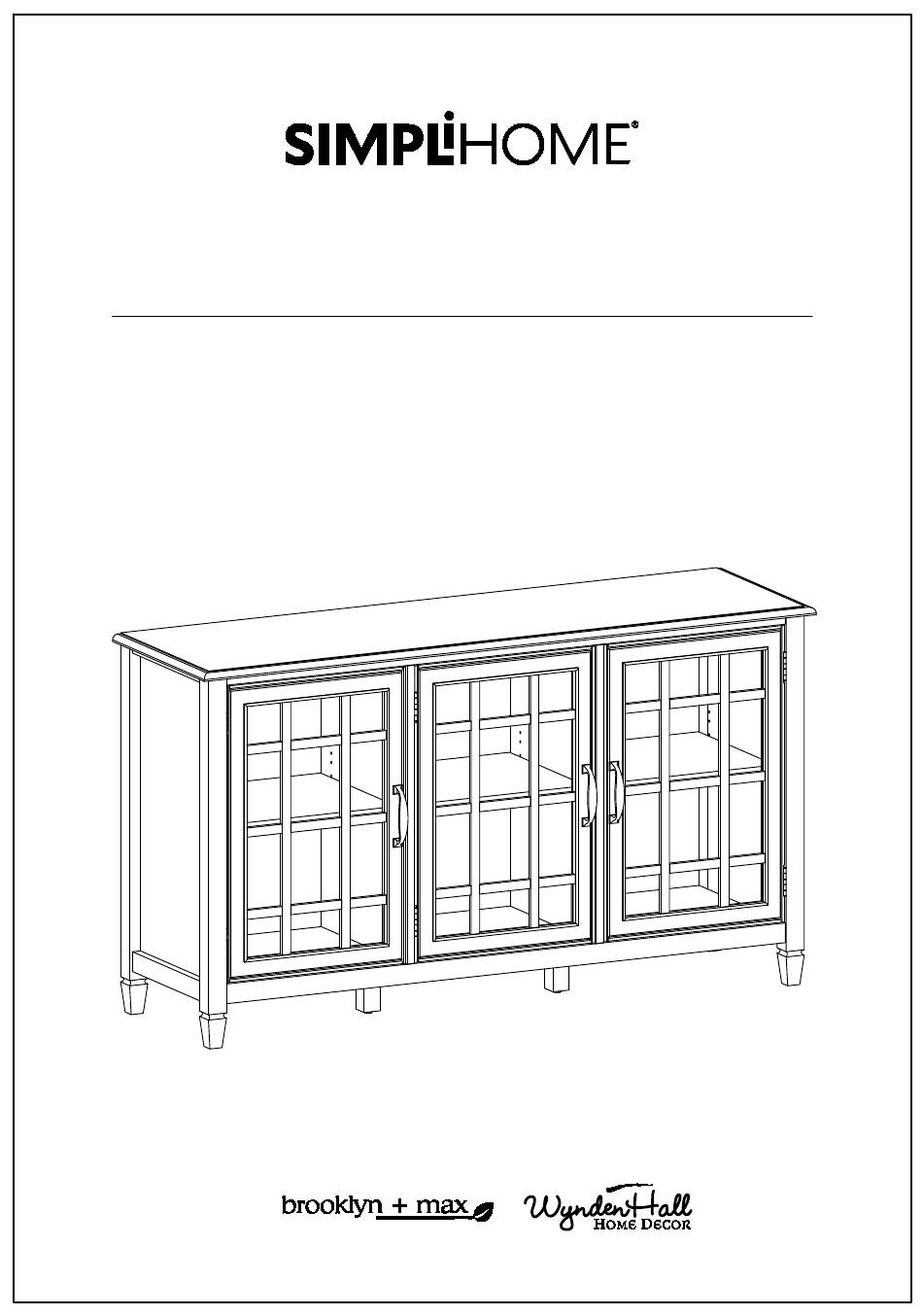

- Page 1 Connaught / Hampshire / Somerset Wide Storage Cabinet Model # AXCCON39-BL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # AXCCON39-BL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM FRAME QTY 1 QTY 1 QTY 1 SHELF LEFT BACK PANEL DOOR QTY 3 QTY 1 QTY 3 Warning Label RIGHT BACK PANEL MIDDLE BACK PANEL... - Page 8 Pre-Assembly Information Model # AXCCON39-BL Hardware Description WOOD DOWEL WASHER ALLEN KEY BOLT ALLEN KEY SCREW Ø8 X 30mm M6 X 35mm M6 X 30mm Ø6.5 / Ø16 X 1mm QTY 8 QTY 12 QTY 12 QTY 12 PHILLIPS SCREW HANDLE ALLEN KEY M3 X 15mm...
- Page 9 Components - Key Diagram Model # AXCCON39-BL...
- Page 10 Assembly Model # AXCCON39-BL Step 1 1. Insert Wood Dowels 1 into guide holes on Sides BL , BR , Dividers CL , CR and Bottom Frame D . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCCON39-BL Step 2 1. Align Wood Dowels with guide holes and attach Dividers CL , CR to Bottom Frame D . 2. Use six Allen Key Screws 4 to attach Bottom Frame D through guide holes. 3. Use Allen Key 5 to tighten Bolts. Do not over-tighten.
- Page 12 Assembly Model # AXCCON39-BL Step 3 1. Align Bottom Support Leg H with pre-drilled holes on back of Bottom Frame D . Use Phillips Screwdriver to tighten four Phillips Screws 10 . Step 8 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom Frame D .
- Page 13 Assembly Model # AXCCON39-BL Step 4 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Top A . 2. Use three Allen Key Bolts 2 and Washer 3 to attach each Side BL , BR through guide holes.
- Page 14 Assembly Model # AXCCON39-BL Note: Step 5 Warning Label 1. Use Phillips Screws Round Head 11 to attach Back Panels GL , GR , G through guide holes from Back Panels to the back of cabinet . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten.
- Page 15 Assembly Model # AXCCON39-BL First Step Step 6 Last Step ( after adjust the door )
- Page 16 Assembly Model # AXCCON39-BL Step 7 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnets 7 to Dividers CL , CR using Phillips Screws 8 into pre-drilled holes on Dividers CL , CR . 2. Attach Magnet Plates 7 using Phillips Screws 8 into pre-drilled holes on Doors E . 3.
- Page 17 Assembly Model # AXCCON39-BL Step 8 shelf level 1 shelf level 2 shelf level 3 shelf support anti - tipping 1. Use four Shelf Supports 12 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 12 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 18 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 9 NOTE: The screwdriver is not included in the hardware pack.
- Page 19 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
