SIMPLIHOME brooklyn+max WyndenHall AXCCON-09A Manual

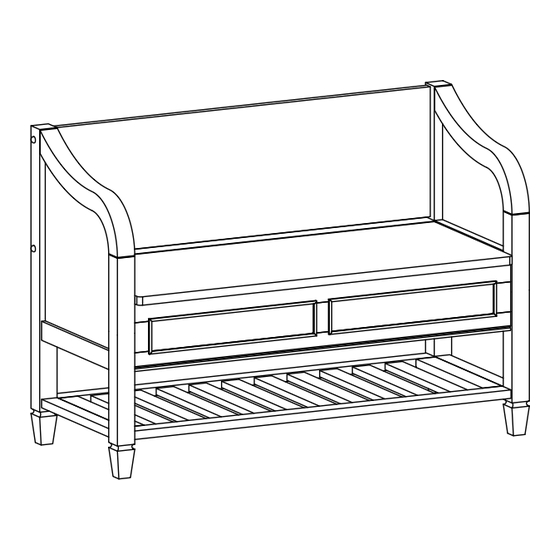

Connaught / hampshire / somerset entryway storage bench with shelf
Hide thumbs

Advertisement

Quick Links

Download this manual

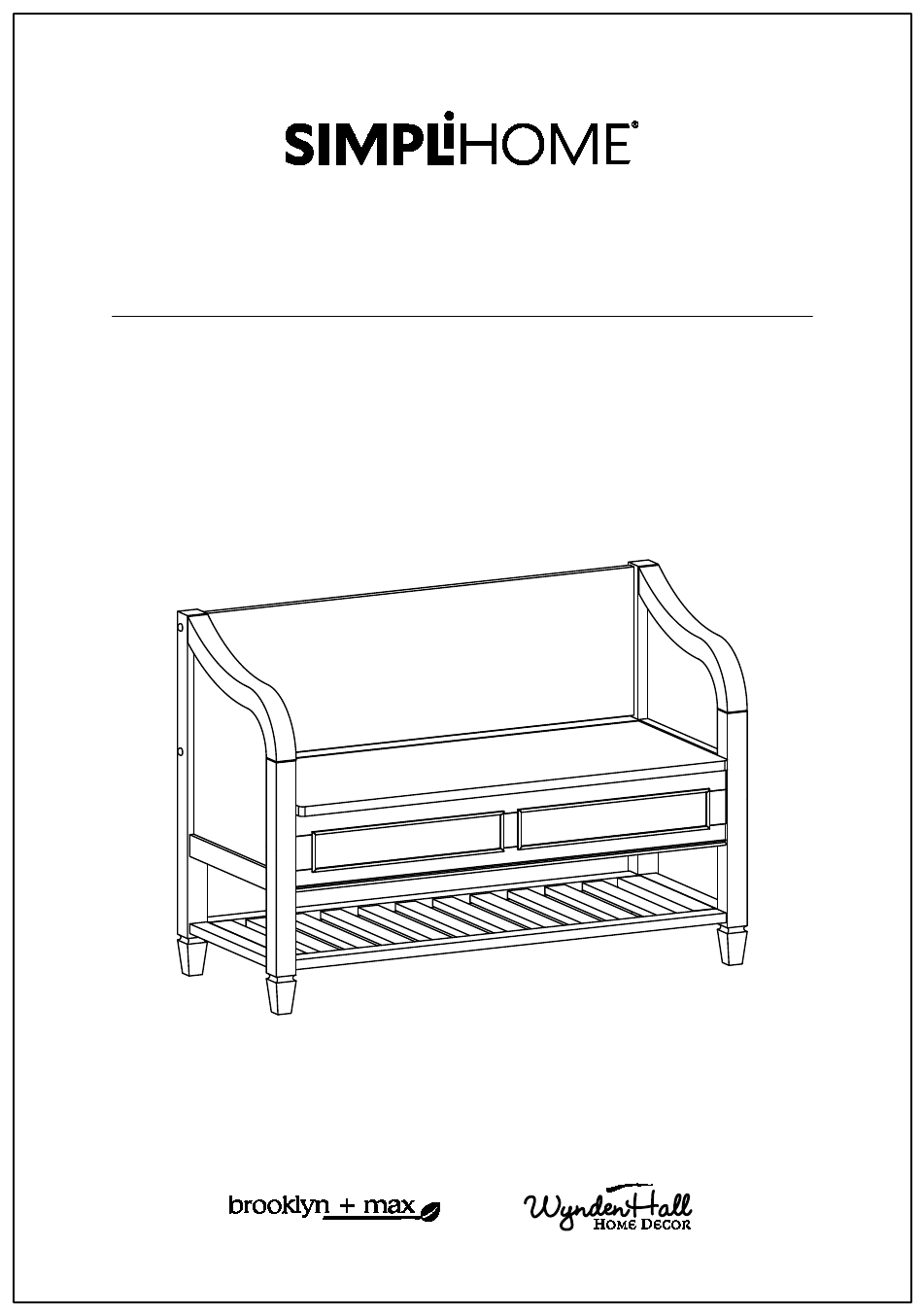

Connaught / Hampshire / Somerset
Entryway Storage Bench with Shelf
Model # AXCCON-09A
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn+max WyndenHall AXCCON-09A and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn+max WyndenHall AXCCON-09A

Summary of Contents for SIMPLIHOME brooklyn+max WyndenHall AXCCON-09A

  • Page 1 Connaught / Hampshire / Somerset Entryway Storage Bench with Shelf Model # AXCCON-09A...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCCON-09A Part Description SEAT LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 FRONT DIVIDER BACK QTY 1 QTY 1 QTY 1 BACKREST BOTTOM PANEL BOTTOM FRAME QTY 1 QTY 1 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCCON-09A Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW CAM LOCK Ø8 X 30mm M6 X 30mm QTY 10 SETS QTY 14 QTY 8 ALLEN KEY BOLT ALLEN KEY LID SUPPORT M6 X 50mm QTY 1 QTY 1 QTY 4...
  • Page 9 Components - Key Diagram Model # AXCCON-09A...
  • Page 10 Assembly Model # AXCCON-09A Step 1 1. Attach Cam Lock Pins 3 into pre-drilled holes at Sides BL , BR and Front C . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert four Dowels 1 into guide holes on Front C . 4.
  • Page 11 Assembly Model # AXCCON-09A Step 2 1. Attach two Cam Lock Pins 3 into pre-drilled holes at Back D . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Dowels 1 into guide holes on Back D , Backrest F and Bottom Frame H . 4.
  • Page 12 Assembly Model # AXCCON-09A Step 3 1. Align Cam Lock Pins with guide holes and attach Divider E to Front C and Back D . 2. Insert four Cam Locks 3 into guide holes on Divider E . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 13 Assembly Model # AXCCON-09A Step 4 1. Align Wood Dowels with guide holes and attach Front C and Back D to Left Side BL . 2. Use two Allen Key Screws 2 to attach Front C and Back D to Left Side BL . 3.
  • Page 14 Assembly Model # AXCCON-09A Step 5 1. Slide Bottom Panel G firmly into slots on Font C , Back D and Left Side BL . 2. Use two Phillips Screws 7 to attach Bottom Panel G to Divider E . 3.
  • Page 15 Assembly Model # AXCCON-09A Step 6 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Bottom Frame H to Left Side BL . 2. Insert three Cam Locks 3 into guide holes on Bottom Frame H . 3.
  • Page 16 Assembly Model # AXCCON-09A Step 7 1. Align Wood Dowel with guide holes and attach Backrest F to Left Side BL . 2. Align Cam Lock Pins and Wood Dowels with guide holes and attach Right Side BR to parts C , D , F , G , H . 3.
  • Page 17 Assembly Model # AXCCON-09A Step 8 1. Use two Allen Key Bolts 4 to attach Left Side BL to Backrest F . 2. Use two Allen Key Screws 2 to attach each Front C and Back D to Right Side BR . 3.
  • Page 18 Assembly Model # AXCCON-09A Step 9 1. Attach Hinges on Seat A to Back D using Phillips Screws 8 into pre-drilled holes. 2. Use phillips screwdriver to tighten Screws. Do not over-tighten.
  • Page 19 Assembly Model # AXCCON-09A Step 10 1. Attach Lid Support 6 into pre-drilled holes of Seat A and Divider E using Phillips Screws Round Head 9 . 2. Use phillips screwdriver to tighten Screws. Do not over-tighten.
  • Page 20 Assembly Model # AXCCON-09A Step 12 1. Insert Bolt Caps 10 into exposed bolt holes on Sides BL , BR . 2. Use rubber mallet to tap Bolt Caps 10 into drilled holes securely.
