This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM
TO ALL LOCAL CODES. READ AND FOLLOW THE SAFETY INSTRUCTIONS BEFORE ATTEMPTING THIS
INSTALLATION.
Note to CATV installer: This reminder is provided to call the CATV system installer's attention to Article 820-
40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable entry into the room as
practical.
WARNING: To avoid the hazards of fire or electric
shock, DO NOT expose this TV to rain or
moisture.
INSTALL ARM & TV
1. Remove pilfer proofing screw, PDIBHSCS252062.

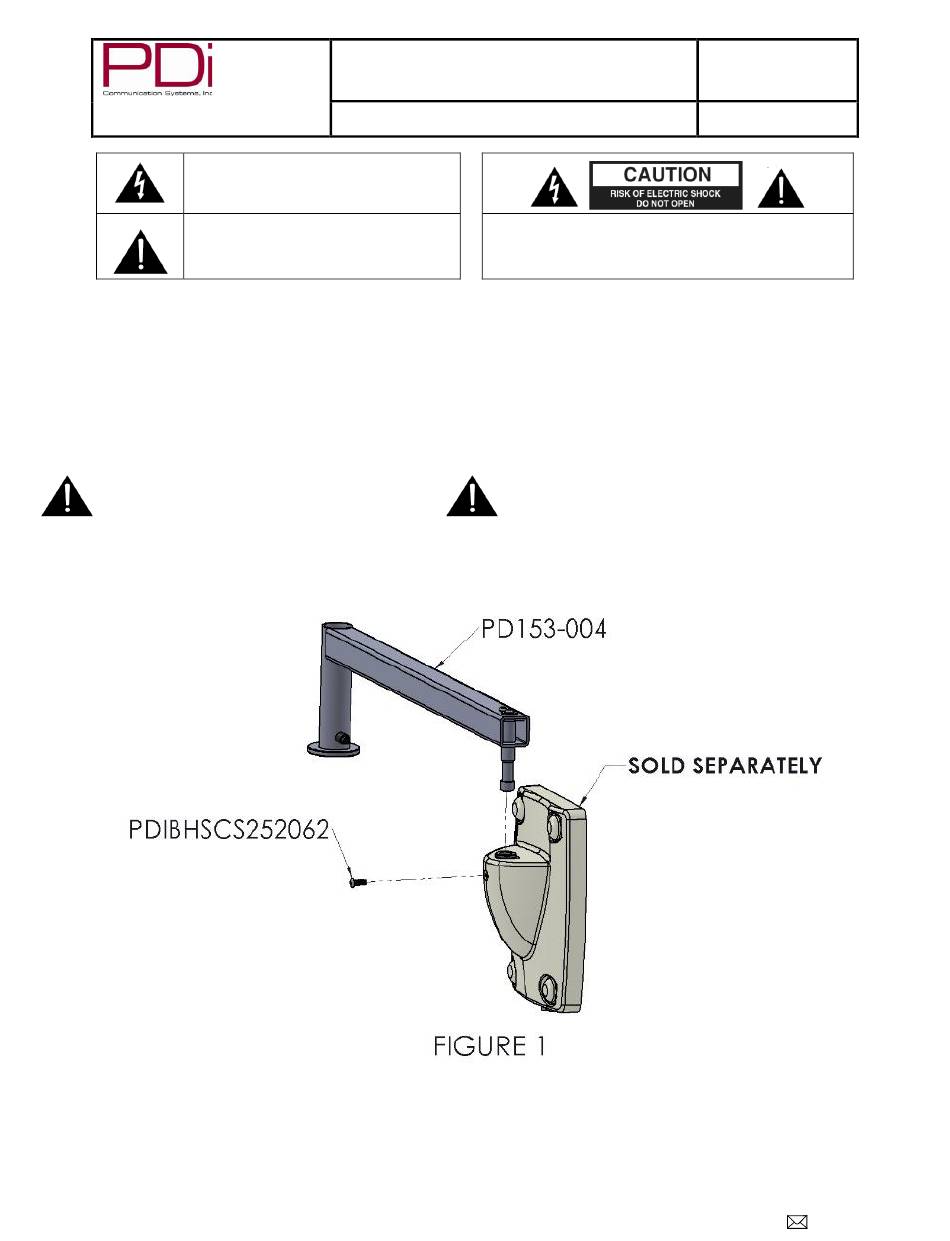

2. Place the horizontal boom's, PD153-004, base pin into the wall bracket. The base pin should seat snug in the wall
bracket (Figure 1).
3. Tighten the wall bracket pilfer screw, PDIBHSCS252062, (Figure 1).
4. Slip a slim washer, PDI-586, over the mounting flange as shown (Figure 2). Lubricate the shim washer using the
provided silicone grease, PD122-001.
5. Remove the four (4), ¼-20 hex head bolts from the swivel collar, PD188-013.
6. Starting at the wall bracket end of the horizontal boom, PD153-004, drop a fish wire through the horizontal arm
section. Be sure to route the wire through the second shim washer, PDI-586, and pull cables through. Feed the cables
through the arm according to document PD196-384.
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
MODEL NUMBER:
PD153-004-B, C, or G
Horizontal Boom
Installation and Safety Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
WARNING: OXYGEN ENVIRONMENT DO NOT use in
an oxygen tent or oxygen chamber. Such use may
cause a fire hazard.
Document Number:
PD196-206R5
Page 1 of 2
SERVICE PERSONNEL.
Advertisement
Related Manuals for PDi PD153-004-B
Summary of Contents for PDi PD153-004-B
- Page 1 (Figure 1). 3. Tighten the wall bracket pilfer screw, PDIBHSCS252062, (Figure 1). 4. Slip a slim washer, PDI-586, over the mounting flange as shown (Figure 2). Lubricate the shim washer using the provided silicone grease, PD122-001. 5. Remove the four (4), ¼-20 hex head bolts from the swivel collar, PD188-013.
- Page 2 Page 2 of 2 7. Hold the plastic shim washer, PDI-586, against the bottom of the arm section as shown (Figure 2). Be sure it does not overlap the swivel collar. Lubricate the shim washer using the provided silicone grease, PD122-001. Attach the arm assemble to the horizontal boom, PD153-004, using the split collar, PD188-013, and four (4) ¼-20 hex head bolts with...
