PDi PD168-086 Installation Instructions

Scope:

To Mount a PD168-086 J-Hook Mount to a 100x100 VESA, 100x200 VESA or 200x200 VESA TV in a PDI-179 or PDI-179AV wall
mount or to mount a PD168-087 J-Hook Mount to a 400x400 VESA TV in a PDI-179 or PDI-179AV wall mount.
Notes: The maximum capacity for this mount is 55 pounds. This mount cannot be used with a PDI-A55A TV, contact PDi using
information at the end of the document for questions. The TVs used in the graphics are used as reference only and are not included
with the kits listed.

Tool List:

1. P1 or P2 Phillips Screwdriver
1/8" Hex Wrench
2.
3. Safety Glasses/Goggles

Safety Steps:

1. Always wear safety glasses/goggles to prevent injury from debris.
2. Follow the installation/removal instructions for your existing products.

VESA Pattern Chart:

PDi TV VESA Pattern (mm)
PDI-A24 100x100
PDI-A32 100x200
PDI-A43 200x200
PDI-A55 400x400
PD168-086 Installation Instructions
Bill of Material:
Item Part Number
1 PD168-086
2 PDIPPHMSM6X110
Procedure:
Step 1:
Mount the wall mount, PDI-179 or PDI-179AV, to the wall following the installation instructions included with the mount, (PD196-047
or PD196-396).
Step 2:

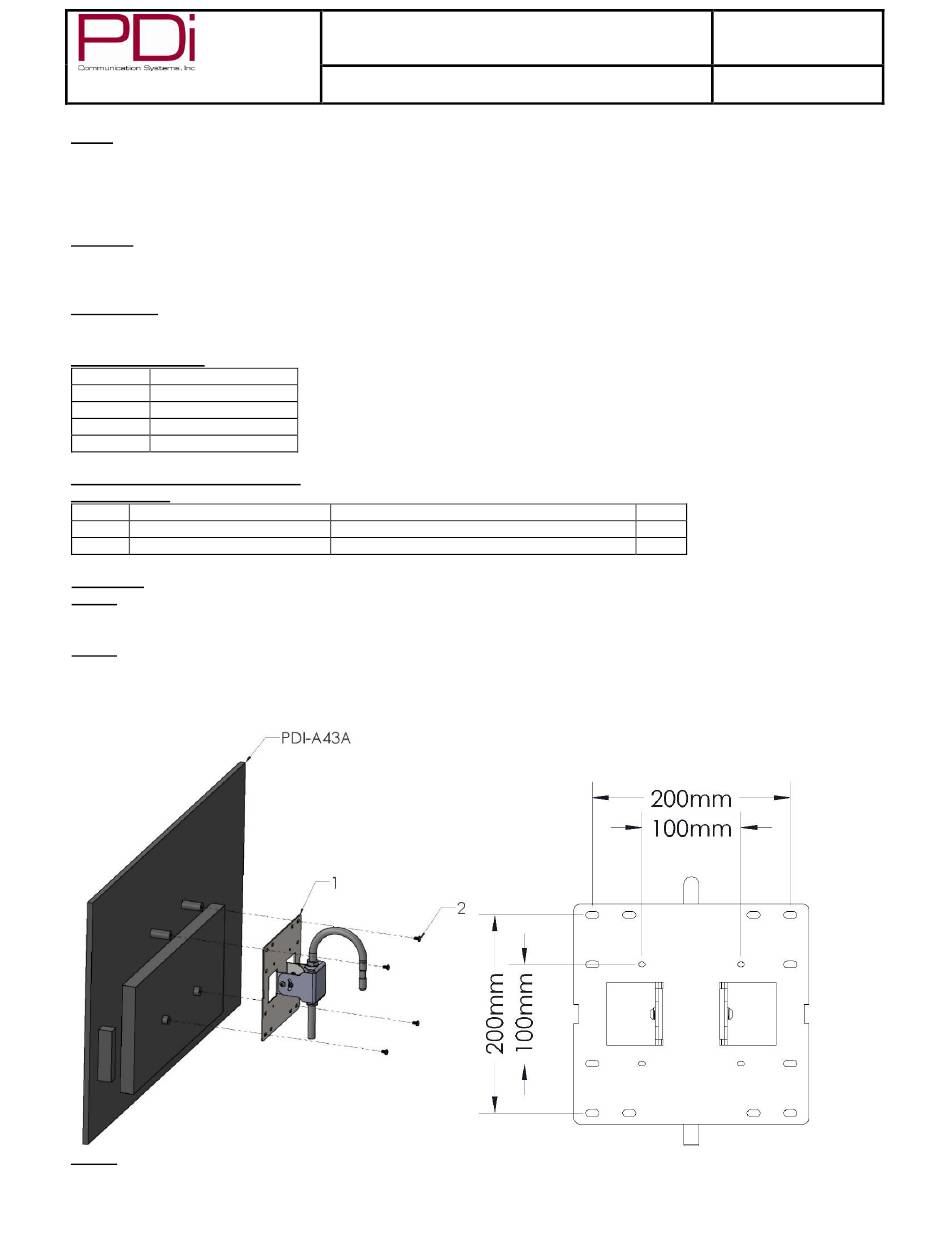

Attach the J-Hook mount, PD168-086, (#1) to the TV using four (4) screws, PDIPPHMSM6X110, for PDi TVs with a 100x200 VESA
or a 200x200 VESA as shown below. Be sure to align the correct slots on the J-Hook mount, PD168-086, with the VESA pattern on
the back of the TV, see reference dimensions below.
Note: Use customer supplied M-4 screws to mount a PDi TV with a 100x100 VESA.
Step 3:
Seat the J-Hook Mount, PD168-086, (#1) into the wall mount, PDI-179 or PDI-179AV, and tighten the pilfer proof screw.
MODEL NUMBER:
PD168-086 & PD168-087
Installation Instructions
Description
J-Hook Articulating Mount
Screw, Phillips Pan Head, M6-1 x 10mm
Document Number:
PD196-441R1
Page 1 of 2
QTY
1
4
